Section 584 (Cooling System): Thermostat: Components

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

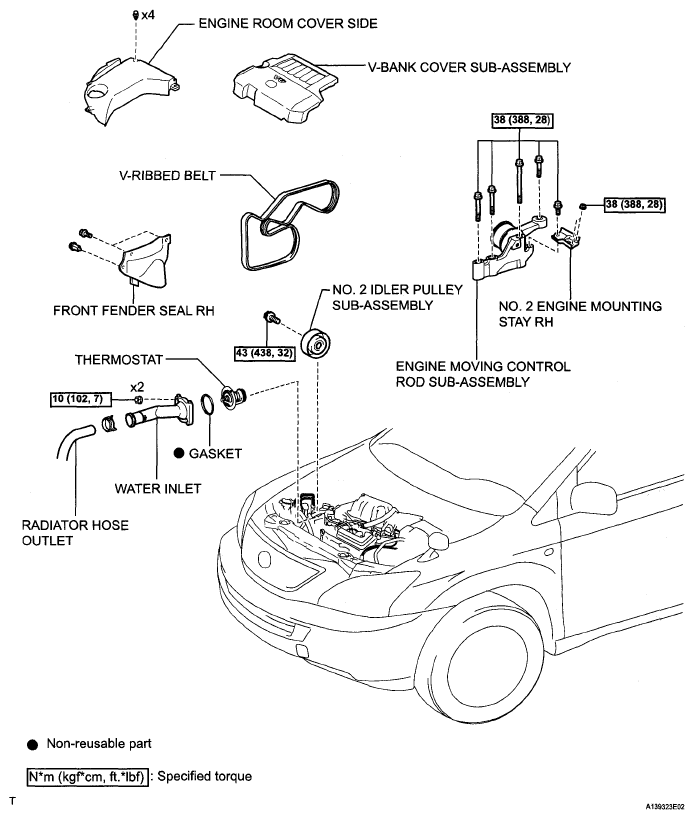

Fig 1: Identifying Thermostat Replacement Components With Torque Specifications
