Vane Pump: Installation

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL VANE PUMP ASSEMBLY
1. Temporarily install the bolt to the vane pump assembly.

  Fig 1: Identifying Vane Pump Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the vane pump assembly.
3. Using SST, install bolt (B) and tighten the 2 bolts.
  SST 09249-63010

  Torque: Without SST 43 N*m (439 kgf*cm, 32 ft.*lbf)

  With SST 29 N*m (294 kgf*cm, 21 ft.*lbf)
  NOTE:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is accurate when SST is parallel to the torque wrench.

    Fig 2: Identifying Torque Wrench Length With Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT POWER STEERING FLUID PRESSURE SWITCH CONNECTOR
1. Connect the connector to the power steering fluid pressure switch.

  Fig 3: Identifying Power Steering Fluid Pressure Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PRESSURE FEED TUBE ASSEMBLY
1. Install a new gasket to the pressure feed tube assembly.
2. Temporarily connect the pressure feed tube assembly to the vane pump assembly with the union bolt.
3. Install the pressure feed tube assembly clamp with the bolt.
  Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

  NOTE: Install the pressure feed tube assembly clamp in the correct position.
4. Fully tighten the union bolt.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

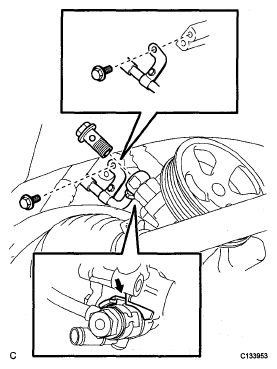

  Fig 4: Identifying Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Make sure that the stopper of the pressure feed tube assembly contacts the vane pump assembly securely.
CONNECT NO. 1 FLUID RESERVOIR TO PUMP HOSE
1. Connect the No. 1 fluid reservoir to pump hose to the vane pump assembly with the clip.

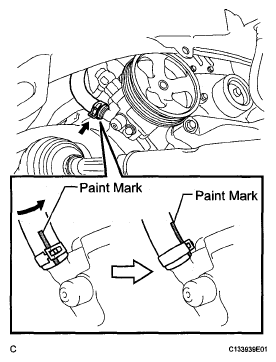

  Fig 5: Identifying No. 1 Fluid Reservoir To Pump Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - After installing the No. 1 fluid reservoir to pump hose with its paint mark and the claw of the clip facing the right of the vehicle as shown in the illustration, turn the hose counterclockwise 90 degrees so that the paint mark and claw face the front of the vehicle.
  - Install the No. 1 fluid reservoir to pump hose pushed all the way on.
INSTALL FAN AND GENERATOR V BELT
HINT:

(See INSTALLATION )
ADD POWER STEERING FLUID
BLEED POWER STEERING FLUID (See BLEEDING )
CHECK POWER STEERING FLUID LEVEL (See ON-VEHICLE INSPECTION )
CHECK FOR POWER STEERING FLUID LEAKS
INSTALL NO. 2 ENGINE UNDER COVER
INSTALL ENGINE UNDER COVER ASSEMBLY
INSTALL FRONT WHEEL RH
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
