Heated Oxygen Sensor: Installation

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OXYGEN SENSOR (for Bank 2)
    1. Temporarily tighten the oxygen sensor to the exhaust front pipe sub-assembly.
      NOTE: Do not damage the oxygen sensor.
      2. Fig 1: Tightening Oxygen Sensor To Exhaust Front Pipe Assembly Using SST
      G05271689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, fully tighten the oxygen sensor to the exhaust front pipe sub-assembly.

      SST 09224-00010

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  2. INSTALL EXHAUST FRONT PIPE ASSEMBLY (for Bank 2)  (See INSTALLATION )
  3. INSTALL NO. 3 EXHAUST FRONT PIPE SUB-ASSEMBLY (for Bank 2)
    1. Install the No. 3 exhaust front pipe sub-assembly with the 4 bolts, 2 nuts and 2 compression springs.

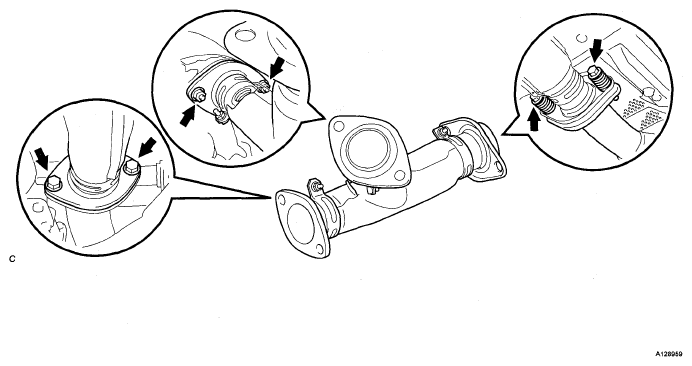

      Fig 2: Identifying Compression Springs, No. 3 Exhaust Front Pipe Sub-Assembly, Nuts & Bolts
      G05271685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL OXYGEN SENSOR (for Bank 1)
    1. Temporarily tighten the oxygen sensor to the No. 3 exhaust front pipe sub-assembly.
      NOTE: Do not damage the oxygen sensor.
      2. Fig 3: Tightening Oxygen Sensor To No. 3 Exhaust Front Pipe Sub-Assembly Using SST
      G05271691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, fully tighten the oxygen sensor to the No. 3 exhaust front pipe sub-assembly.

      SST 09224-00010

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      3. Fig 4: Identifying Oxygen Sensor Connector & Clamp
      G05271683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the oxygen sensor connector and clamp.
