Air Fuel Ratio Sensor: Installation
WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL AIR FUEL RATIO SENSOR (for Bank 1)
- Temporarily tighten the air fuel ratio sensor to the exhaust manifold converter sub-assembly.NOTE: Do not damage the air fuel ratio sensor.

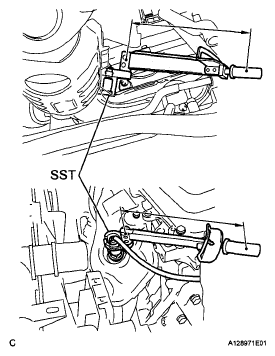

- Using SST, install the 2 air fuel ratio sensors to the front pipe assembly.
SST 09224-00010
Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)
- Connect the 2 air fuel ratio sensor connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Temporarily tighten the air fuel ratio sensor to the exhaust manifold converter sub-assembly.
- CHECK FOR EXHAUST GAS LEAKS
