On-Vehicle Inspection

Fig 1: Identifying Engine Oil Level Dipstick

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Warm up the engine, stop it and wait 5 minutes. The oil level should be between the dipstick's low level mark and full level mark.

   If the oil level is low, check for leakage and add oil up to the full level mark.

   NOTE: Do not fill above the full level mark.

1. Check the oil for deterioration, water contamination, discoloring or thinning.

   If the quality is visibly poor, replace the oil.

   Oil grade:

   Use ILSAC multigrade engine oil. SAE 5W-30 engine oil may be used. However, SAE 5W-30 is the best choice for good fuel economy and good starting in cold weather.

1. Disconnect the oil pressure switch connector.
2. Using a 24 mm deep socket wrench, remove the oil pressure switch.

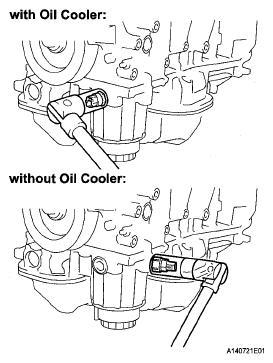

   Fig 2: Identifying Engine Oil Pressure Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

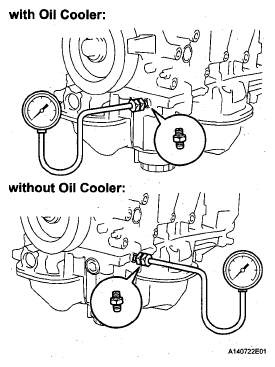

Fig 3: Identifying Oil Pressure Gauge With Adapter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil pressure gauge with adapter.

If the oil pressure is not as specified, check the oil pump (See INSPECTION  ).

1. Remove the oil pressure gauge.
Fig 4: Applying Adhesive To Oil Pressure Switch Threads
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply adhesive to 2 or 3 threads of the oil pressure switch.

   Adhesive:

   Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Fig 5: Identifying Engine Oil Pressure Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a 24 mm deep socket wrench, install the oil pressure switch.

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

   NOTE: Do not start the engine within 1 hour after installation.
4. Connect the oil pressure switch connector.
