Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

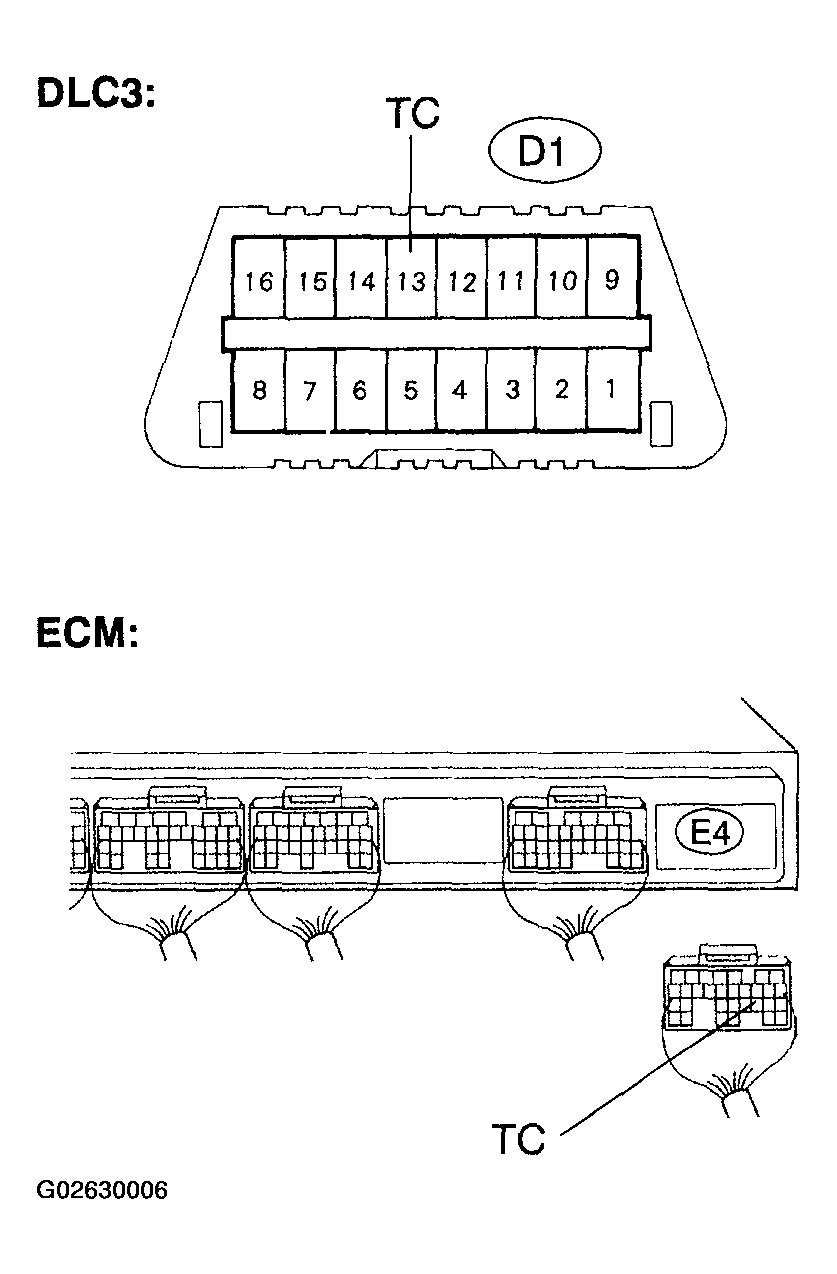

- CHECK WIRE HARNESS (DLC3 - ECM)
- Turn the ignition switch to the LOCK position.
- Disconnect the airbag sensor assy center connector.
- Measure the resistance according to the value (s) in SPECIFIED CONDITION DESCRIPTION
.
Standard:
SPECIFIED CONDITION DESCRIPTIONTester connection Condition Specified condition D1-13 (TC) - E4-20 (TC) Always Below 1 Ω
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE WIRE HARNESS
- OK: GO TO NEXT STEP

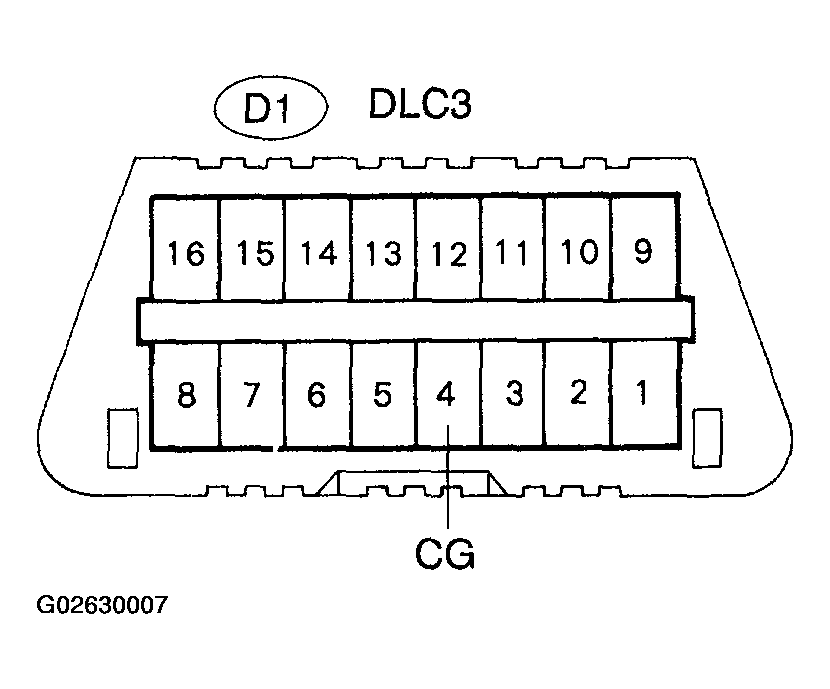

- CHECK WIRE HARNESS (CG of DLC3 - BODY GROUND)
- Measure the resistance according to the value (s) in SPECIFIED CONDITION DESCRIPTION
.
Standard:
SPECIFIED CONDITION DESCRIPTIONTester connection Condition Specified condition D1-4 (CG) - Body ground Always Below 1 Ω
- NG: REPAIR OR REPLACE WIRE HARNESS
- OK: GO TO NEXT STEP
- Measure the resistance according to the value (s) in SPECIFIED CONDITION DESCRIPTION
.

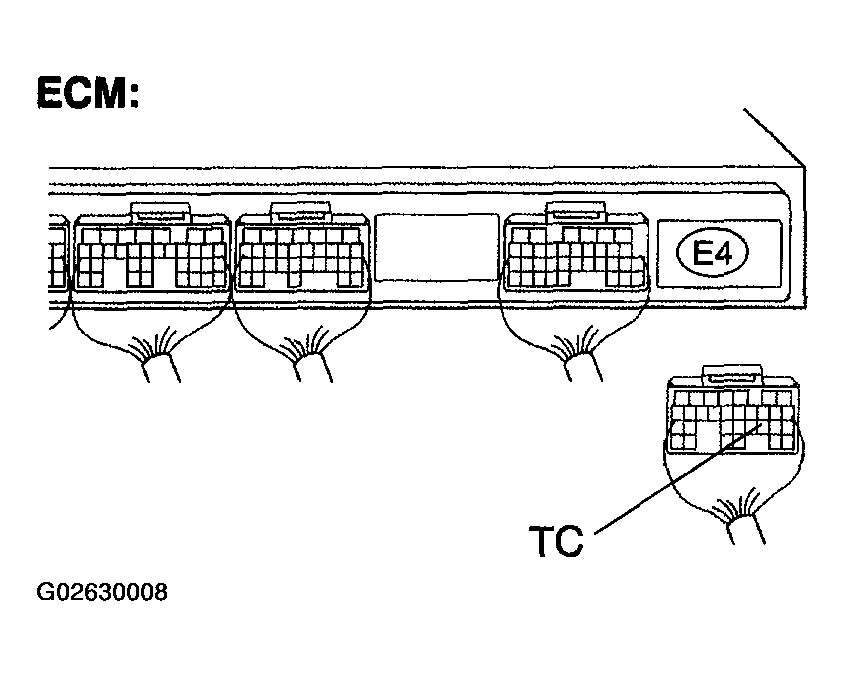

- CHECK WIRE HARNESS (TC of ECM - BODY GROUND)
- Measure the resistance according to the value (s) in SPECIFIED CONDITION DESCRIPTION
.
Standard:
SPECIFIED CONDITION DESCRIPTIONTester connection Condition Specified condition E4-20 (TC) - Body ground Always 1MΩ or Higher
- NG: REPAIR OR REPLACE WIRE HARNESS
- OK: GO TO NEXT STEP
- Measure the resistance according to the value (s) in SPECIFIED CONDITION DESCRIPTION
.
- REPLACE ECM
- Check the ECM.
Result:
A: Normal system code is output.
B: DTC is output.
C: DTC output mode is set.
- A: END
- B: GO TO INSPECTION PROCEDURE OF DTC OUTPUT (SEE DIAGNOSTIC TROUBLE CODE TABLE )
- C: REPLACE AIR BAG SENSOR ASSY CENTER (SEE REPLACEMENT )
- Check the ECM.
