Data List/Active Test

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

By accessing the DATA LIST displayed by the hand-held tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to shorten labor time.

Connect the hand-held tester to the DLC3.
Turn the ignition switch to the ON position.
Following the display on the tester screen, read the "DATA LIST".

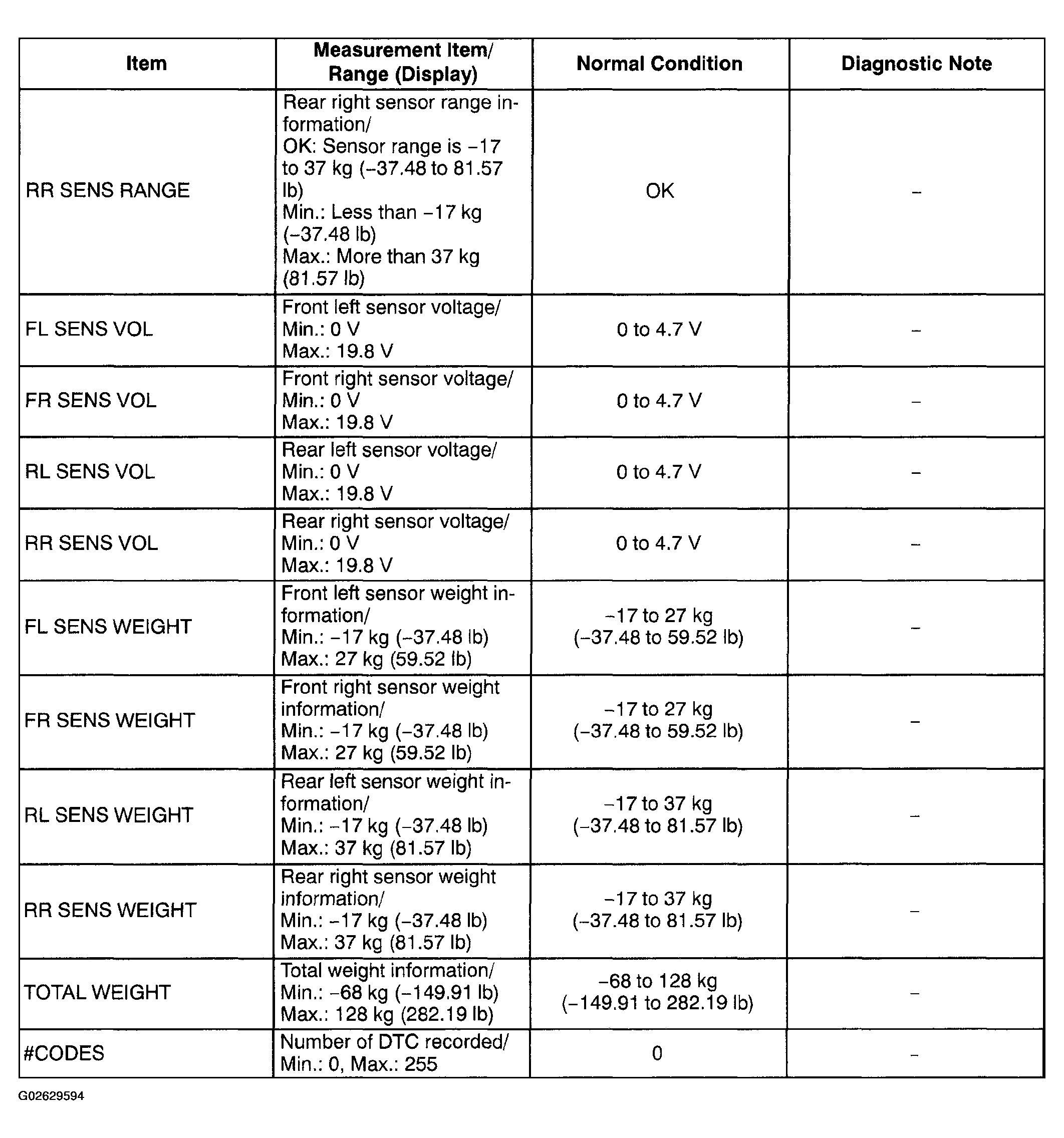

DATA LIST FOR AIRBAG SENSOR ASSY CENTER

Fig 1: Data List Table For Airbag Sensor Assy Center
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

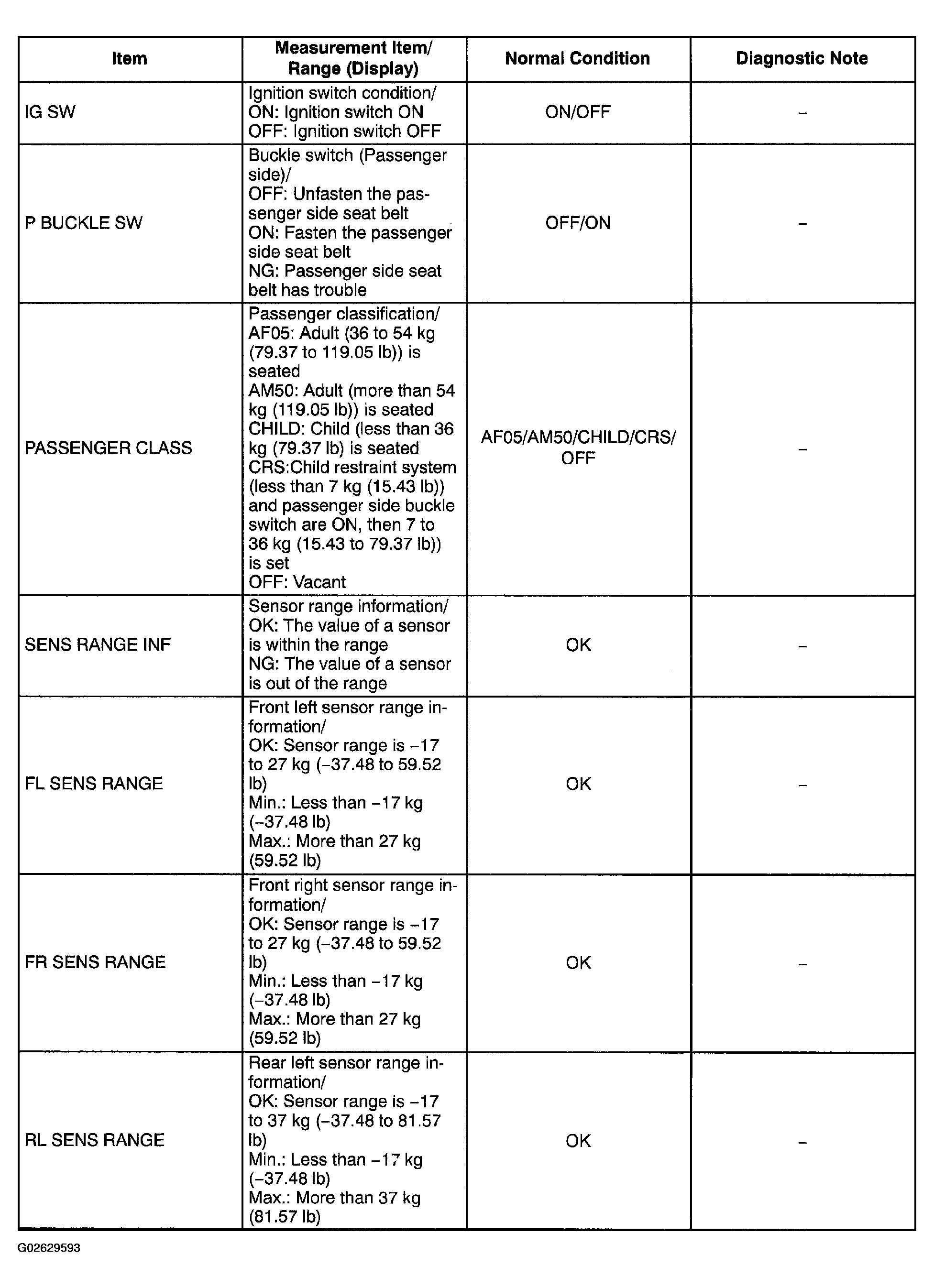

DATA LIST FOR OCCUPANT CLASSIFICATION ECU

Fig 2: Data List Table For Occupant Classification ECU (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

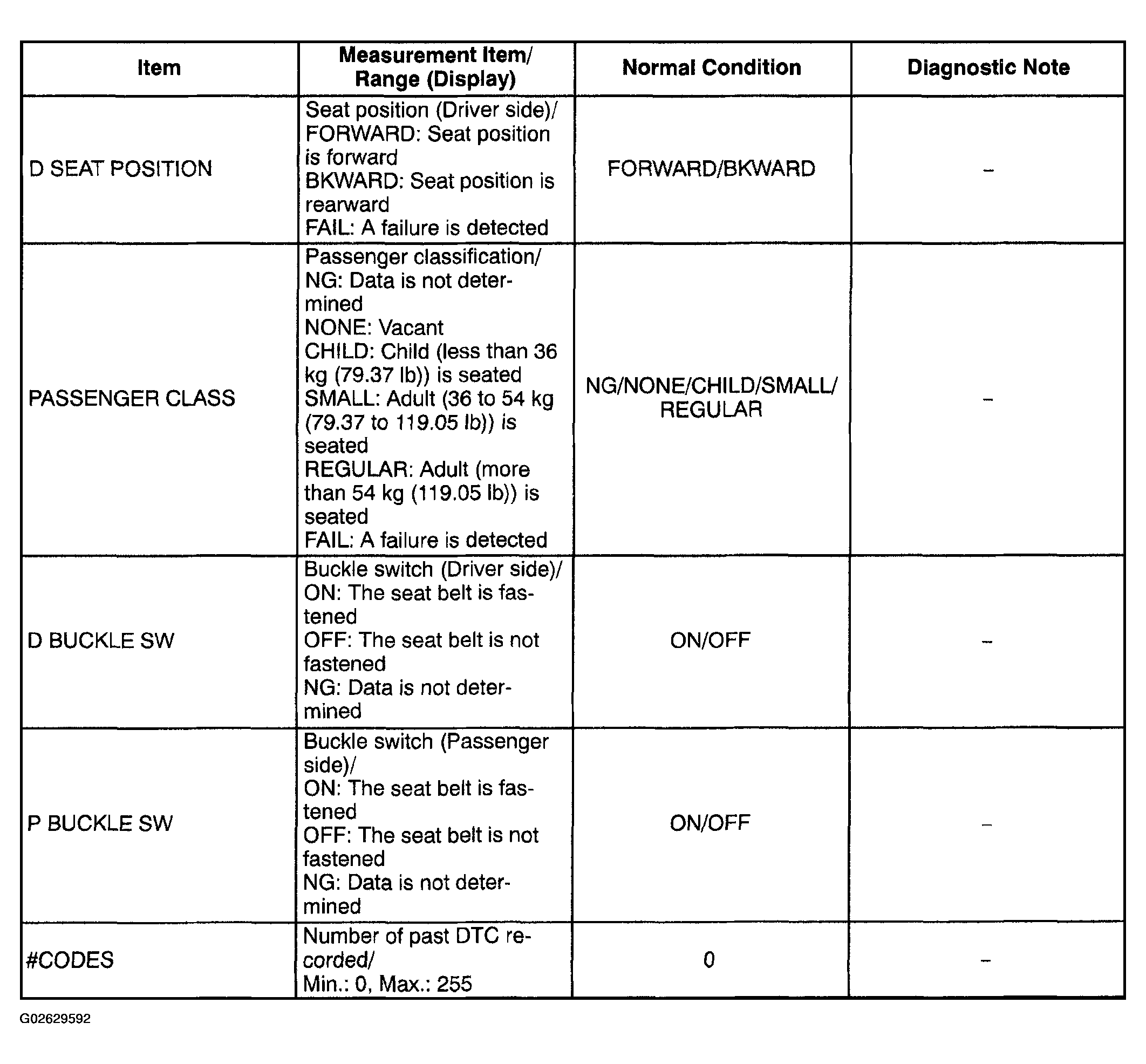

Fig 3: Data List Table For Occupant Classification ECU (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
