Fuel Pump Control Circuit: Wiring Diagram

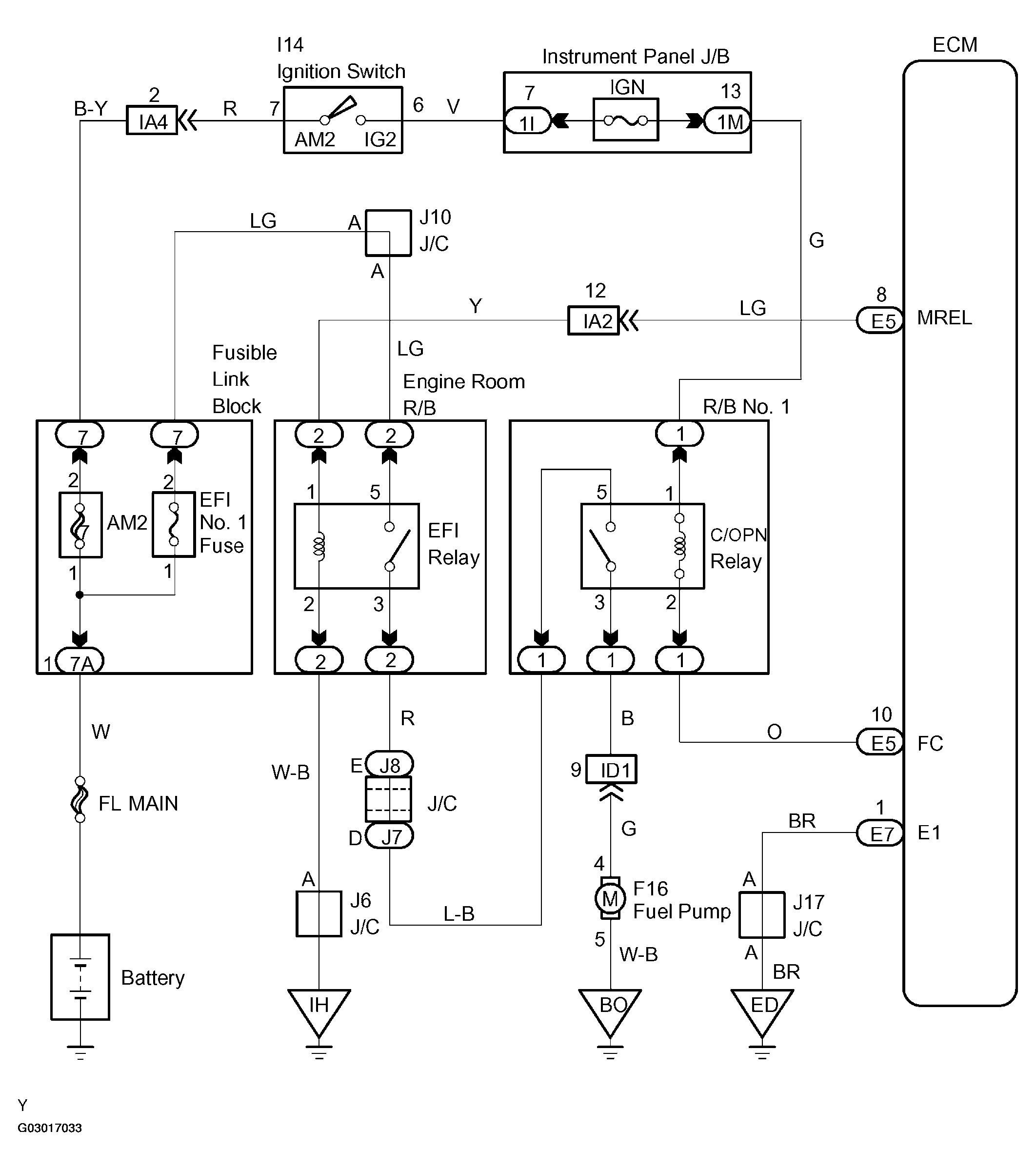

Fig 1: Fuel Pump Control Circuit Diagram

G03017033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
