EVAP Inspection Procedure: Wiring Diagram

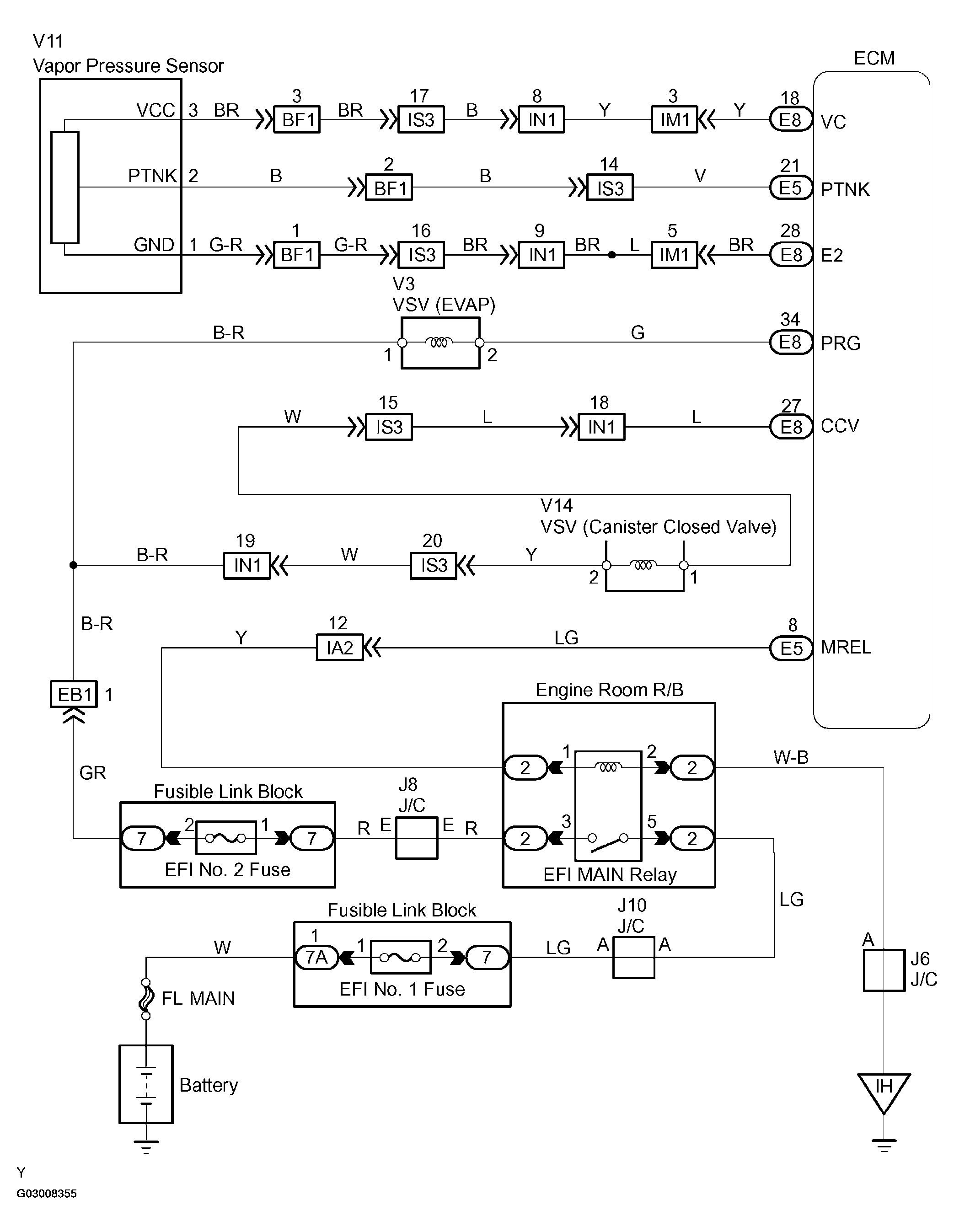

Fig 1: Vapor Pressure Sensor Wiring Diagram

G03008355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
