Active Control Engine Mount: Wiring Diagram

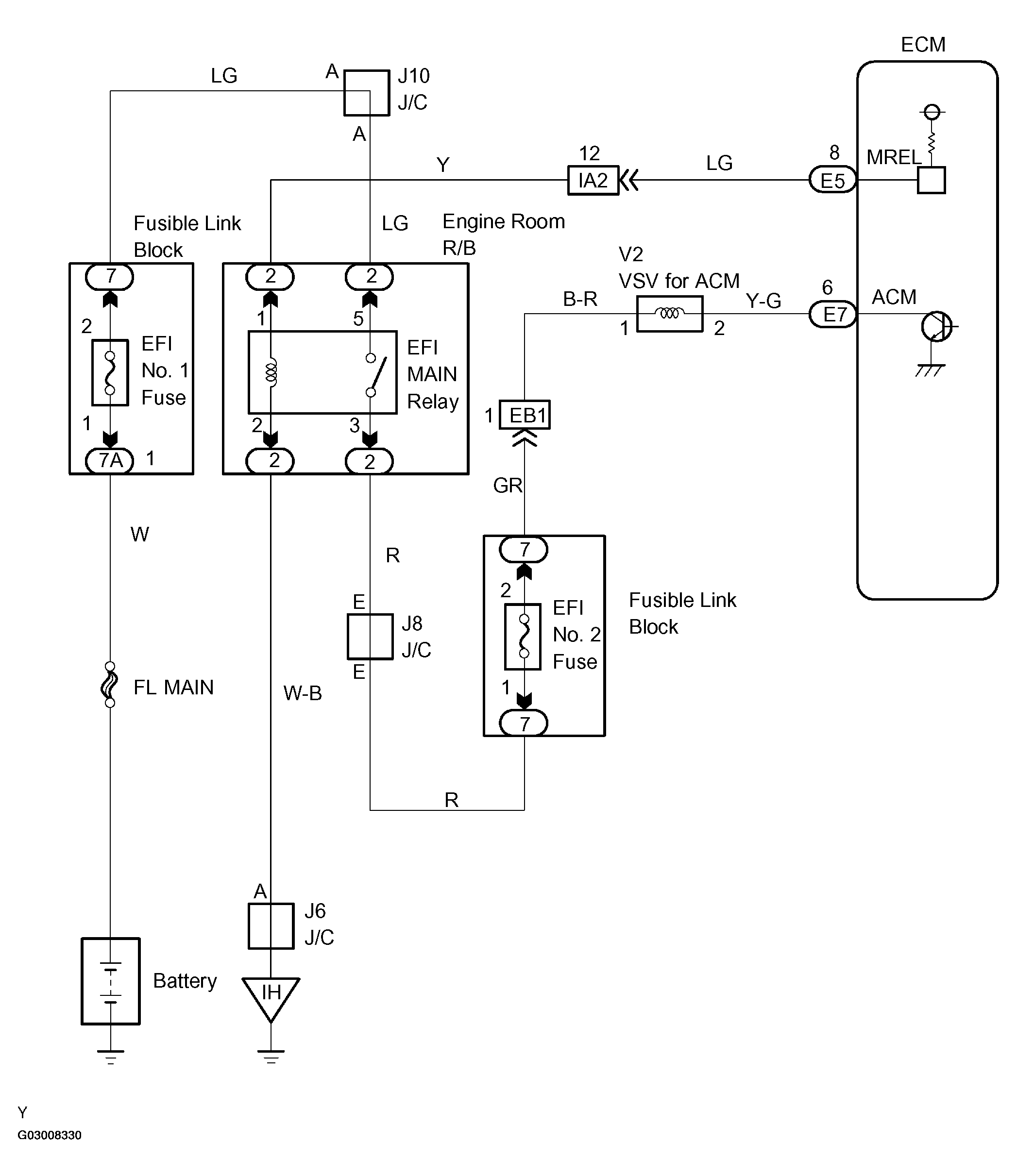

Fig 1: Active Control Engine Mount Wiring Diagram

G03008330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
