ACIS Control Circuit: Wiring Diagram

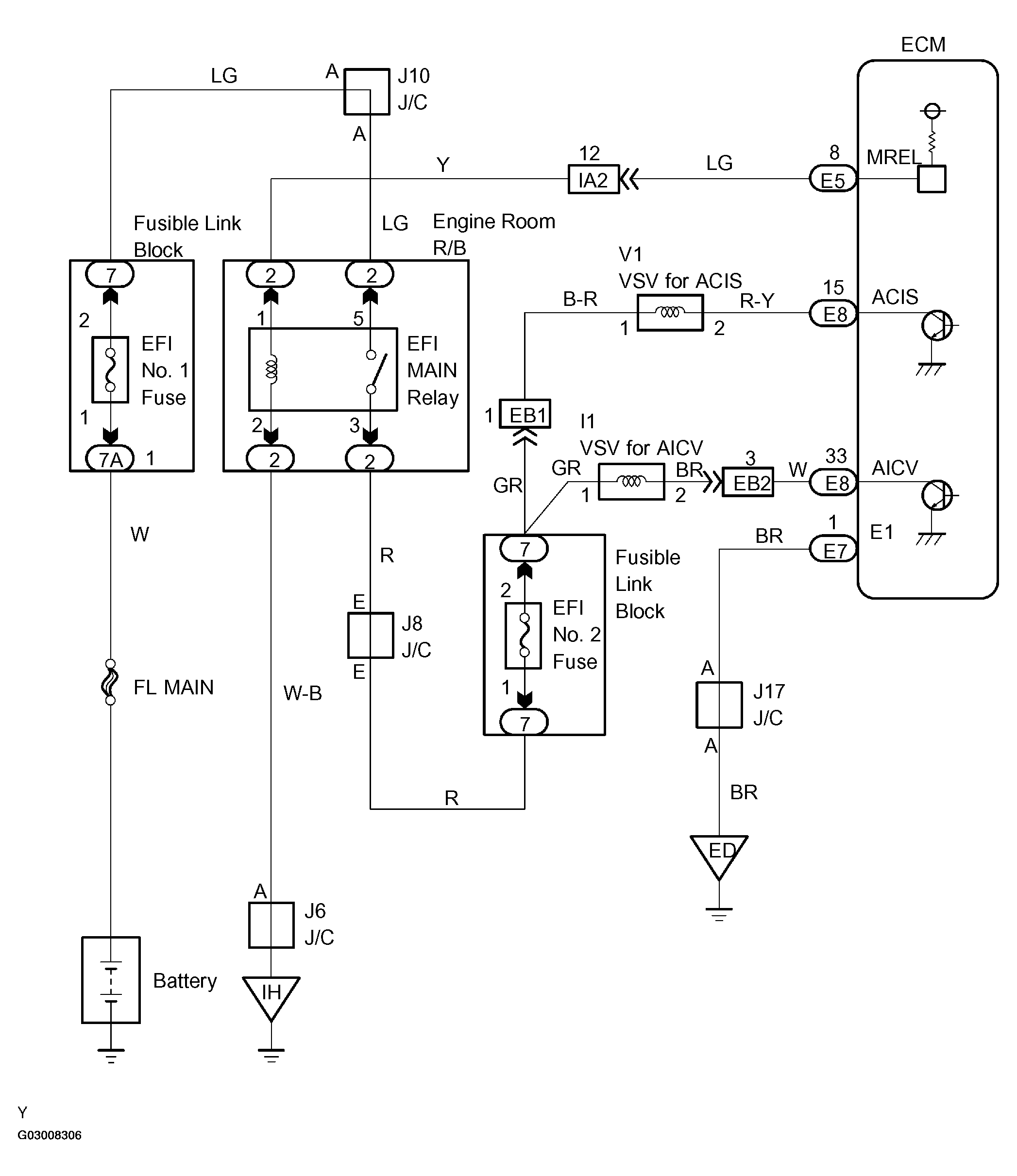

Fig 1: ACIS Control Circuit Diagram

G03008306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
