Fuel Injector ASSY (3MZ-FE): Components

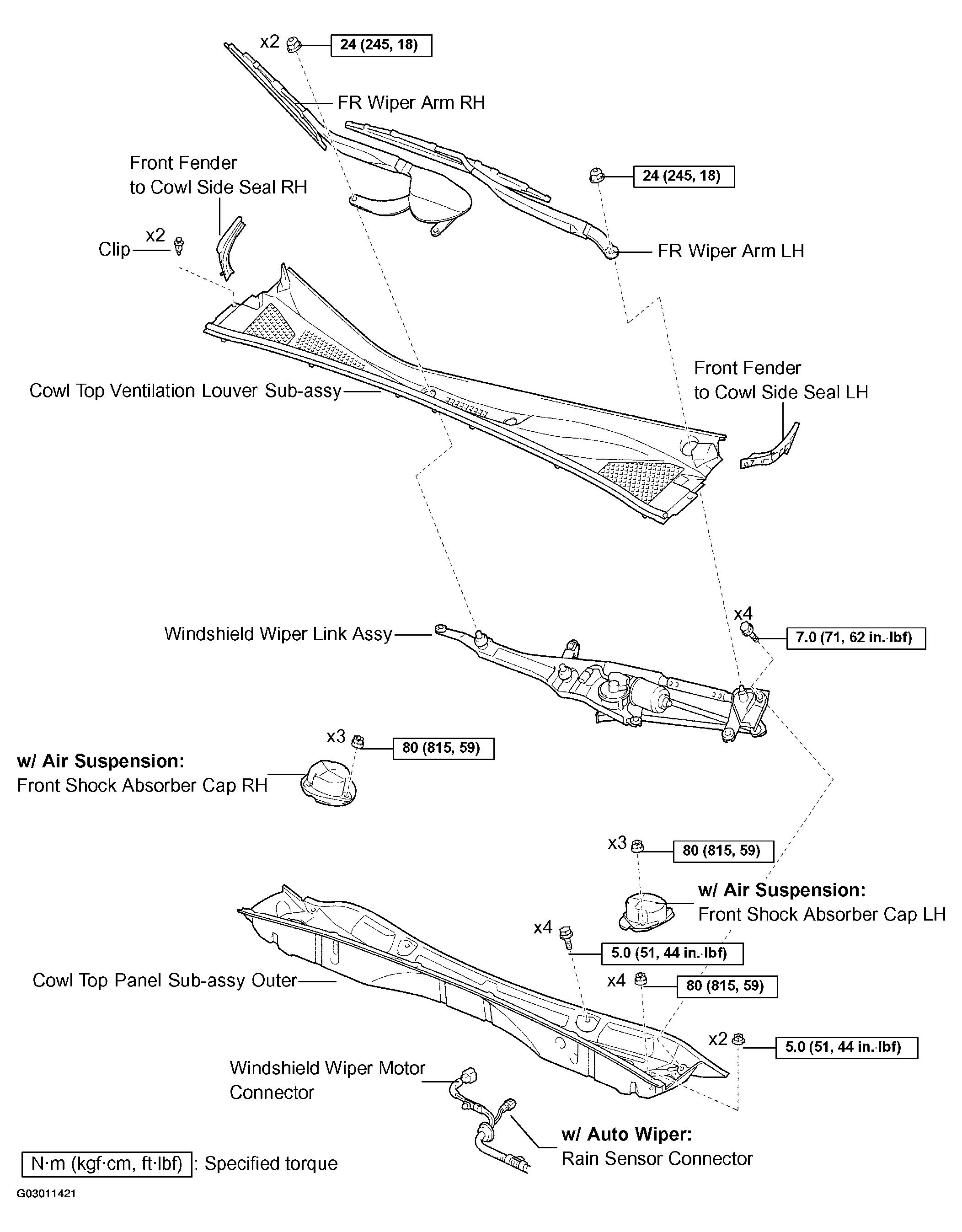

Fig 1: Exploded View Of Components With Specified Torque (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

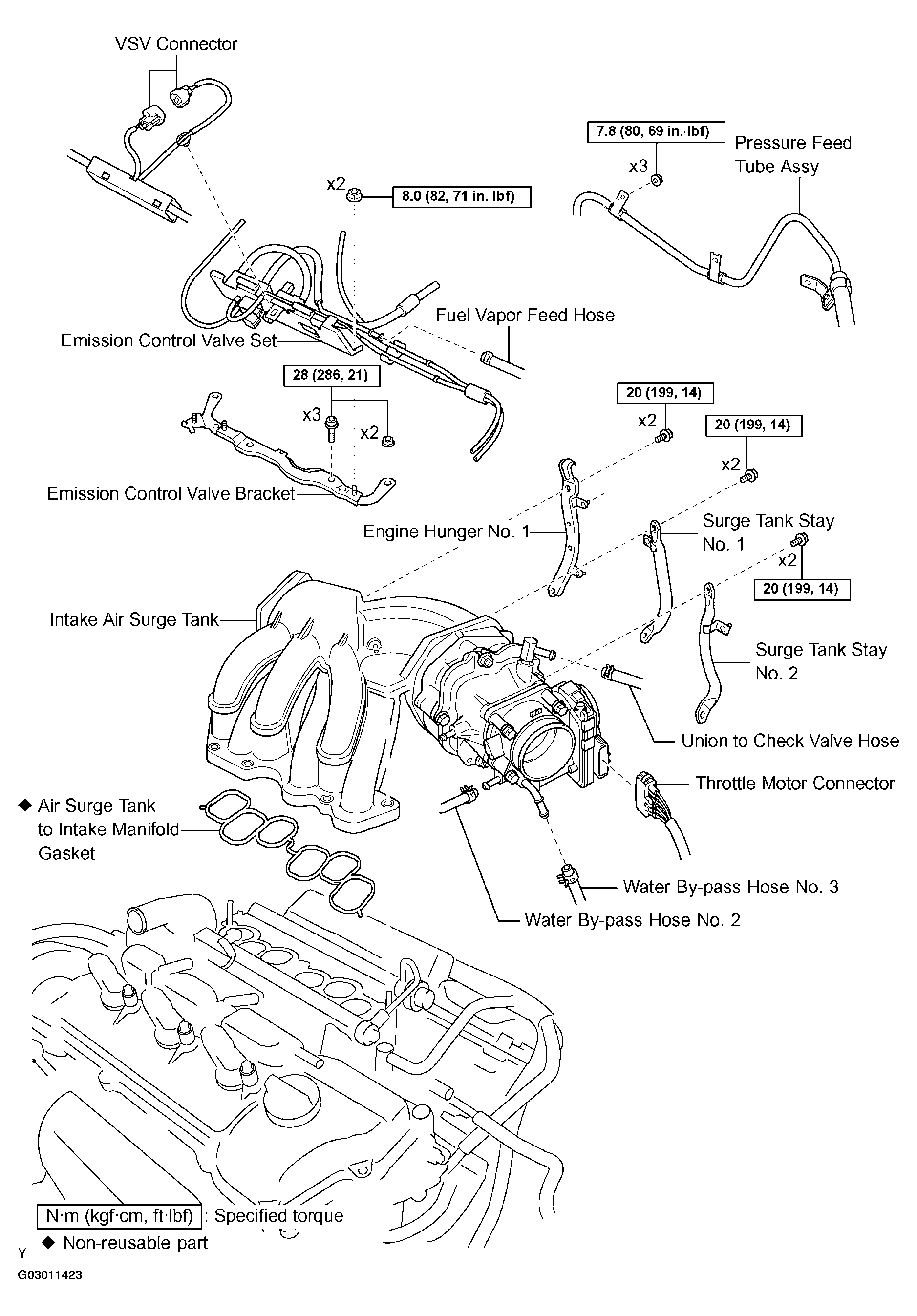

Fig 2: Exploded View Of Components With Specified Torque (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

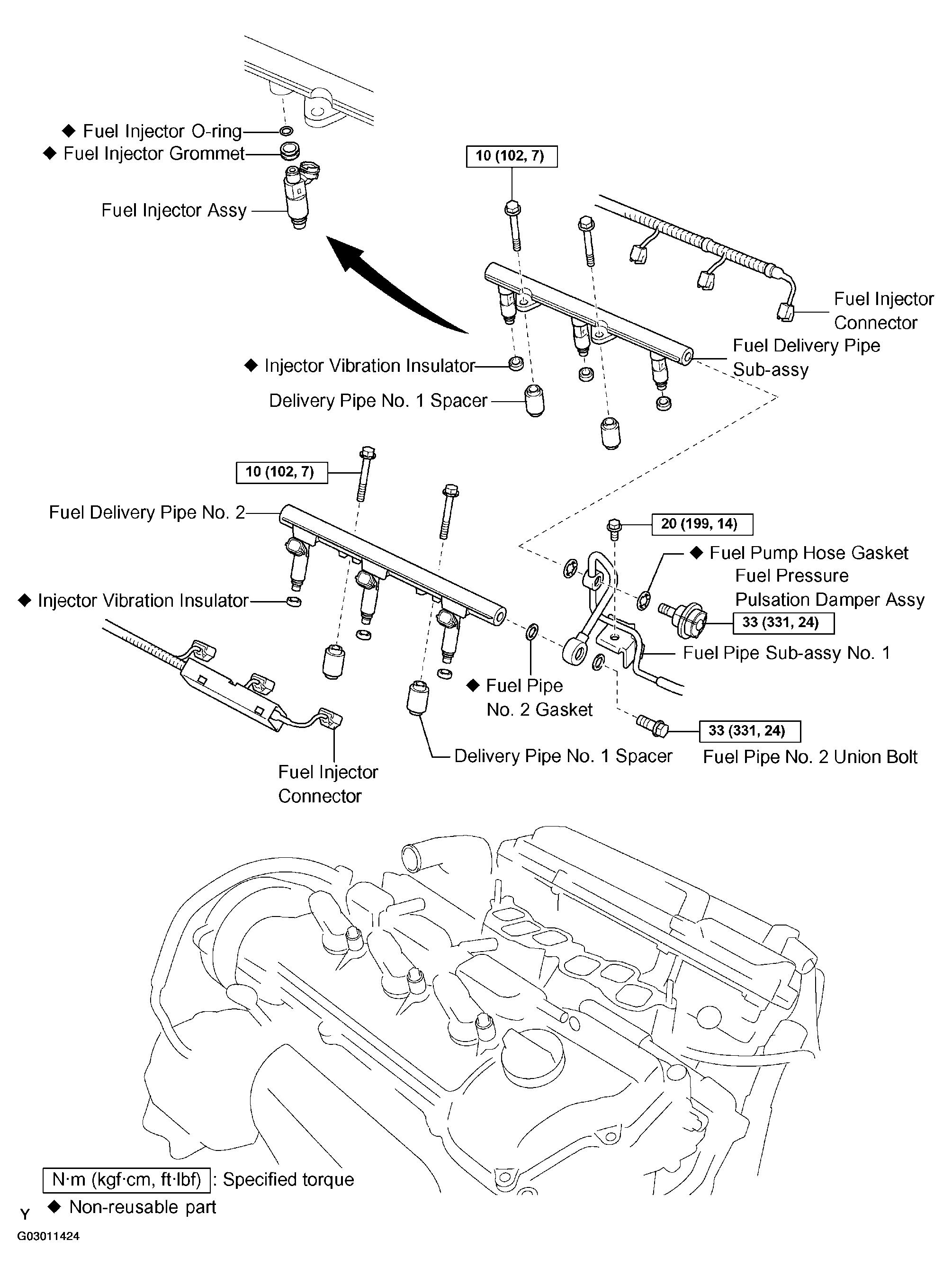

Fig 3: Exploded View Of Components With Specified Torque (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

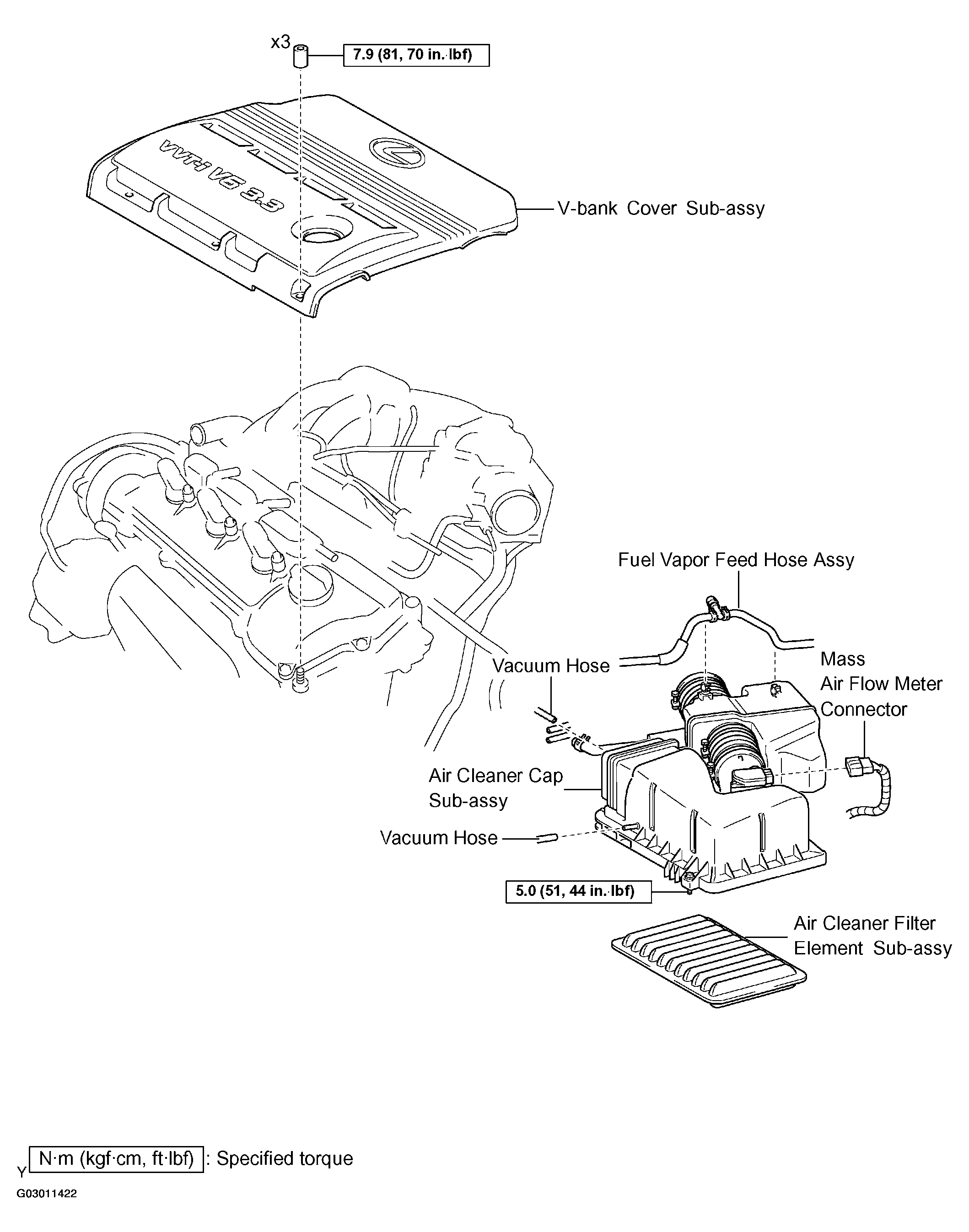

Fig 4: Exploded View Of Components With Specified Torque (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
