Automatic Transmission/Trans: Preparation: SST

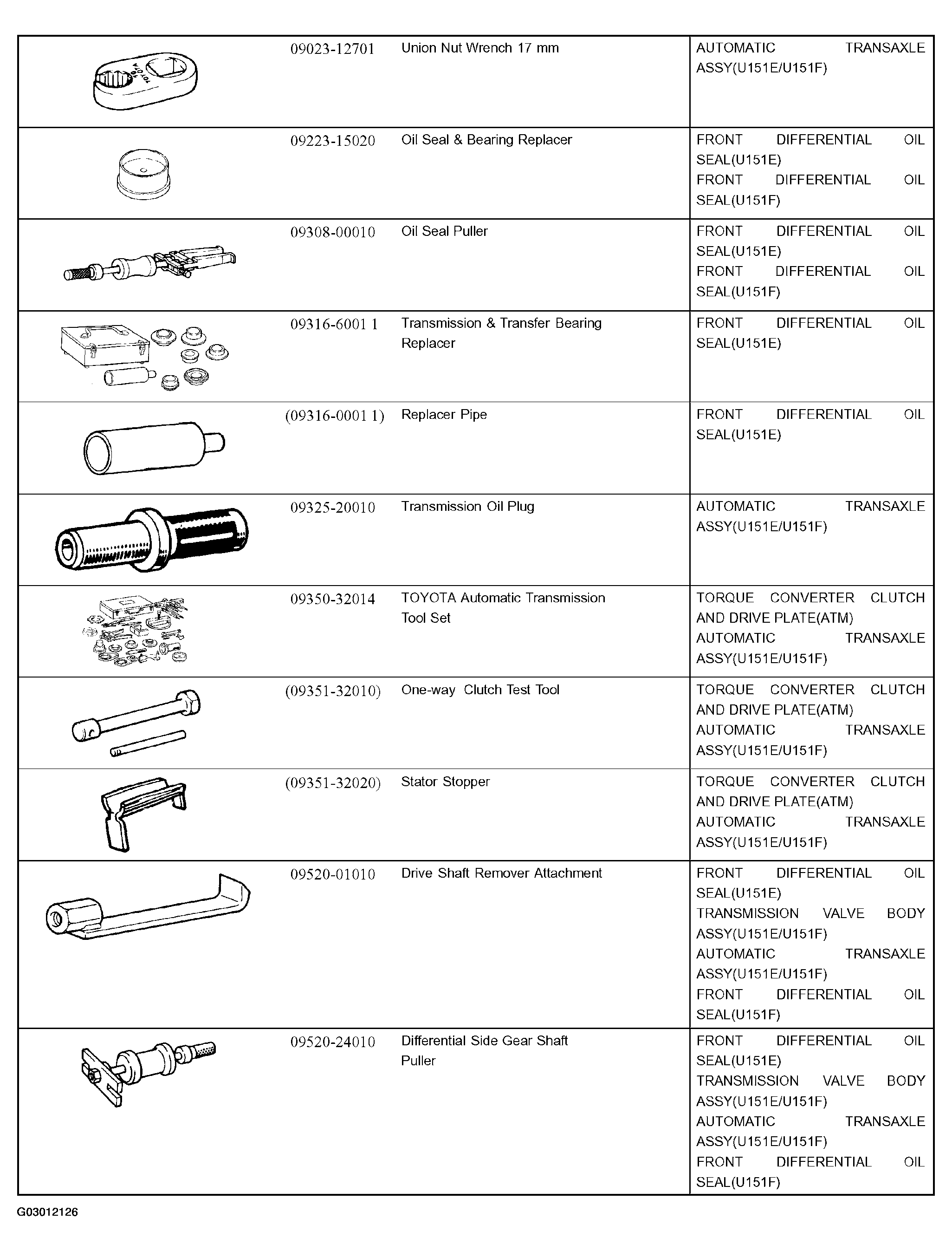

Fig 1: Preparation SST Specifications (1 Of 2)
G03012126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

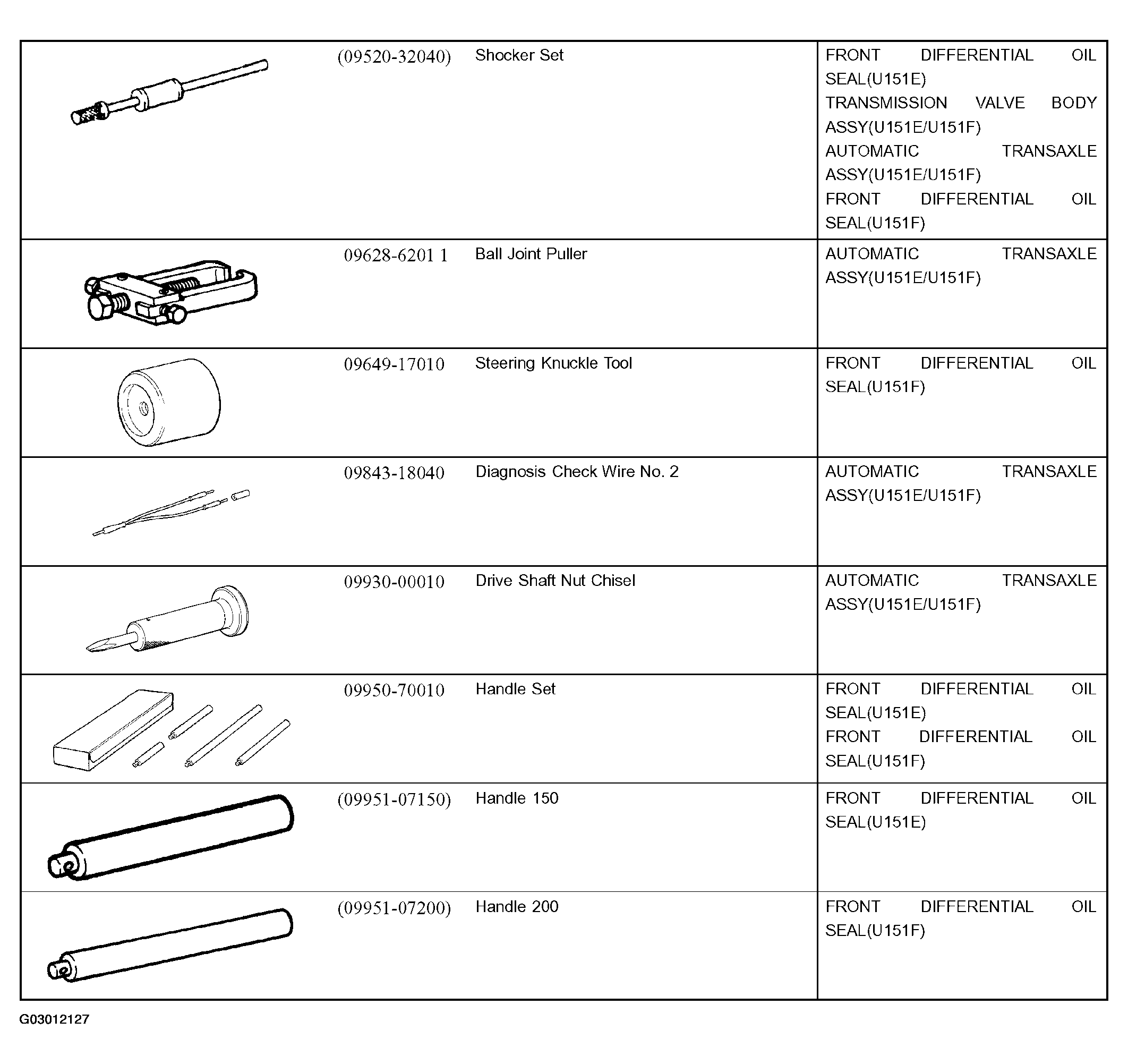

Fig 2: Preparation SST Specifications (2 Of 2)
G03012127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
