Combination Meter - Diagnostics: Pre-Check

ACTIVE TEST

HINT:

According to the ACTIVE TEST displayed by the hand-held tester, you can read the value of components such as the switch, sensor, and actuator without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method to shorten work time.

Warm up the engine.
Turn the ignition switch to the OFF position.
Connect the hand-held tester to DLC3.
Turn the ignition switch to the ON position.
Operate the hand-held tester according to the steps on the display and perform the "ACTIVE TEST".

MTR (Combination meter):

ACTIVE TEST CHART

Item	Test Details
SPEED METER	0/40/80/120/160/180/200
TACHOMETER	0rpm/1000rpm/2000rpm/3000rpm/4000rpm/5000rpm/6000rpm/7000rpm
FUEL GAUGE	EMPTY, 1/2, FULL
COOLANT TEMP	LOW/NORM/HIGH
SHIFT INDIC	L/2/3/4/D/N/R/P
LOW FUEL WARN	Fuel warning light is OFF/ON
OPEN DOOR WARN	Open door indicator is OFF/ON
P-BELT REMIND	P-belt indicator is OFF/ON
D-BELT REMIND	D-belt indicator is OFF/ON
OIL PRESS WARN	Oil pressure warning is OFF/ON
DISCHARGE WARN	Discharge warning is OFF/ON
HEADLIGHT INDIC	"HEAD" indicator is OFF/ON
TAILLIGHT INDIC	"TAIL" indicator is OFF/ON
CRUISE INDIC	"CRUISE" indicator is OFF/ON
ECT SNOW INDIC	"ECT SNOW" indicator is OFF/ON
Rr FOG INDIC	"Rr FOG" indicator is OFF/ON
OIL LEVEL WARN	"OIL LEVEL" warning is OFF/ON
SRS WARN	"SRS" is OFF/ON
HIGH BEAM INDIC	Hi-beam indicator is OFF/ON
TRC OFF INDIC	"TRC-OFF" indicator is OFF/ON
SLIP INDIC	"SLIP" indicator is OFF/ON
ODO/TRIP DISP	ODO/TRIP display is OFF/ON
A/T OIL TEMP	A/T oil temp operation is OFF/ON
L-CRUISE DISP	L-Cruise display is OFF/ON
L-CRS CHECK IND	L-Cruise indicator is OFF/ON
L-CRS READY IND	"READY" indicator is OFF/ON
Fr FOG INDIC	"Fr FOG" indicator is OFF/ON
TIRE PRESS WARN	"TIRE PRESS" warning is OFF/ON
L-CRS NORMAL	Laser radar cruise normal OFF/ON
KEY REMIND BUZZR	Key reminder Buzzer is OFF/ON
LGT REMIND BUZZR	Light remained buzzer is OFF/ON
SEAT BELT BUZZR	Seat belt buzzer is OFF/ON
REVERSE BUZZR	Reverse buzzer is OFF/ON
S SHIFT RJCT BUZ	Sports shift buzzer is OFF/ON
SPEED BUZZR	Speed buzzer is OFF/ON
WARNING BUZZR	Warning buzzer is OFF/ON
A/T SHIFT LCD	A/T shift LCD is OFF/ON

DATA LIST
HINT:

According to the DATA LIST displayed by the hand-held tester, you can read the value of components such as the switch, sensor, and actuator without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten work time.
1. Warm up the engine.
2. Turn the ignition switch to the OFF position.
3. Connect the hand-held tester to DLC3.
4. Turn the ignition switch to the ON position.
5. Operate the hand-held tester according to the steps on the display and select "DATA LIST".
MTR (Combination meter):

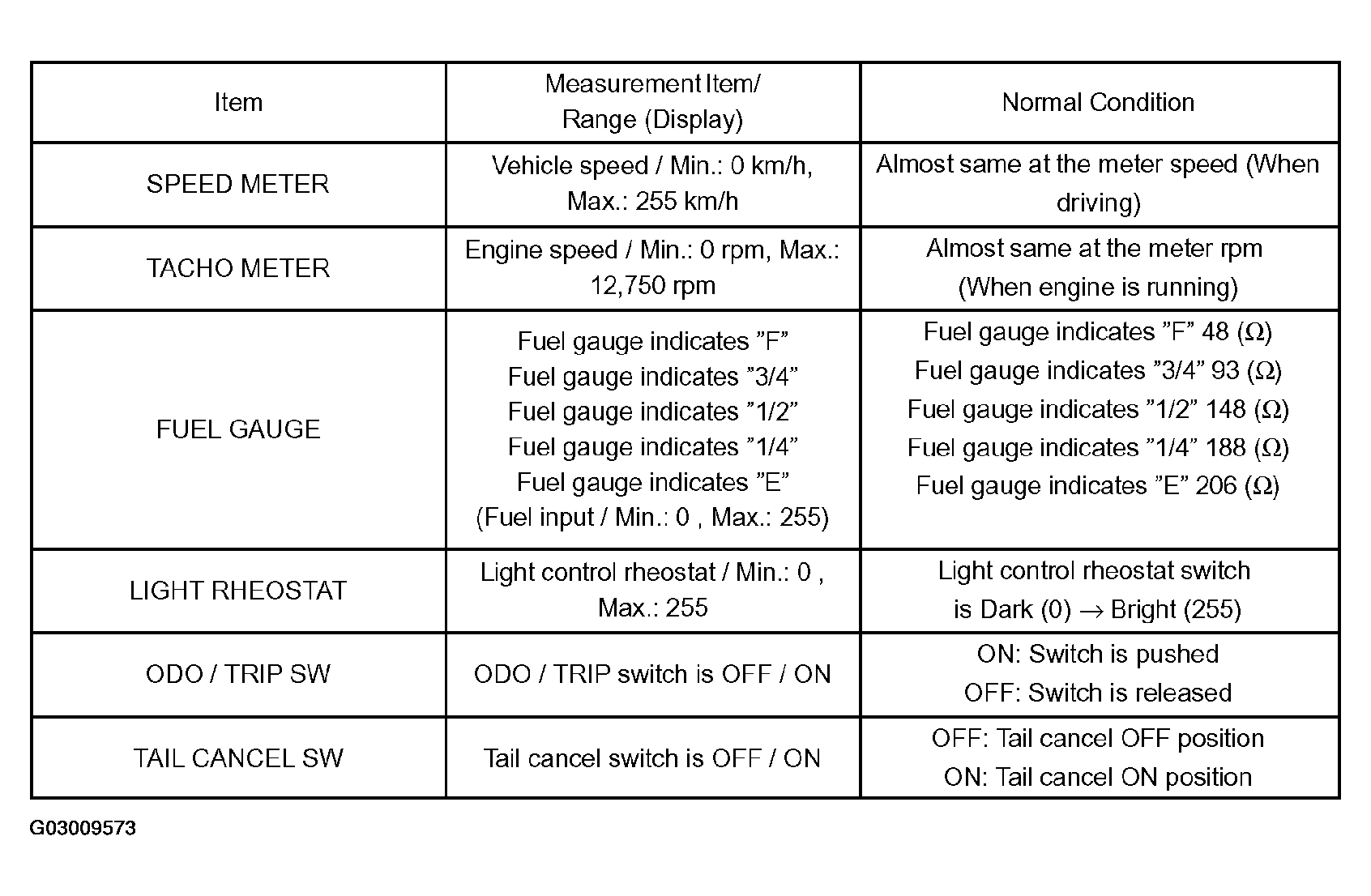

Fig 1: Data List - MTR (Combination Meter)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
