Power Steering: Preparation: SST

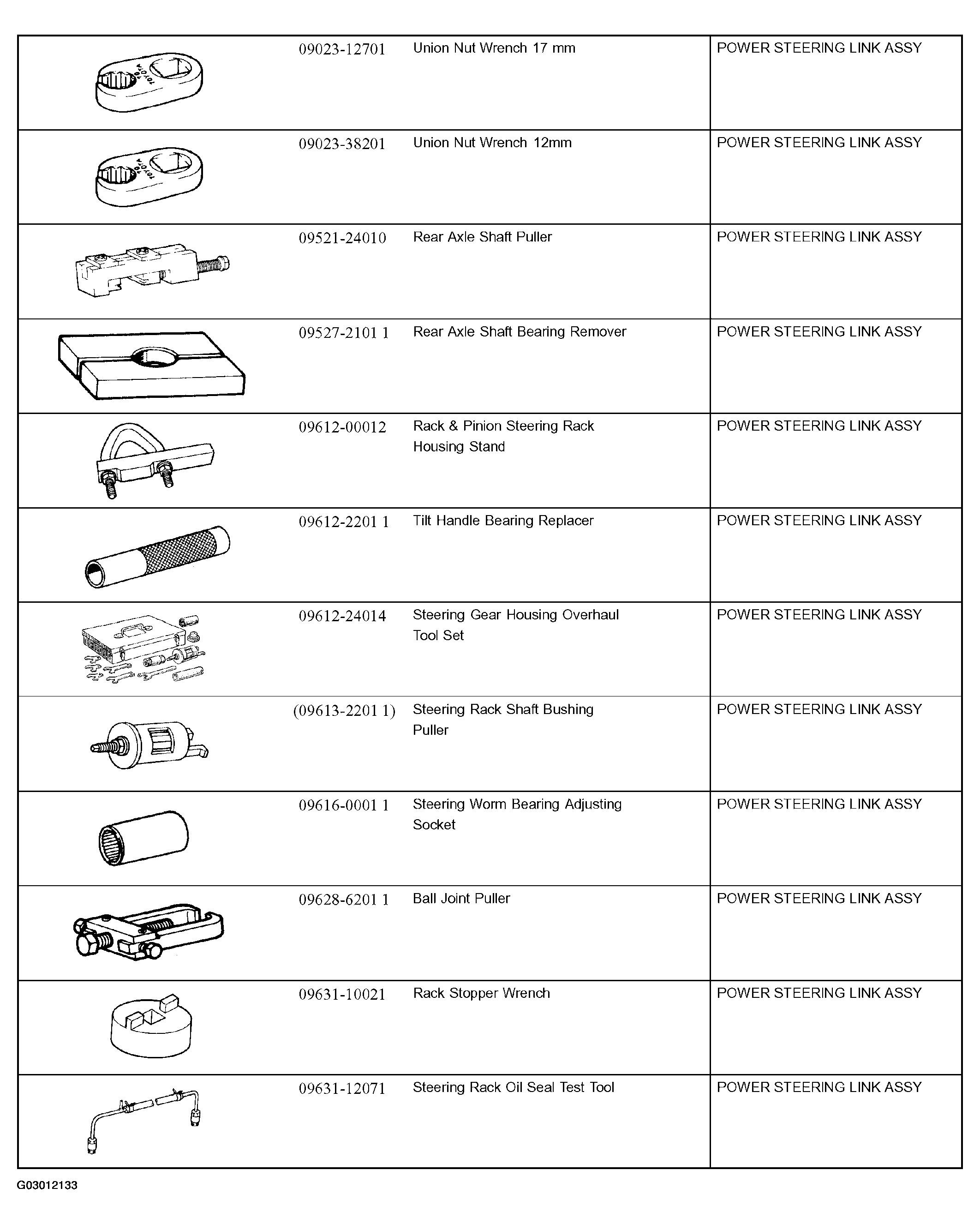

Fig 1: Preparation SST Specifications (1 Of 3)
G03012133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

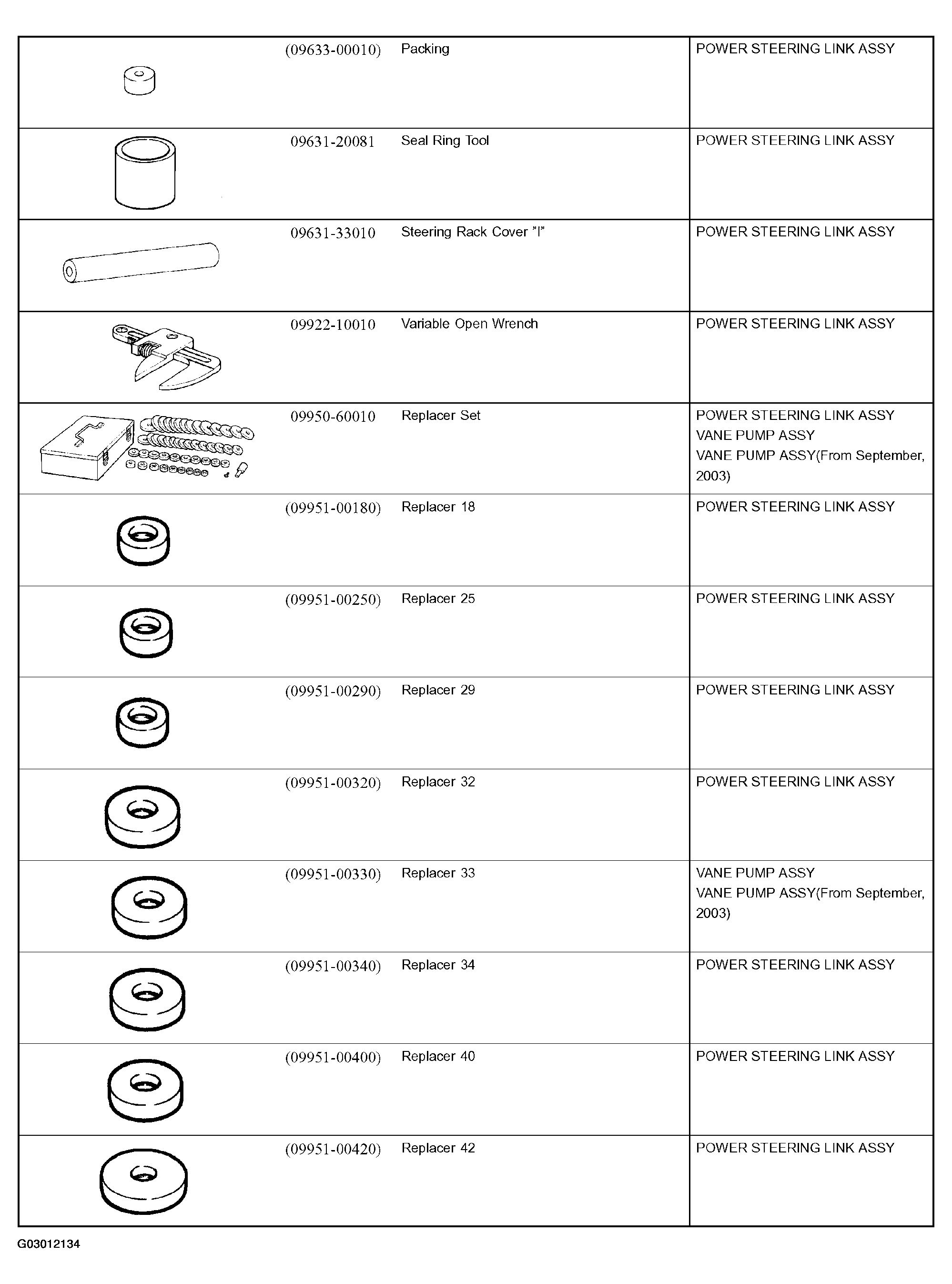

Fig 2: Preparation SST Specifications (2 Of 3)
G03012134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

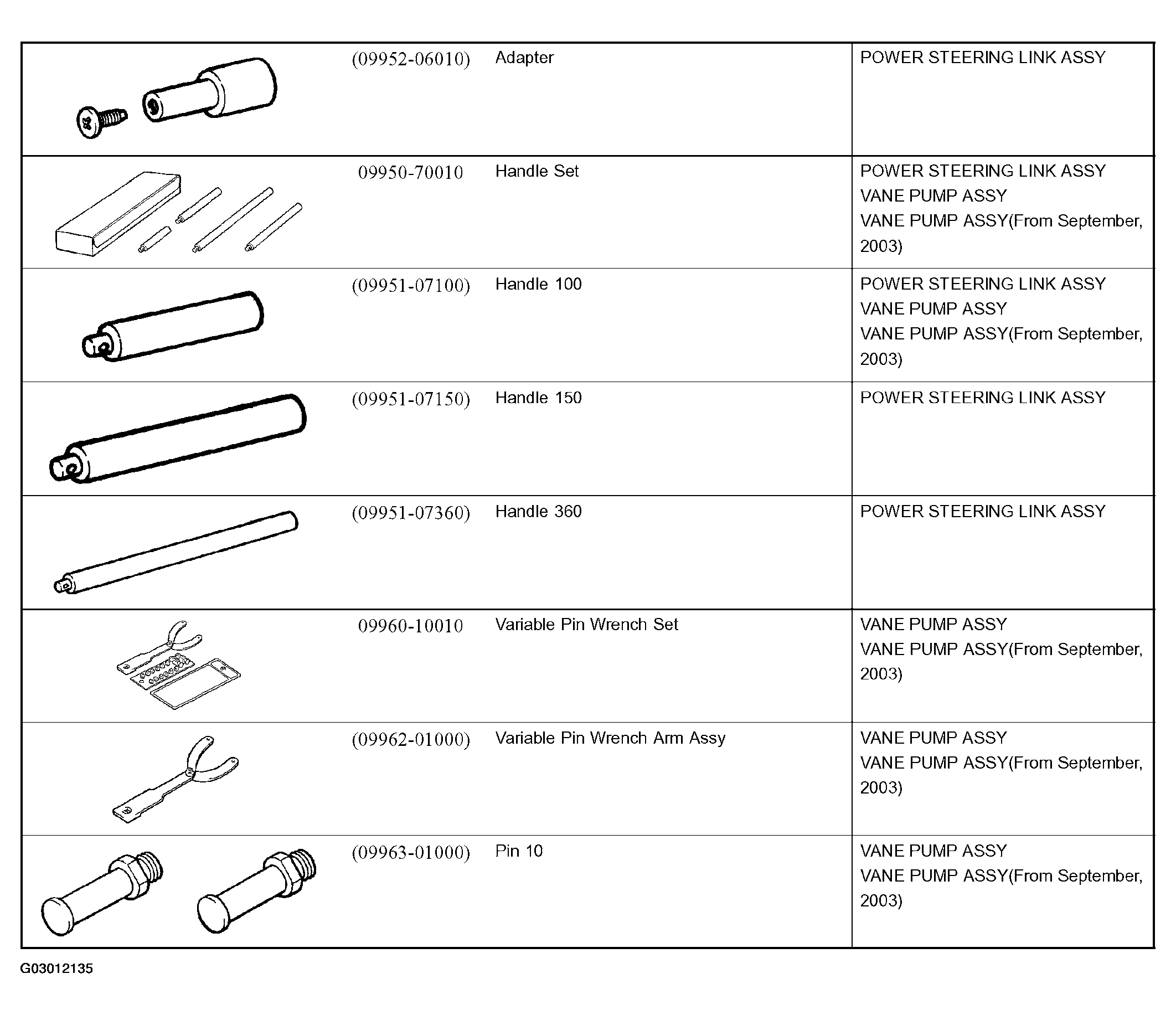

Fig 3: Preparation SST Specifications (3 Of 3)
G03012135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
