Auto Up/Down Function Does Not Operate On Passenger Side: Wiring Diagram

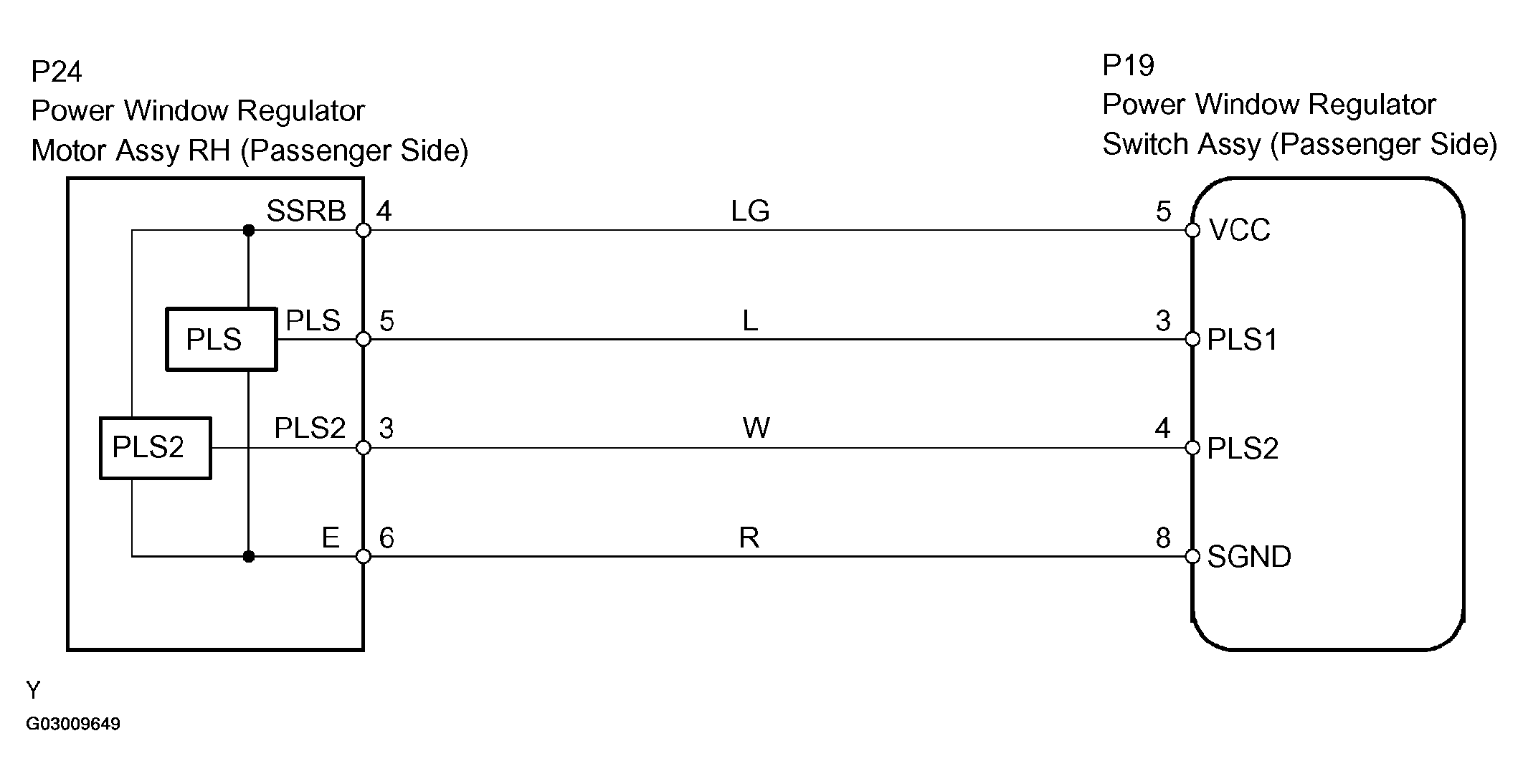

Fig 1: Auto Up/Down Function Does Not Operate On Passenger Side Wiring Diagram

G03009649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
