Auto Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

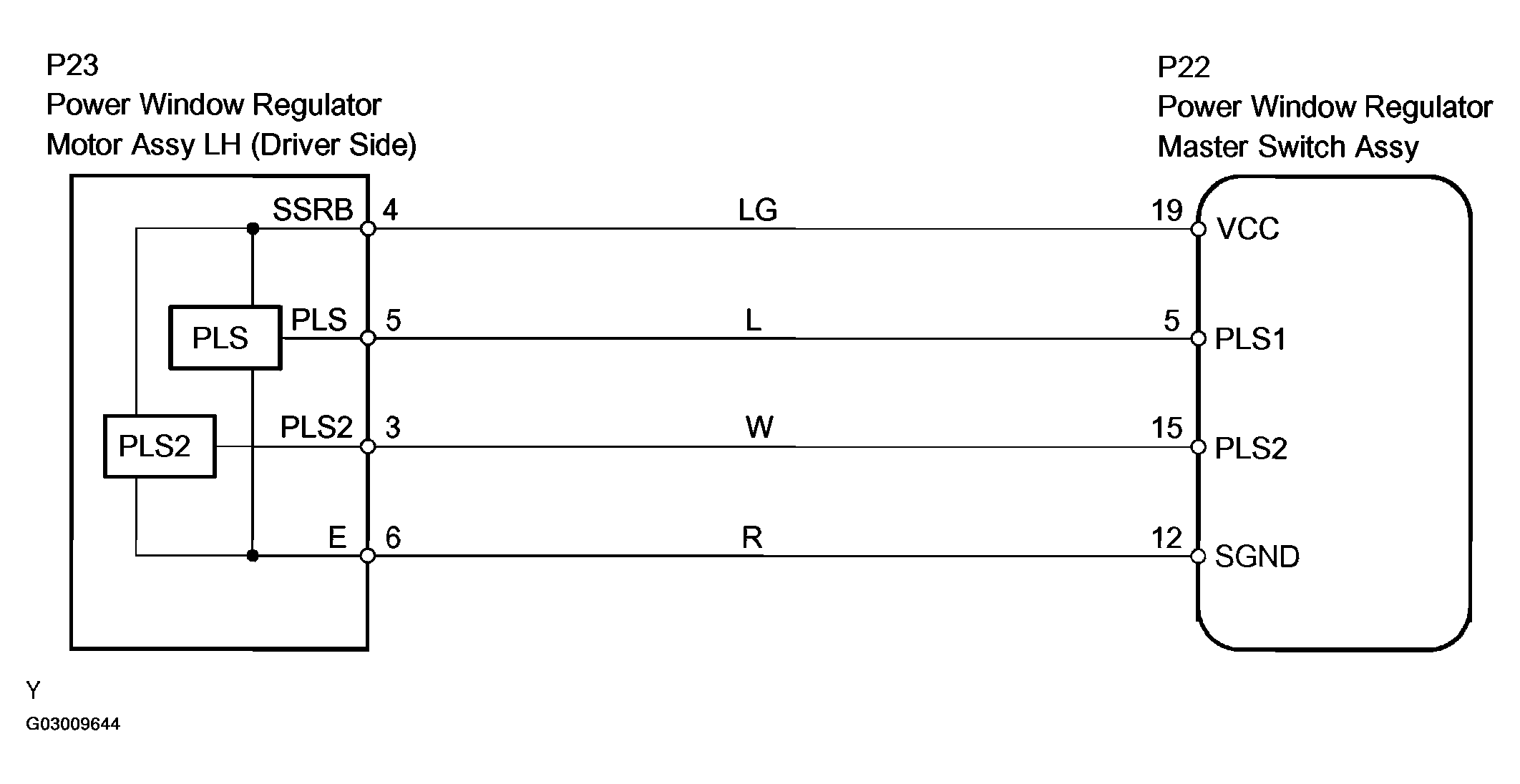

Fig 1: Auto Up/Down Function Does Not Operate On Driver Side Wiring Diagram

G03009644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
