Auto Up/Down Function Does Not Operate At Rear LH: Wiring Diagram

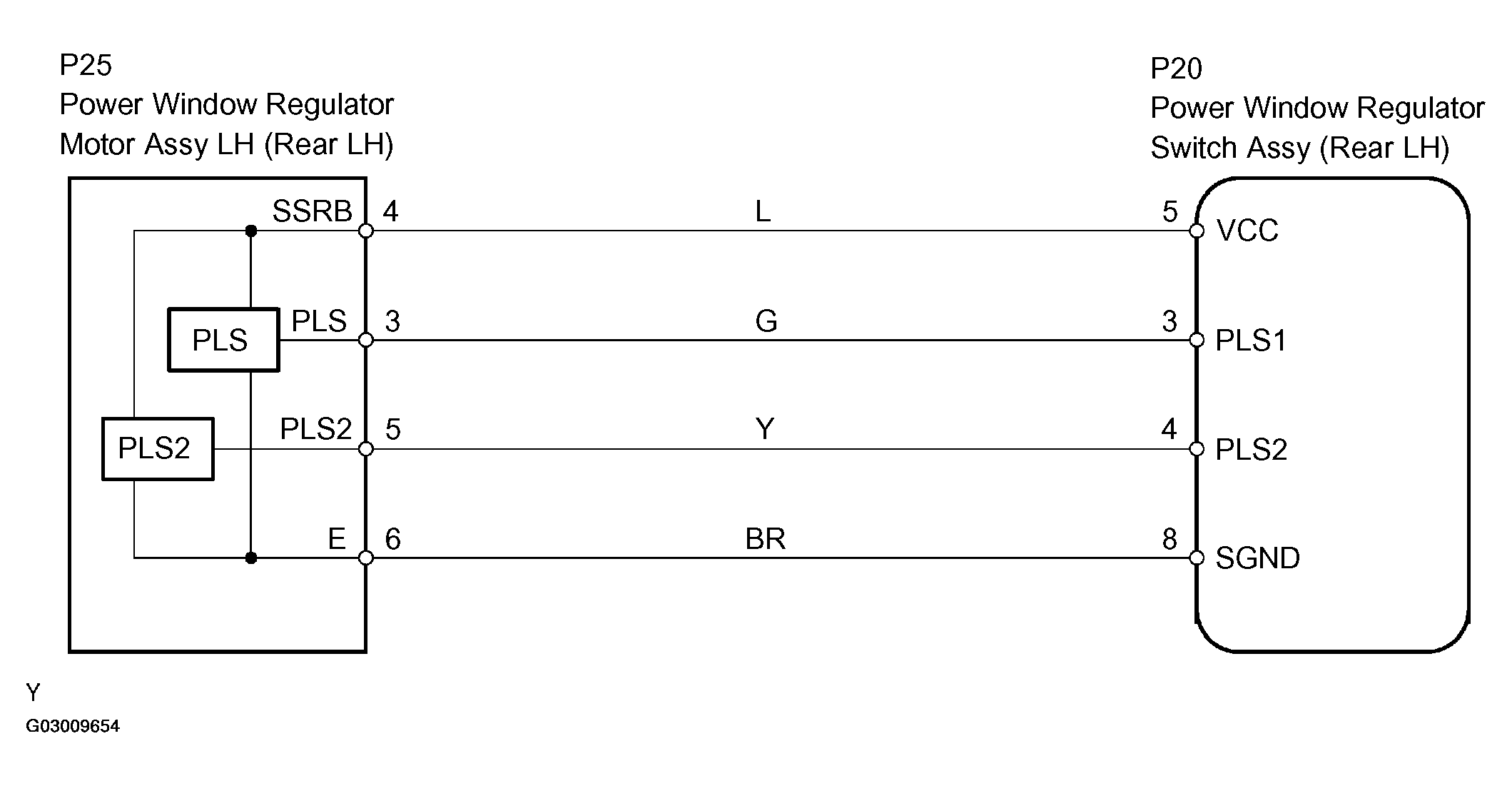

Fig 1: Auto Up/Down Function Does Not Operate At Rear LH Wiring Diagram

G03009654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
