Hood Support Rod: Replacement

REMOVE HOOD SUPPORT ROD
1. Remove the clip and hood support from the hood panel.
  HINT:

  While supporting the hood panel by hand, remove the hood support.
2. Remove the bolt and hood support from the vehicle body.

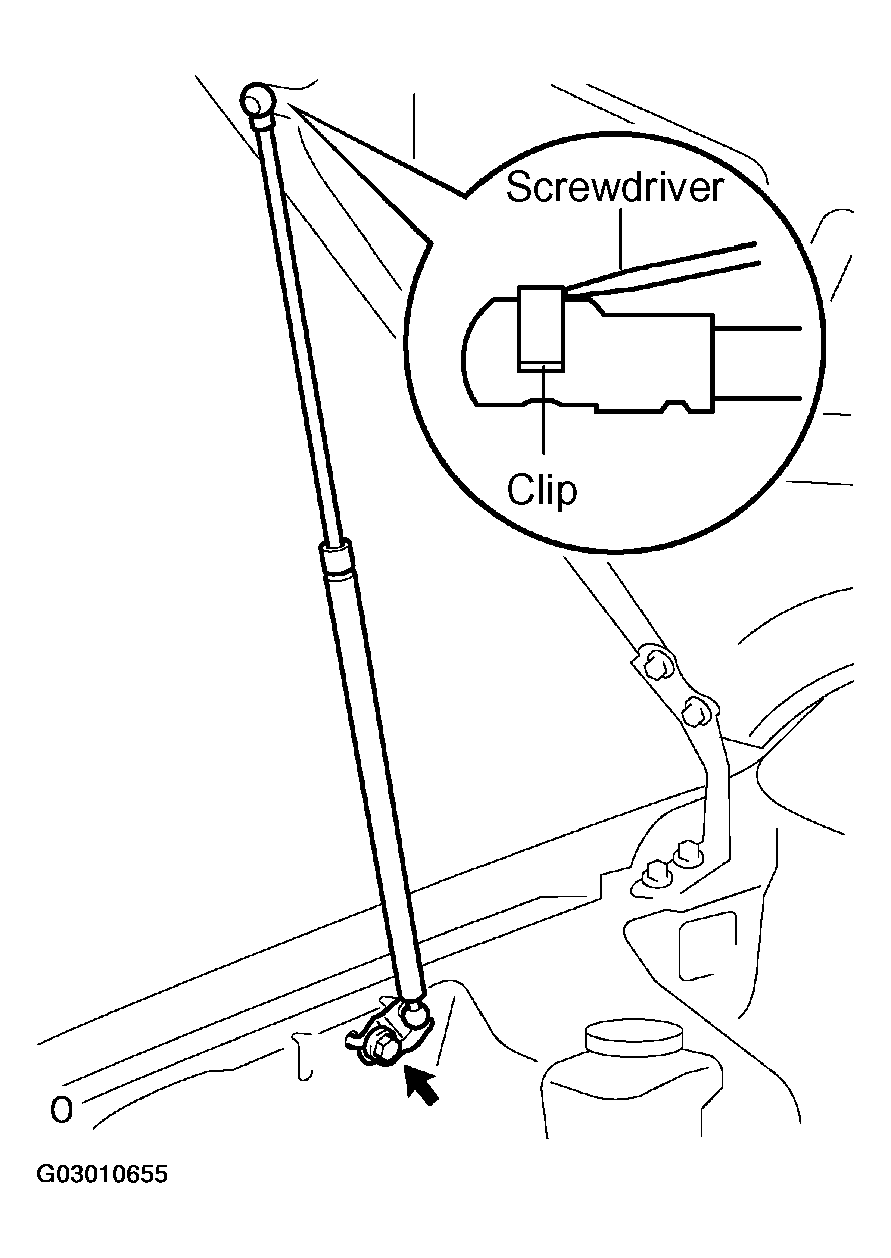

  Fig 1: Removing Bolt And Hood Support From Vehicle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD SUPPORT ROD
1. Install the hood support with the 3 bolts.
  Torque: 19.5 N.m (199 kgf.cm, 14 ft.lbf)
