Front Door: Components

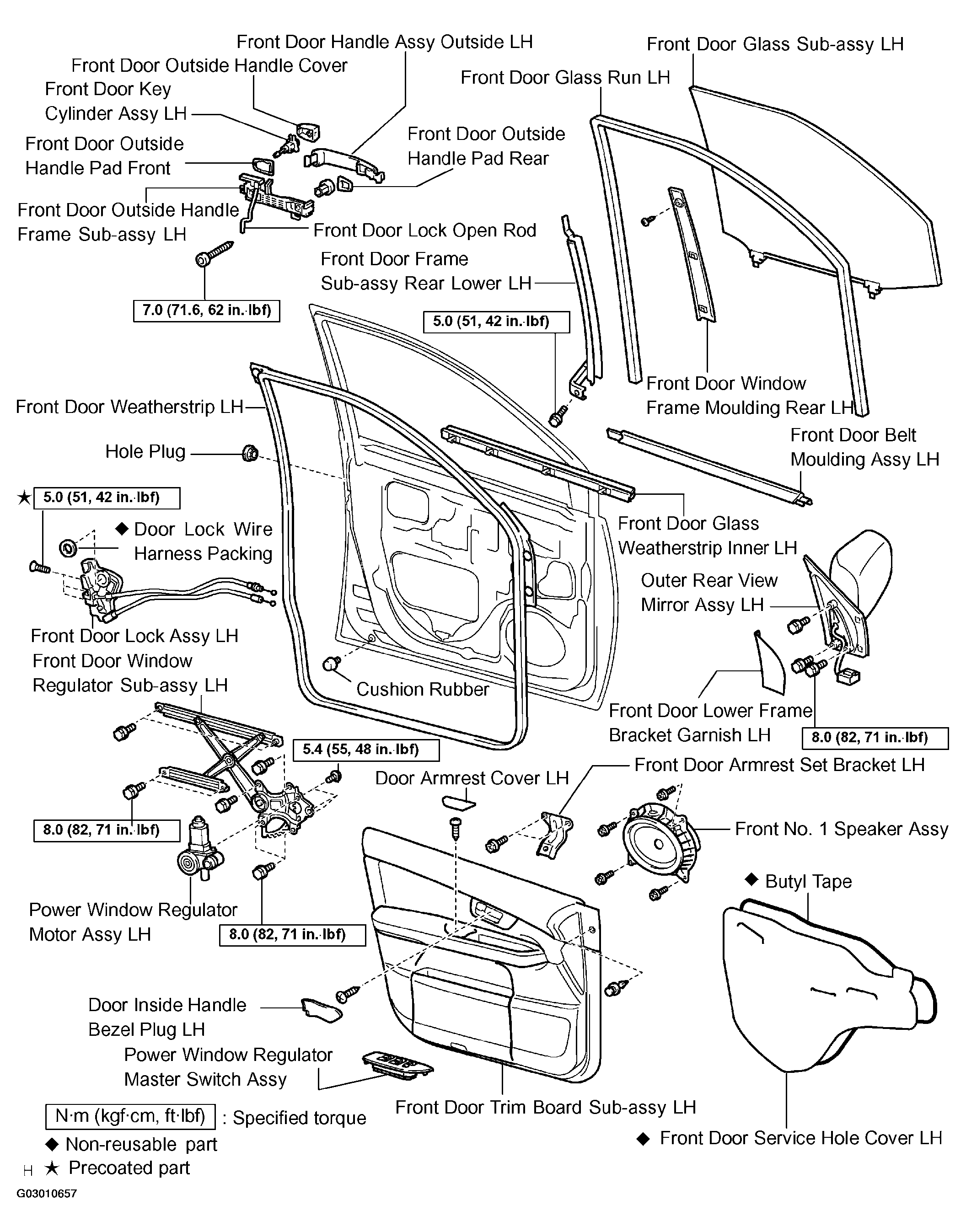

Fig 1: Identifying Front Door Component

G03010657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
