Back Door: Components

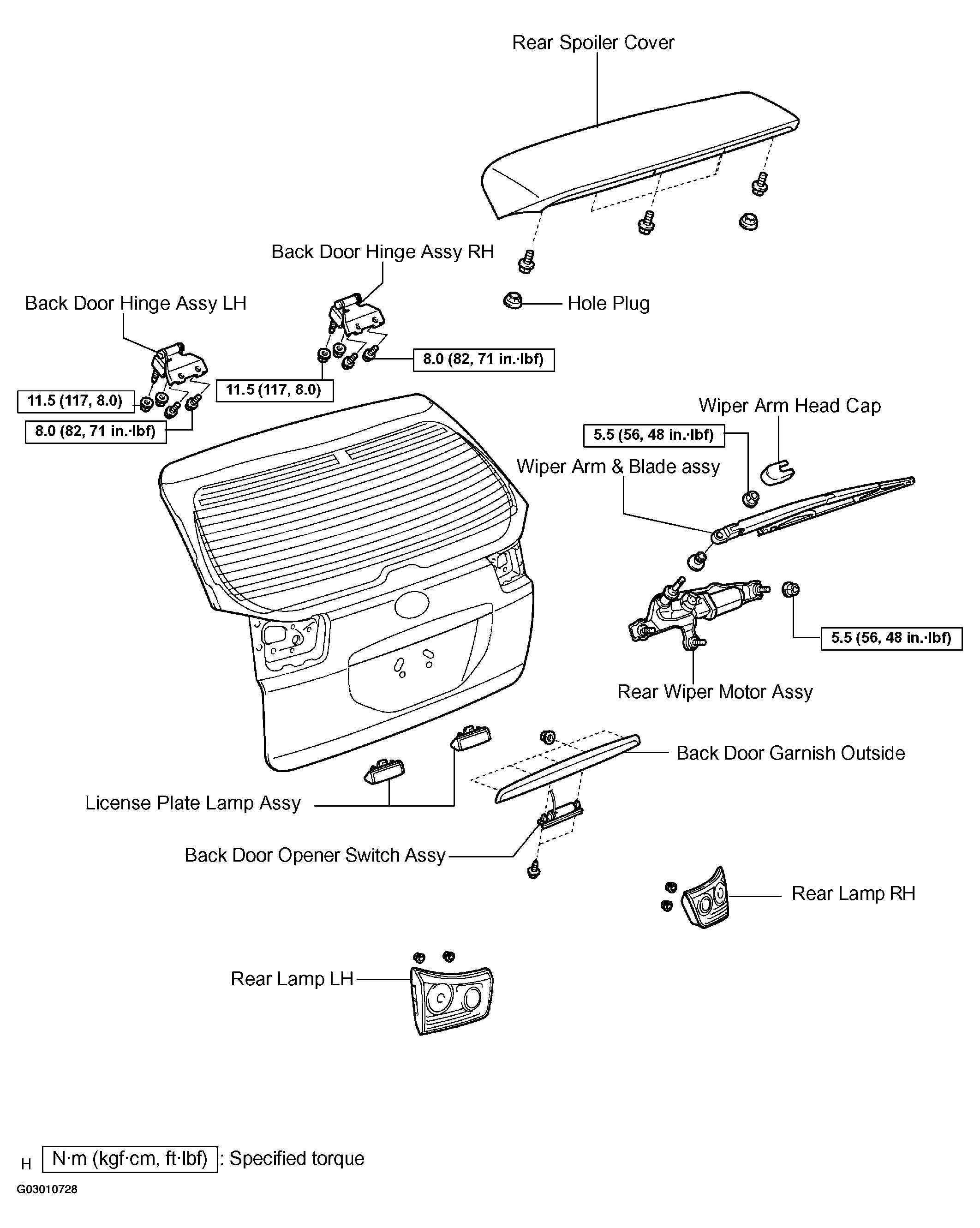

Fig 1: Identifying Back Door Component (1 Of 2)
G03010728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

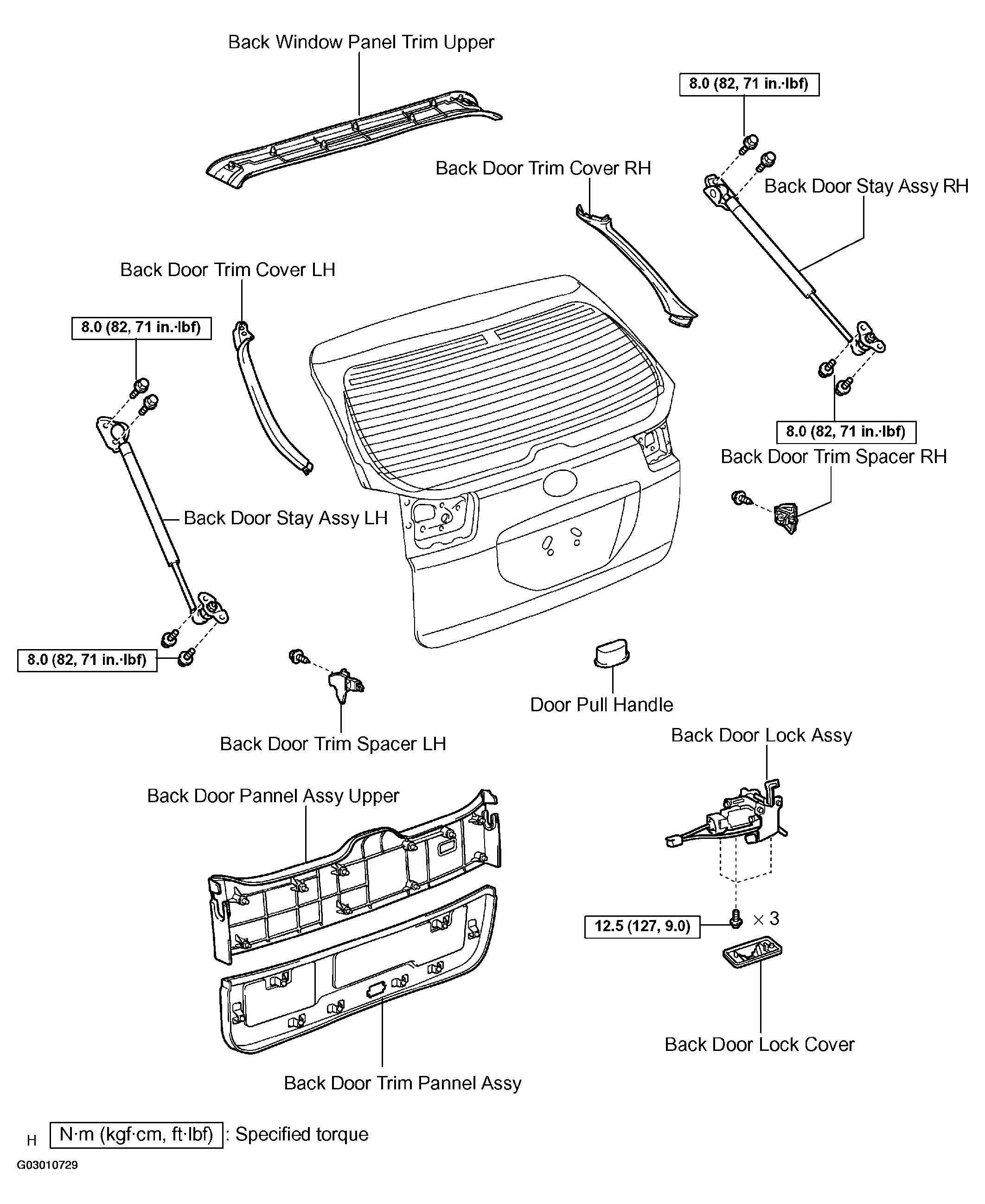

Fig 2: Identifying Back Door Component (2 Of 2)
G03010729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
