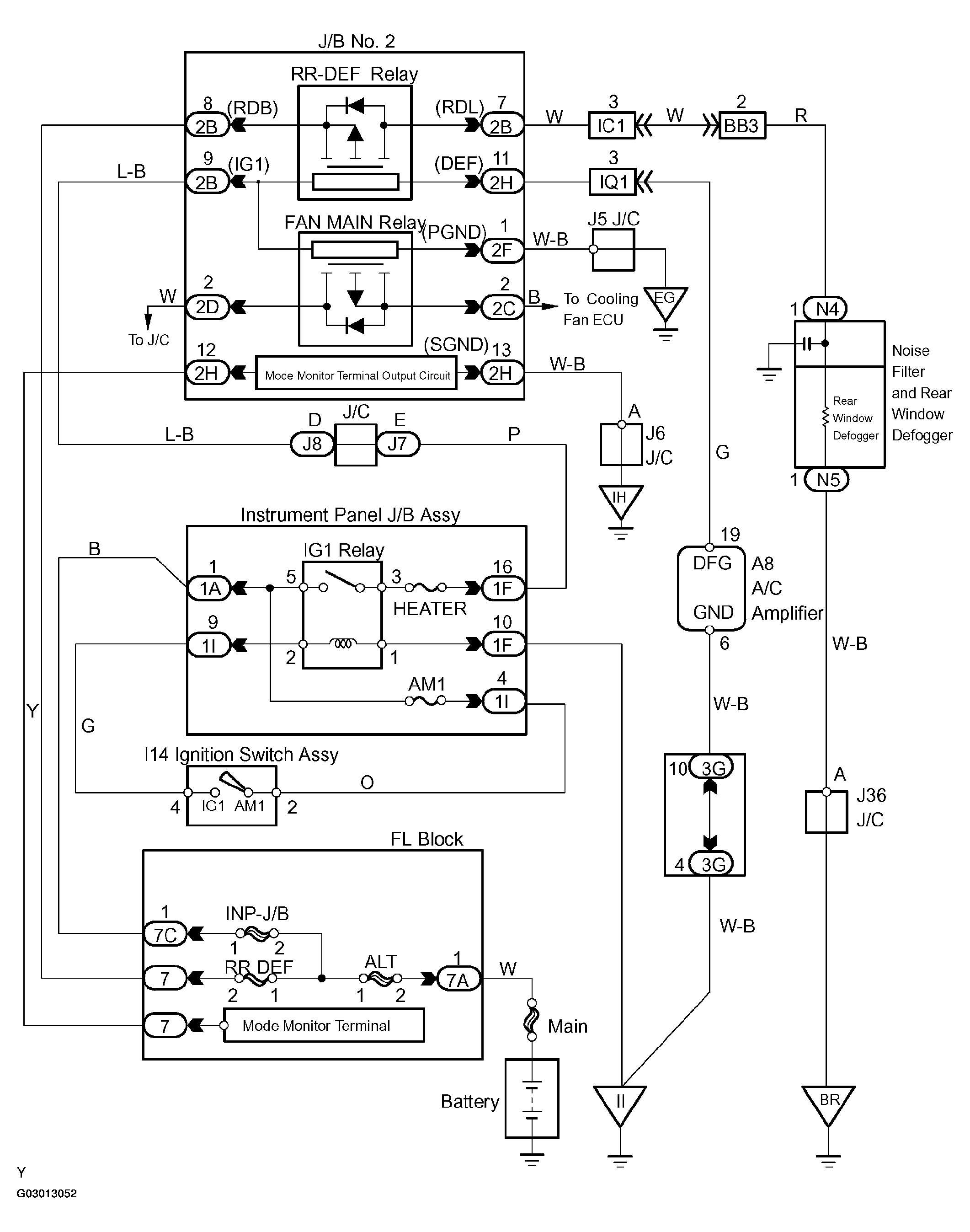

Rear Window Defogger Does Not Operate (Indicator On): Wiring Diagram

Fig 1: Wiring Diagram

G03013052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
