Distance Control Switch Circuit: Wiring Diagram

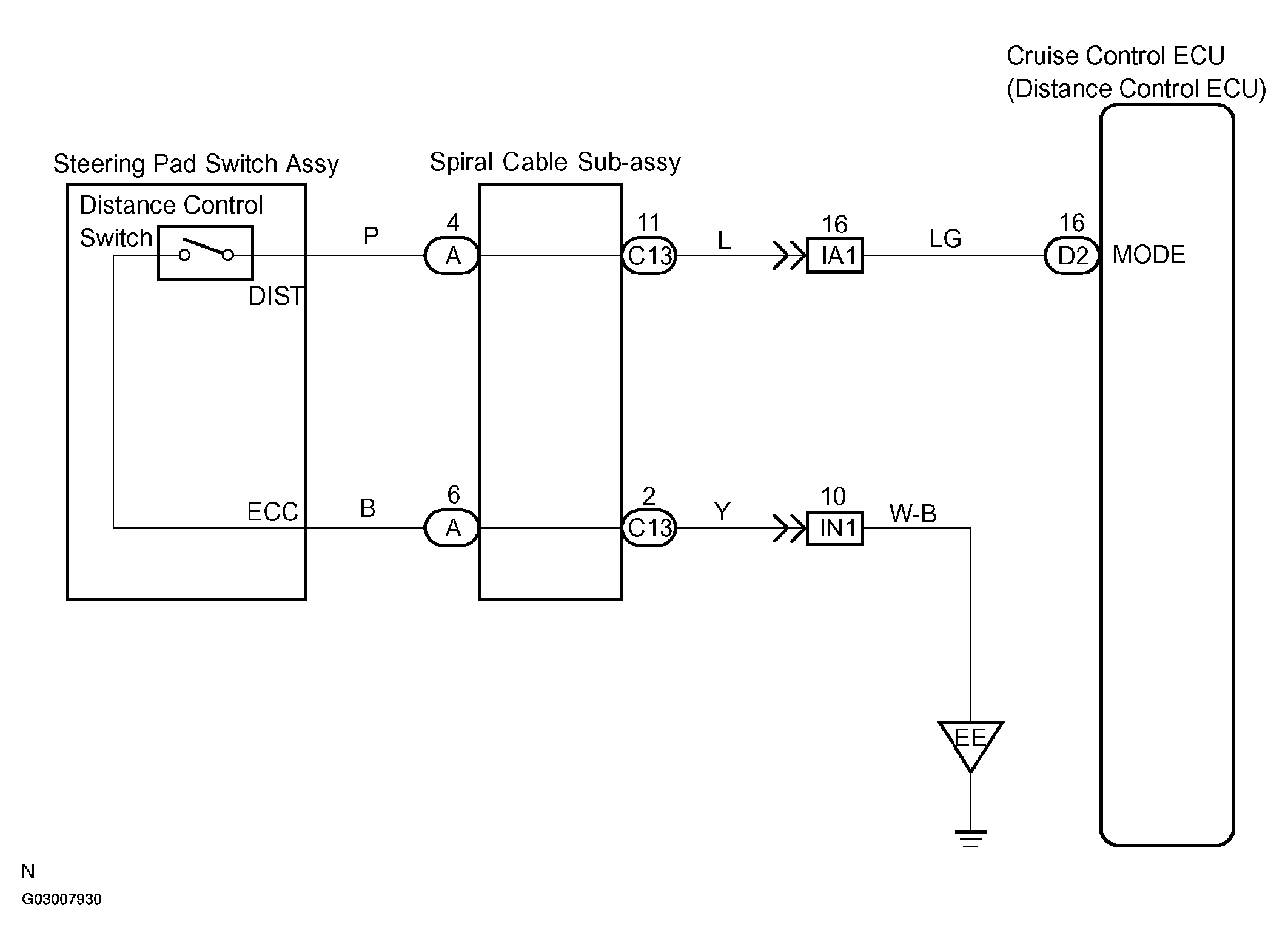

Fig 1: Distance Control Switch Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
