Mayday ASSY: Components

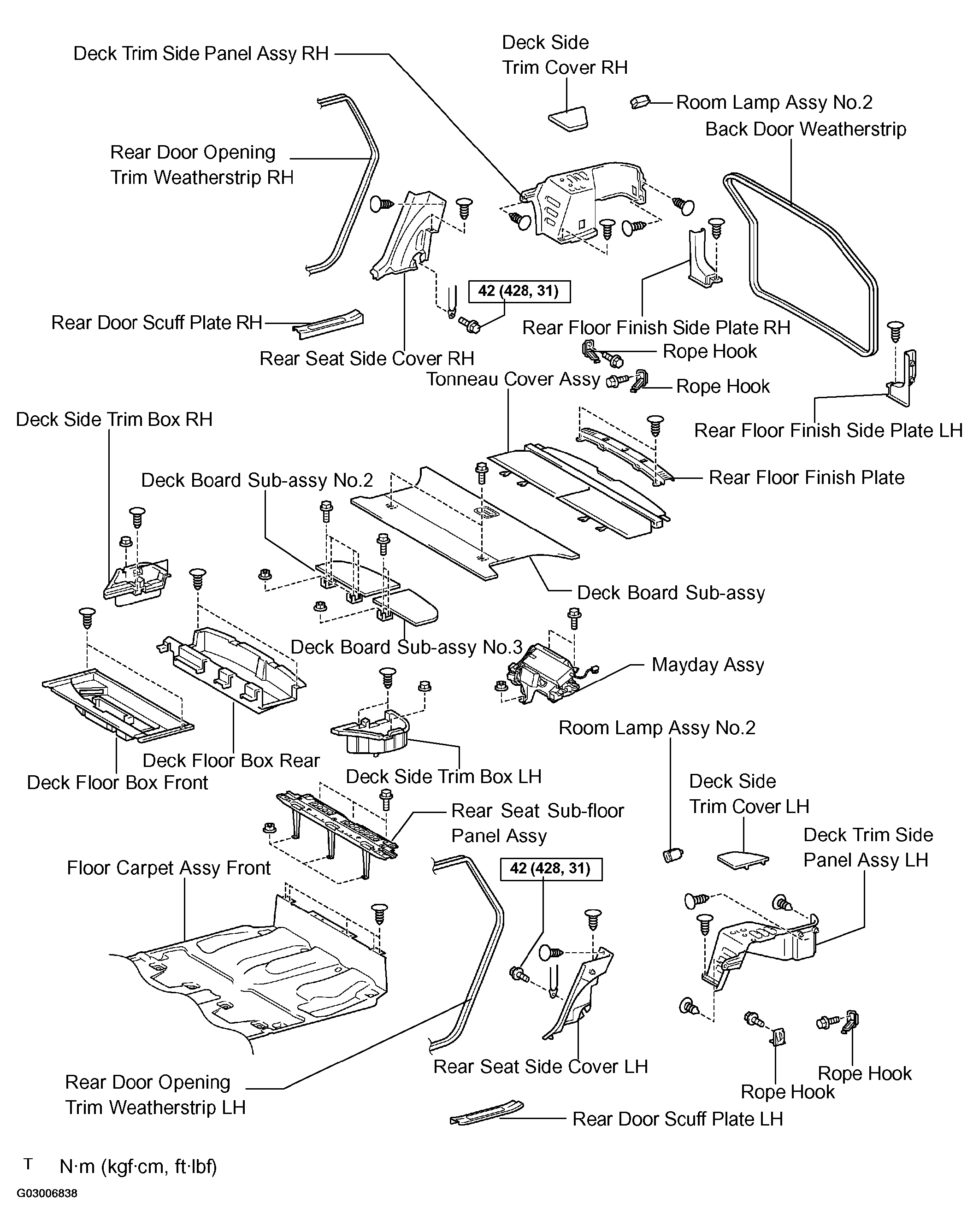

Fig 1: Exploded View Of Mayday Assy Components And Replacements (1 Of 2)
G03006838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

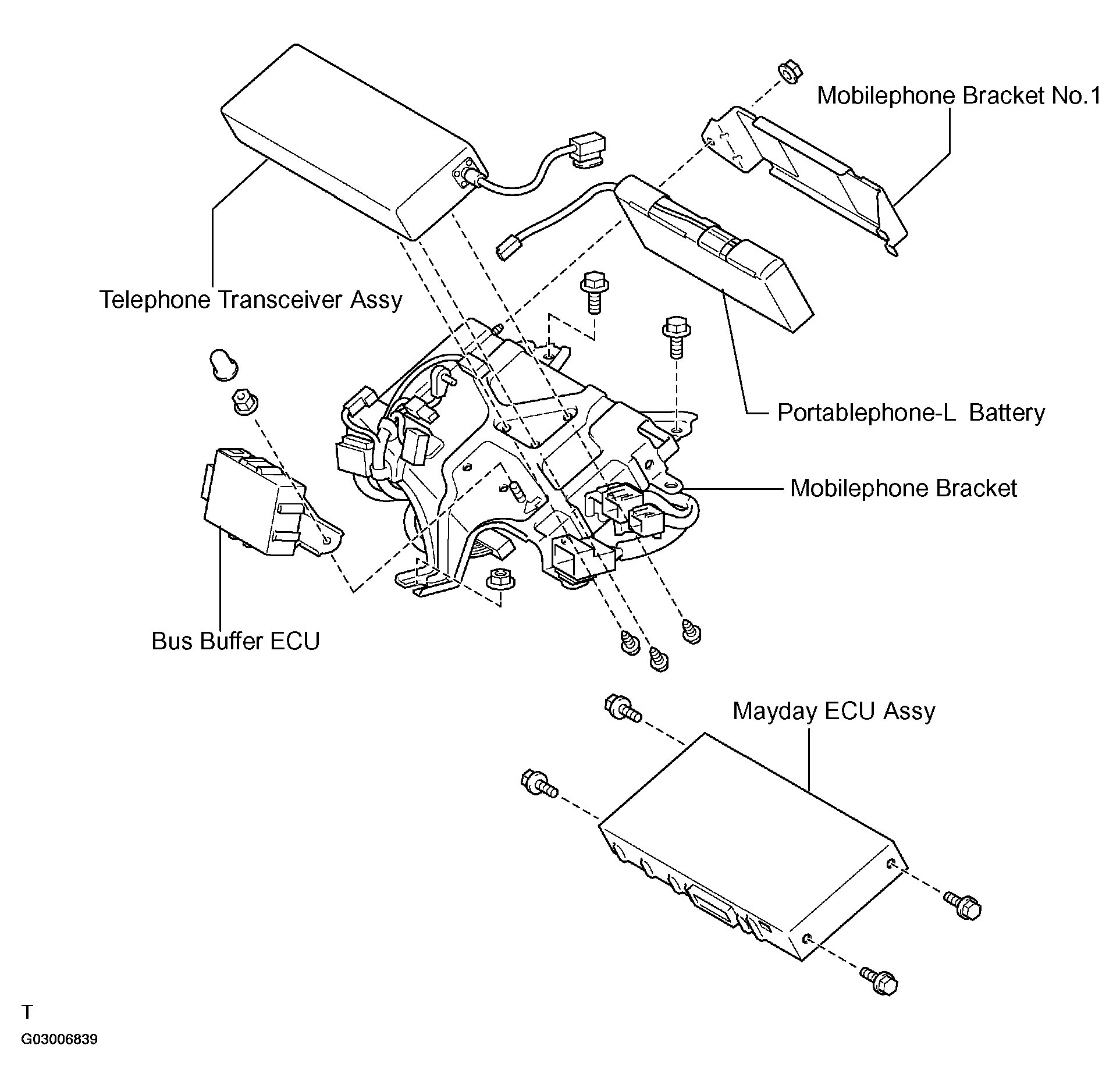

Fig 2: Exploded View Of Mayday Assy Components And Replacements (2 Of 2)
G03006839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
