Inspection Procedure

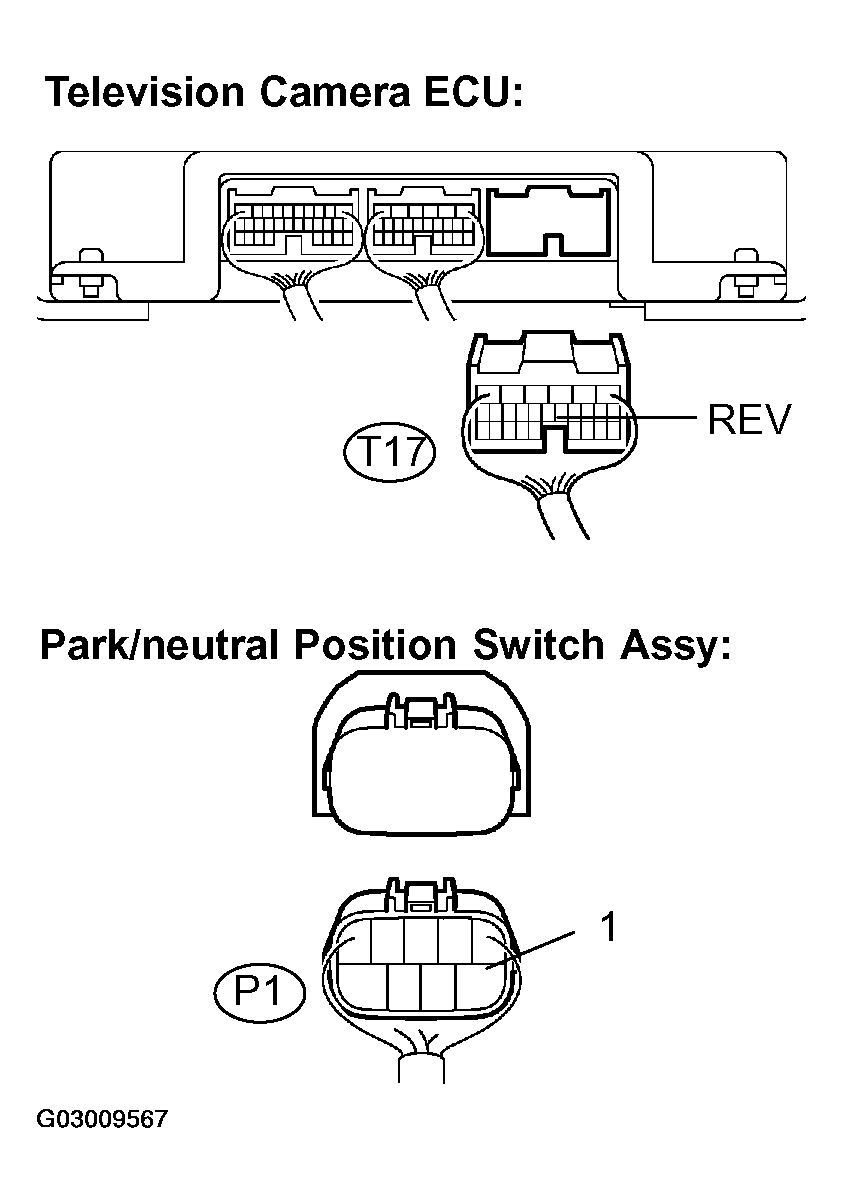

- CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU-PARK/NEUTRAL POSITION SWITCH ASSY)
- Disconnect the T17 connector from the television camera ECU.
- Disconnect the P1 connector from the park/neutral position switch assy.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester connection (Terminal No.) Condition Specified condition REV (T17-11) - 1 (P1-1) Always Below 1 Ω REV (T17-11) - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: Go to next step

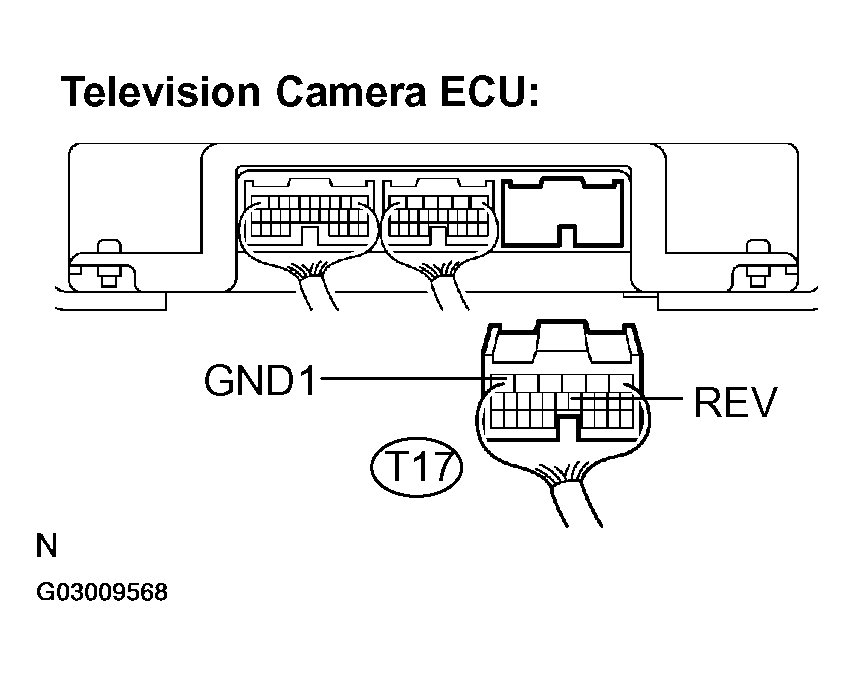

- INSPECT TELEVISION CAMERA ECU (REVERSE SIGNAL INPUT)
- Connect the P1 connector to the park/neutral position switch assy.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester connection (Terminal No.) Condition Specified condition GND1 (T17-6) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester connection (Terminal No.) Condition Specified condition REV (T17-11) - GND1 (T17-6) IG SW ON, shift lever R position 10 to 14 V
- NG: INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (See DTC P0705: TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) )
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
