On-Vehicle Repair

1. Remove the 20 bolts.
2. Remove the oil pan gasket.

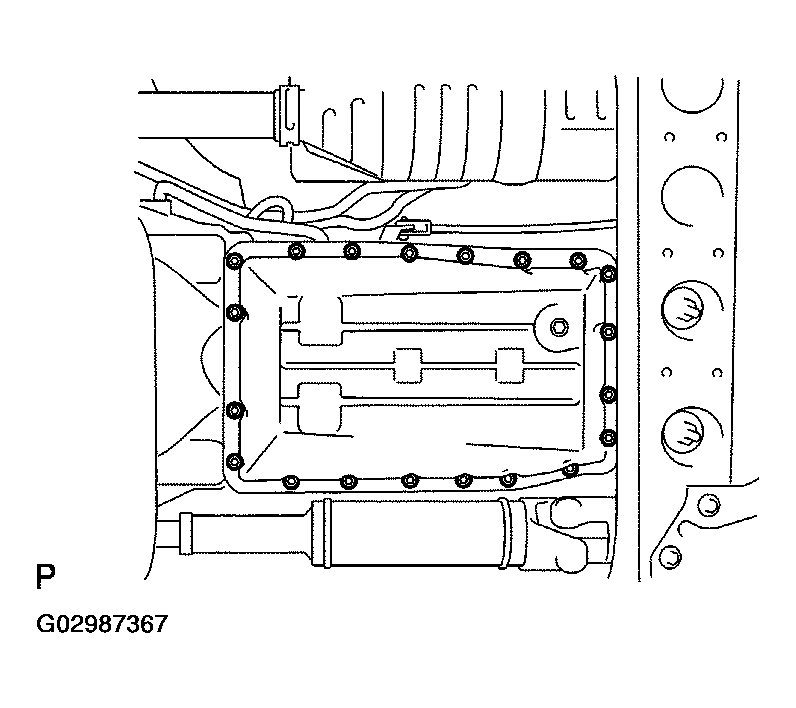

Fig 1: Locating Oil Pan Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.

Steel (magnetic)...bearing, gear and clutch plate wear Brass (non-magnetic)...bushing wear

Fig 2: Collecting Steel Particles

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 4 bolts, the oil strainer and the O-ring.

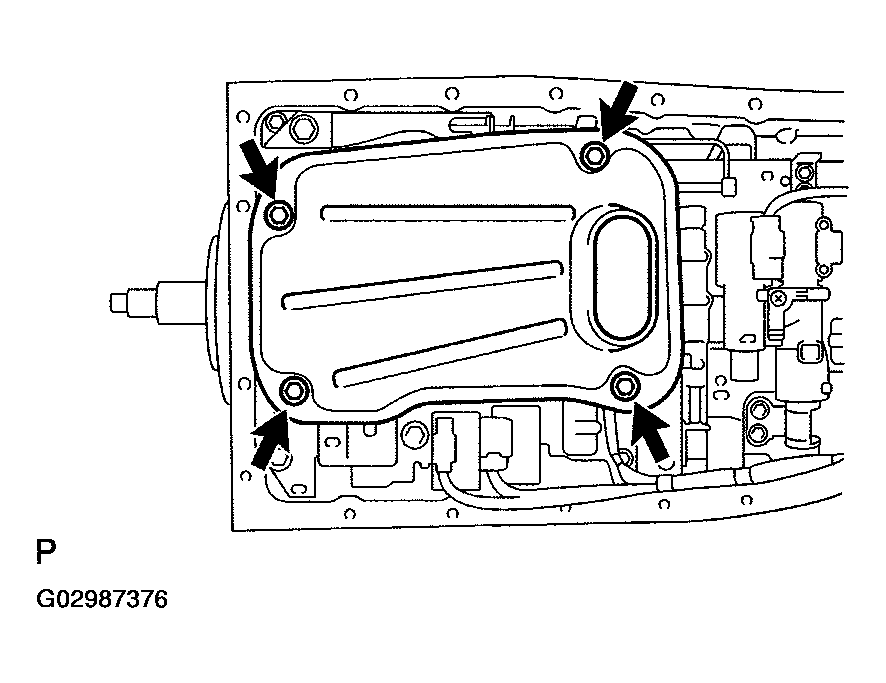

Fig 3: Locating Oil Strainer Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the 7 solenoid connectors.

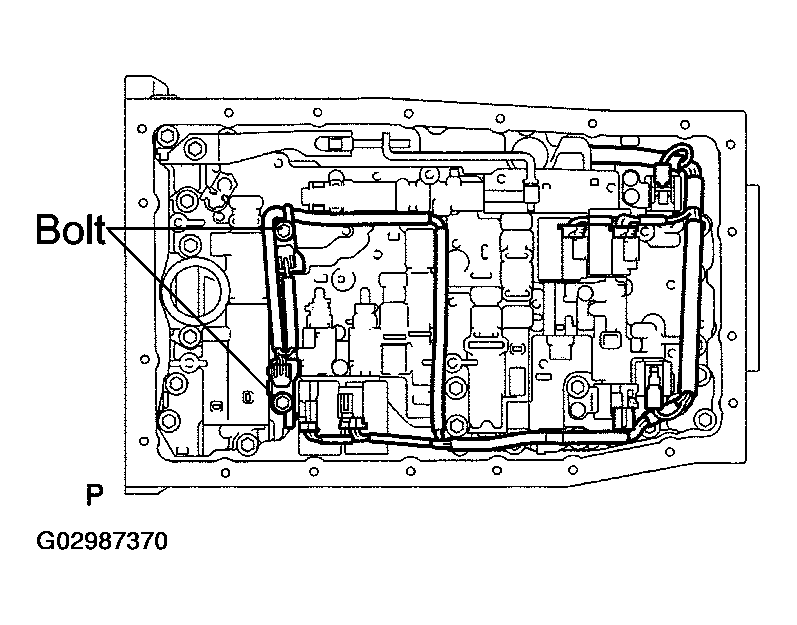

2. Remove 2 bolts and the 2 temperature sensors clamp from the valve body.

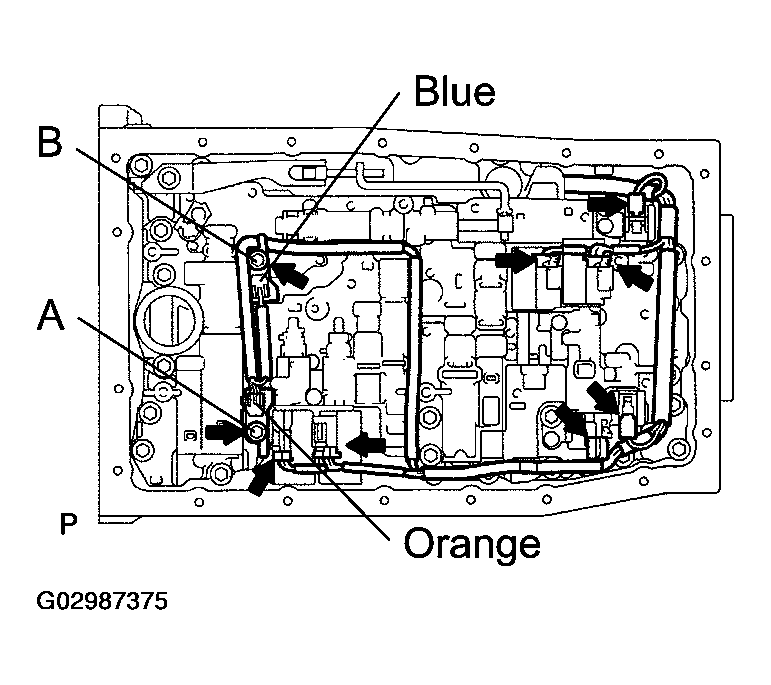

   Fig 4: Removing 2 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 2 temperature sensor from the valve body.

1. Remove the 19 bolts and the valve body.
2. Remove the 3 drum seal gaskets.

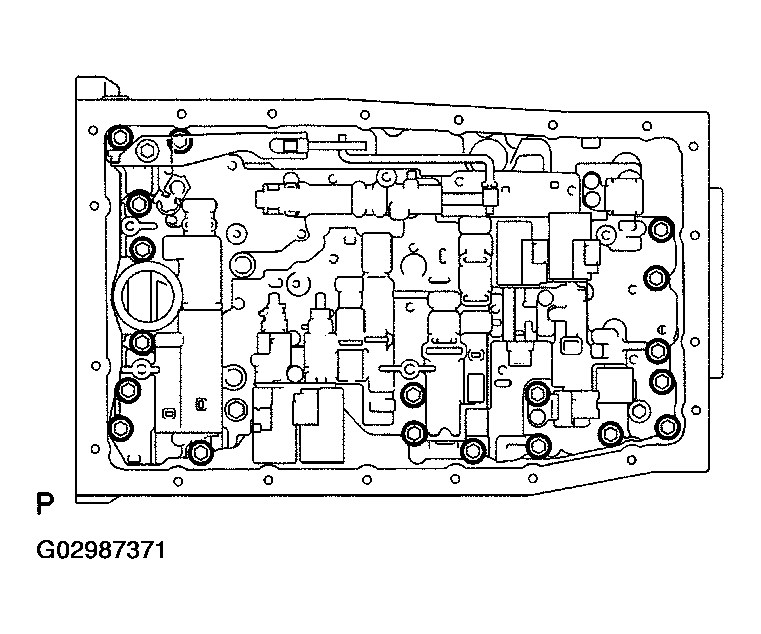

Fig 5: Locating Valve Body Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

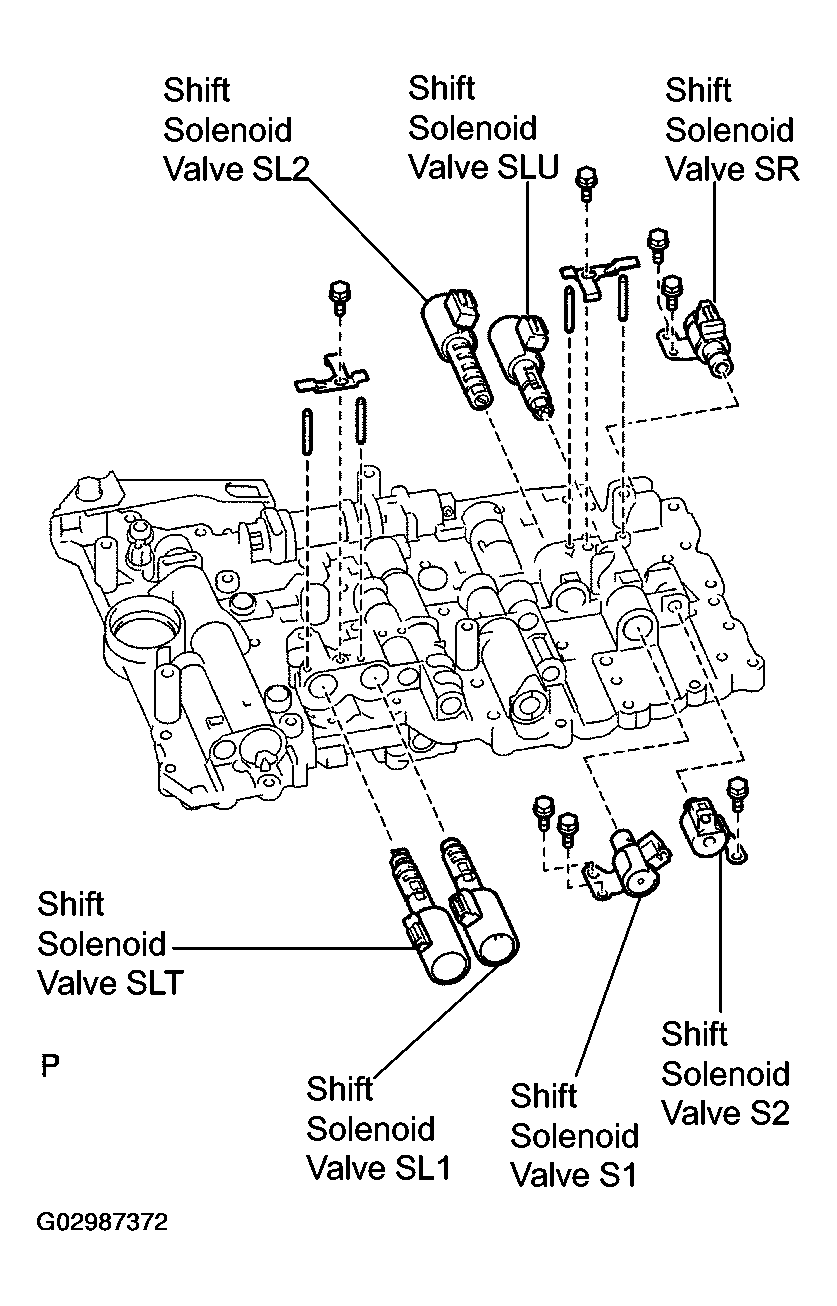

1. Remove the 2 bolts and the shift solenoid valve SR.
2. Remove the 3 bolts and the shift solenoid valve S1 and S2.
3. Remove the 2 bolts, 2 solenoid lock plates and the 4 straight pins.
4. Remove the shift solenoid SL2 and the shift solenoid valve SLU.
5. Remove the shift solenoid SL1 and the shift solenoid valve SLT.
6. Remove the O-ring from the solenoid valve S2.

1. Install a new O-ring to shift solenoid valve S2.
2. Install the shift solenoid SL1 and the shift solenoid valve SLT.
3. Install the shift solenoid SL2 and the shift solenoid valve SLU.
4. Install the 4 straight pins and the 2 solenoid lock plates with the 2 bolts.

   Torque: 6.4 N.m (65 kgf.cm,57 in.lbf)

5. Install the shift solenoid valve S1 and S2 with the 2 bolts.

   Torque: 10 N.m (102 kgf.cm,7 ft.lbf)

6. Install the shift solenoid valve SR with the 2 bolts.

   Torque: 6.4 N.m (65 kgf.cm,5.7 ft.lbf)

HINT:

Align the groove of the manual valve with the pin of the lever.

1. Install the 3 new drum seal gaskets to the transmission case.

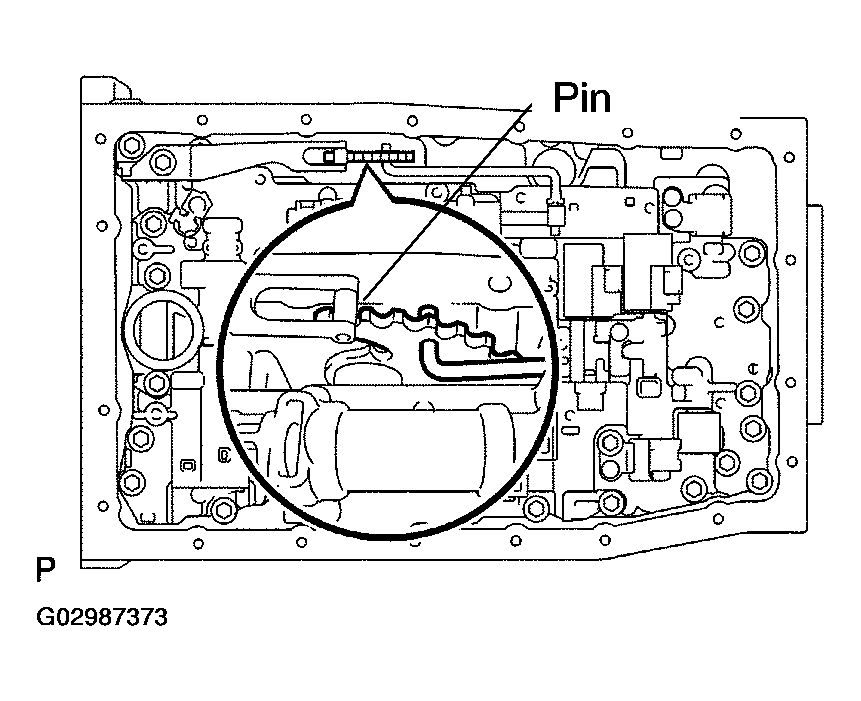

   Fig 7: Aligning Groove Of Manual Valve With Pin Of Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 19 bolts and the valve body.

   Torque:

   Bolt A & B: 11 N.m (110 kgf.cm, 8 ft.lbf)

   Bolt length:

   Bolt A: 25 mm (0.98 in.)

   Bolt B: 36 mm (1.42 in.)

Fig 8: Installing Valve Body Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the 2 temperature sensors to the valve body, and install the 2 temperature sensors clamp with the 2 bolts.

Torque:

A: 11 N.m (112 kgf.cm, 8 ft.lbf)

B: 10 N.m (100 kgf.cm, 7 ft.lbf)

Bolt length:

Bolt A: 36 mm (1.42 in.)

Bolt B: 12 mm (0.47 in.)

Fig 9: Connecting Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Sensor wire harness:

1. Install a new O-ring.
2. Install the oil strainer with the 4 bolts.

   Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

Fig 10: Installing Oil Strainer Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Remove any packing material, and be careful not to spill oil on the contacting surfaces of the transmission case and the oil pan.

1. Install a new gasket and oil pan.
2. Install the 20 bolts and oil pan.

   Torque: 4.4 N.m (45 kgf.cm, 39 in.lbf)

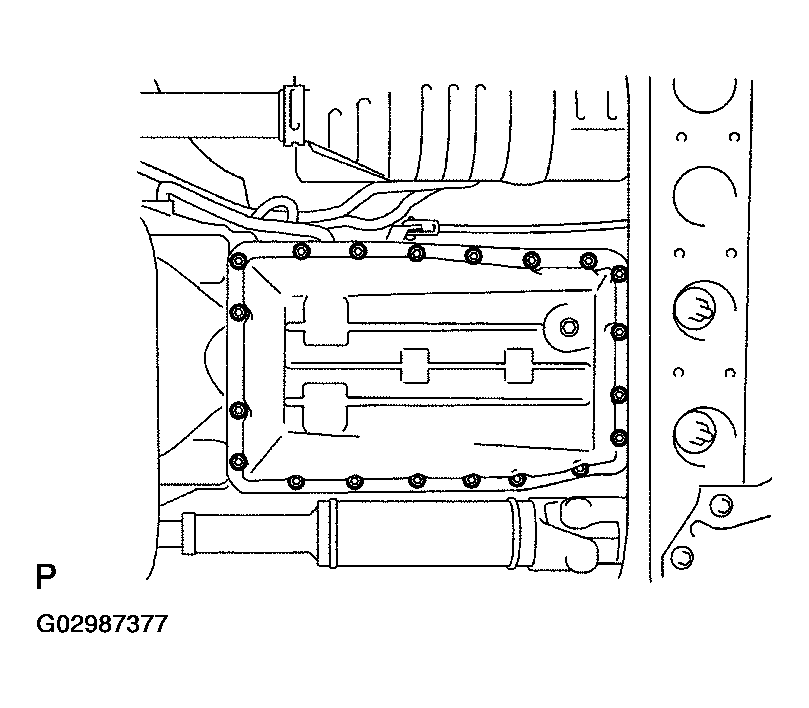

Fig 11: Installing Oil Pan Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket and a drain plug.

   Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)

2. Remove the refill plug.
3. Fill new fluid through the refill hole (See PRE-CHECK ).
