Automatic Transmission (On-Vehicle Service): Operation

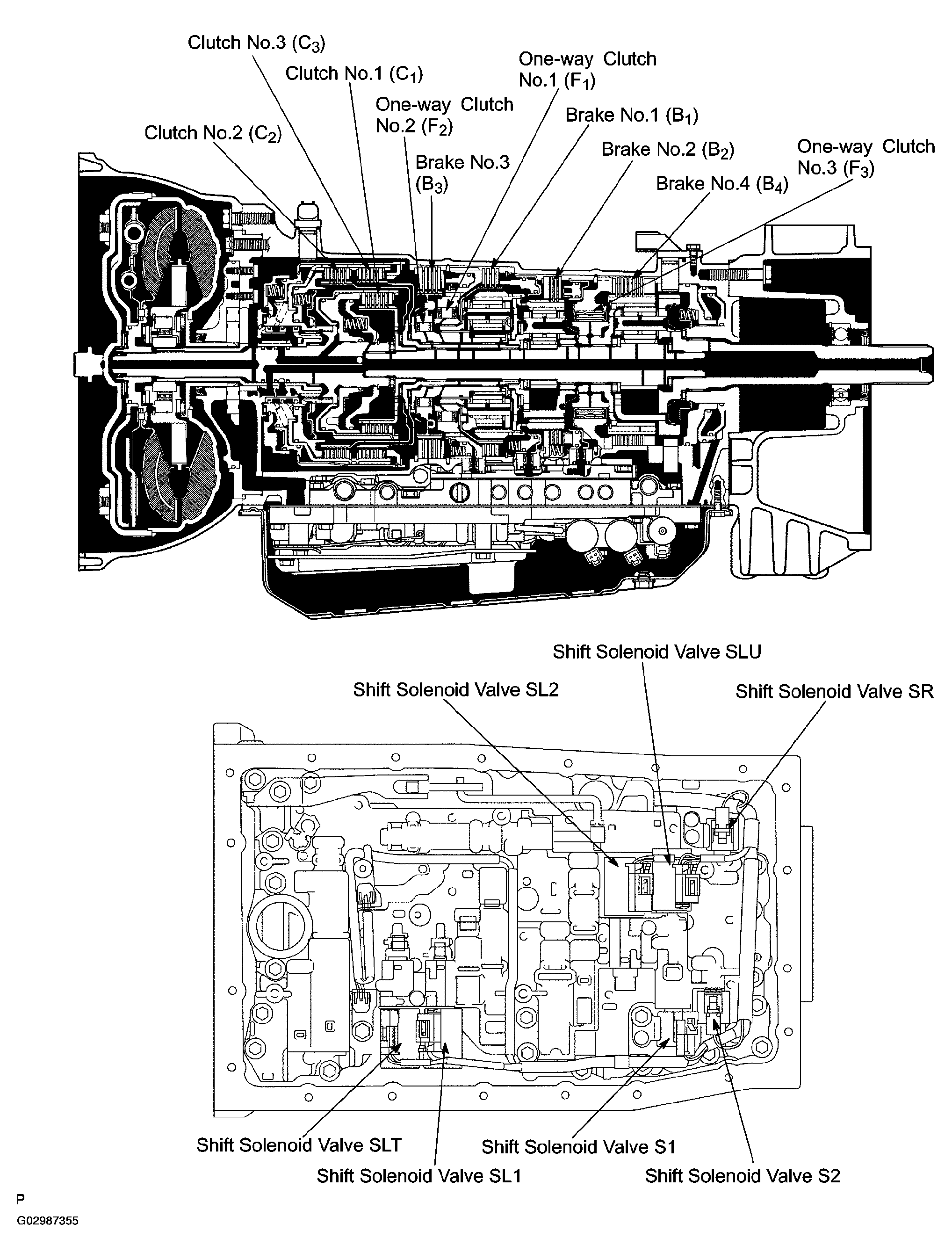

Fig 1: Identifying Automatic Transmission System Components Locations
G02987355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Operating Chart
G02987356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
