Rear Upper And Lower Control Arm: Components

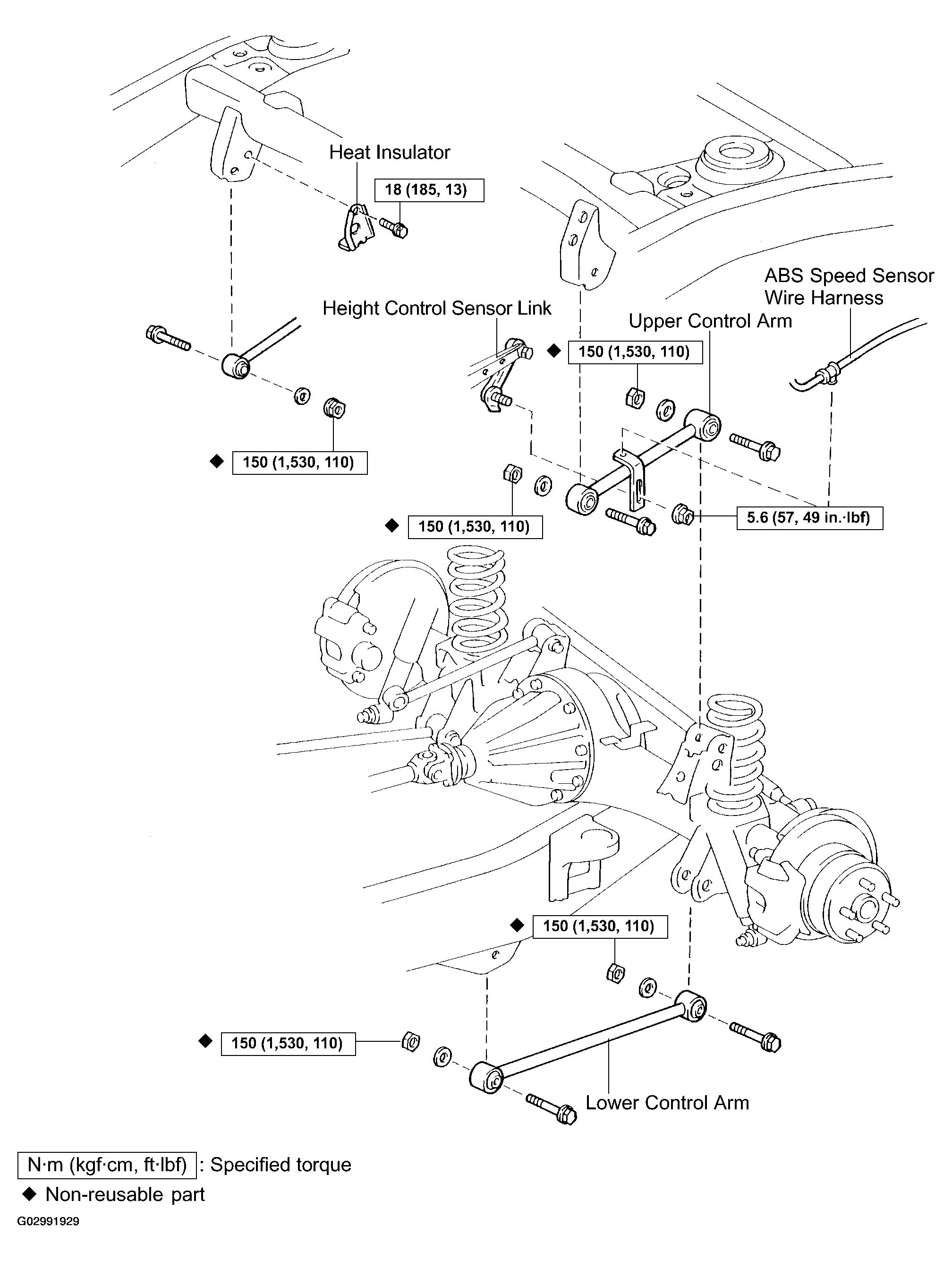

Fig 1: Exploded View Of Rear Upper And Lower Control Arm With Torque Specifications

G02991929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
