Rear Stabilizer Bar: Components

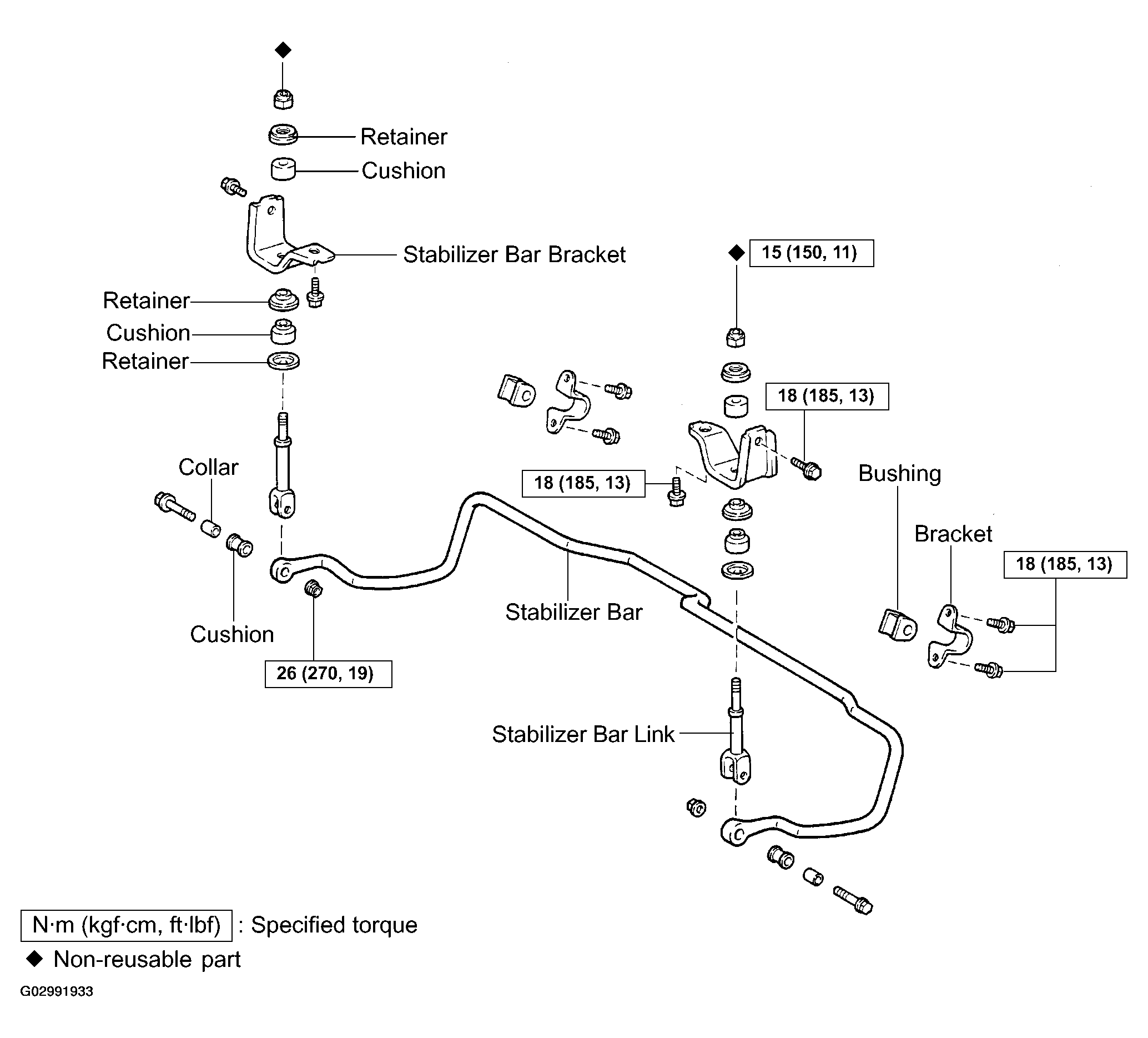

Fig 1: Exploded View Of Rear Stabilizer Bar With Torque Specifications

G02991933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
