Rear Axle Shaft: Components

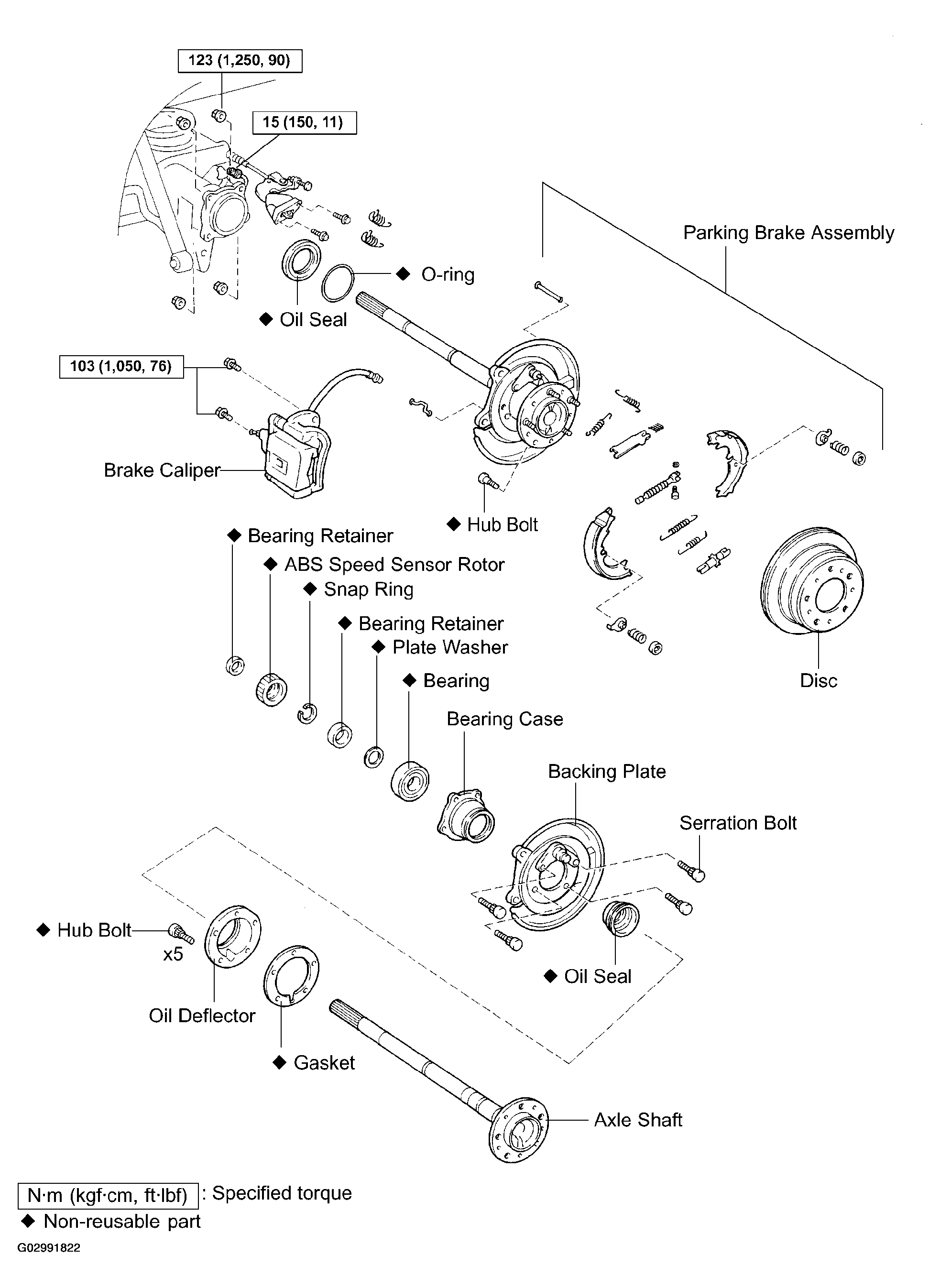

Fig 1: Exploded View Of Rear Axle Shaft With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
