Pump Attenuator: Components

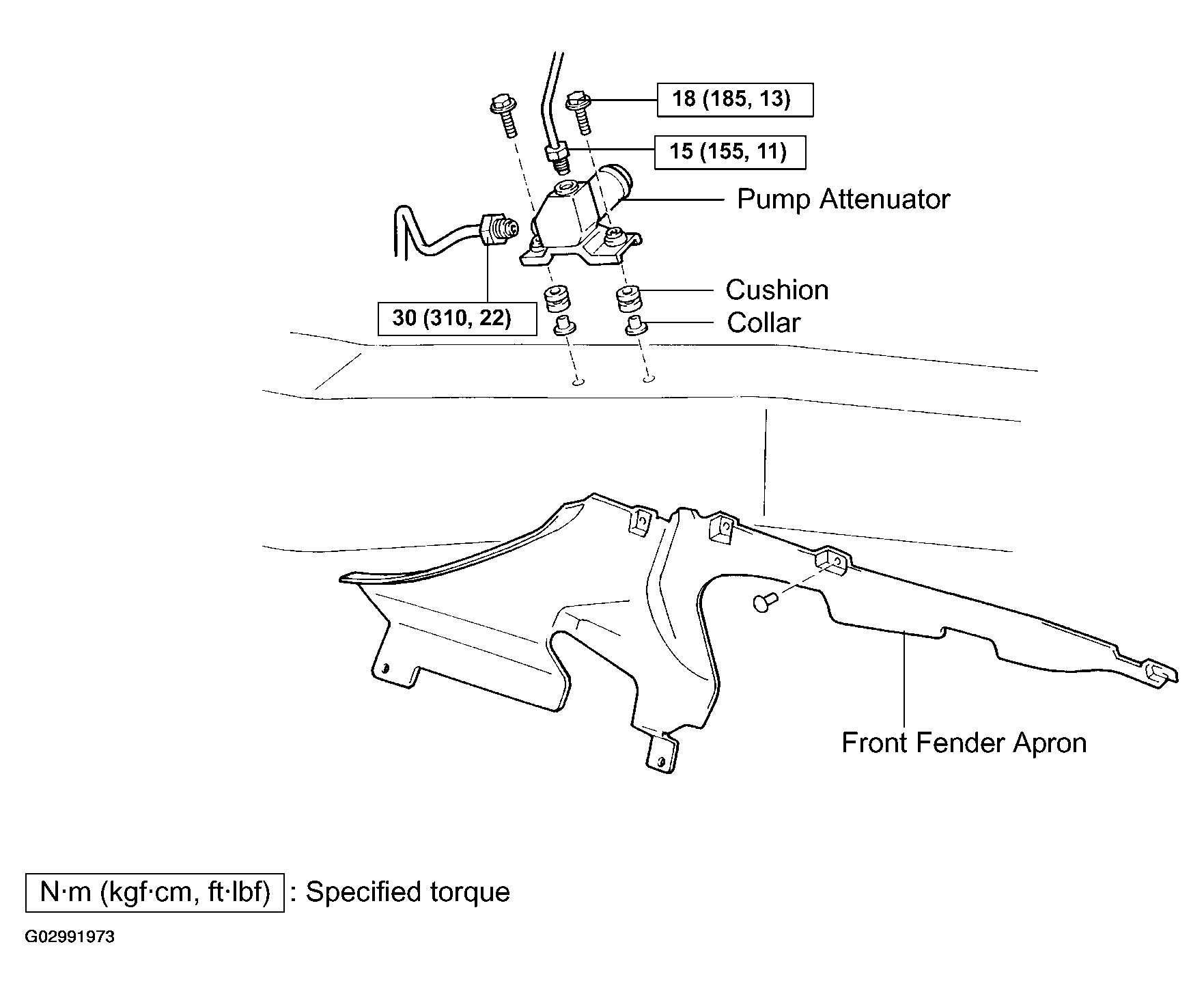

Fig 1: Exploded View Of Pump Attenuator With Torque Specifications

G02991973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
