Front Lower Suspension Arm: Components

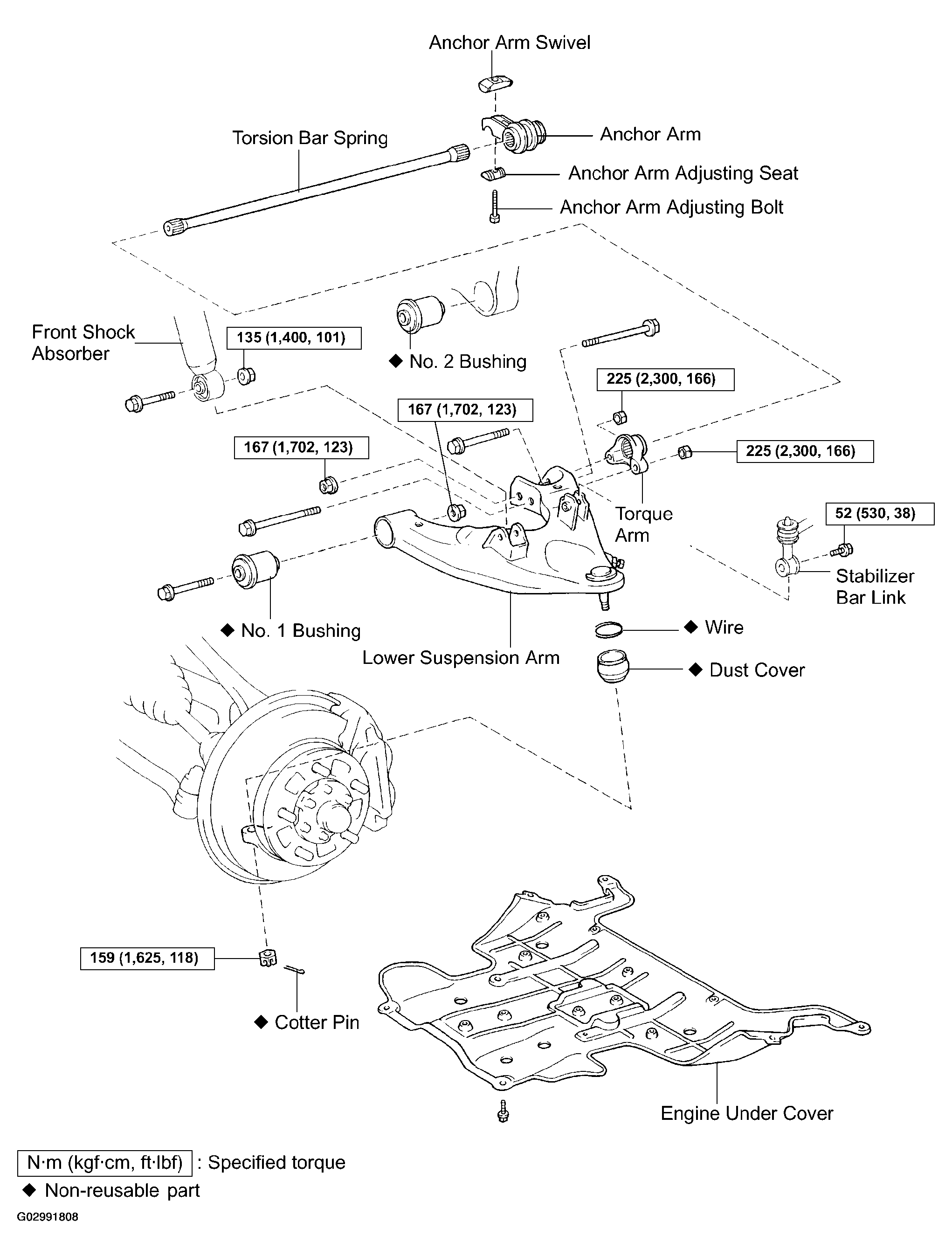

Fig 1: Exploded View Of Front Lower Suspension Arm With Torque Specifications

G02991808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
