Front Differential Carrier: Components

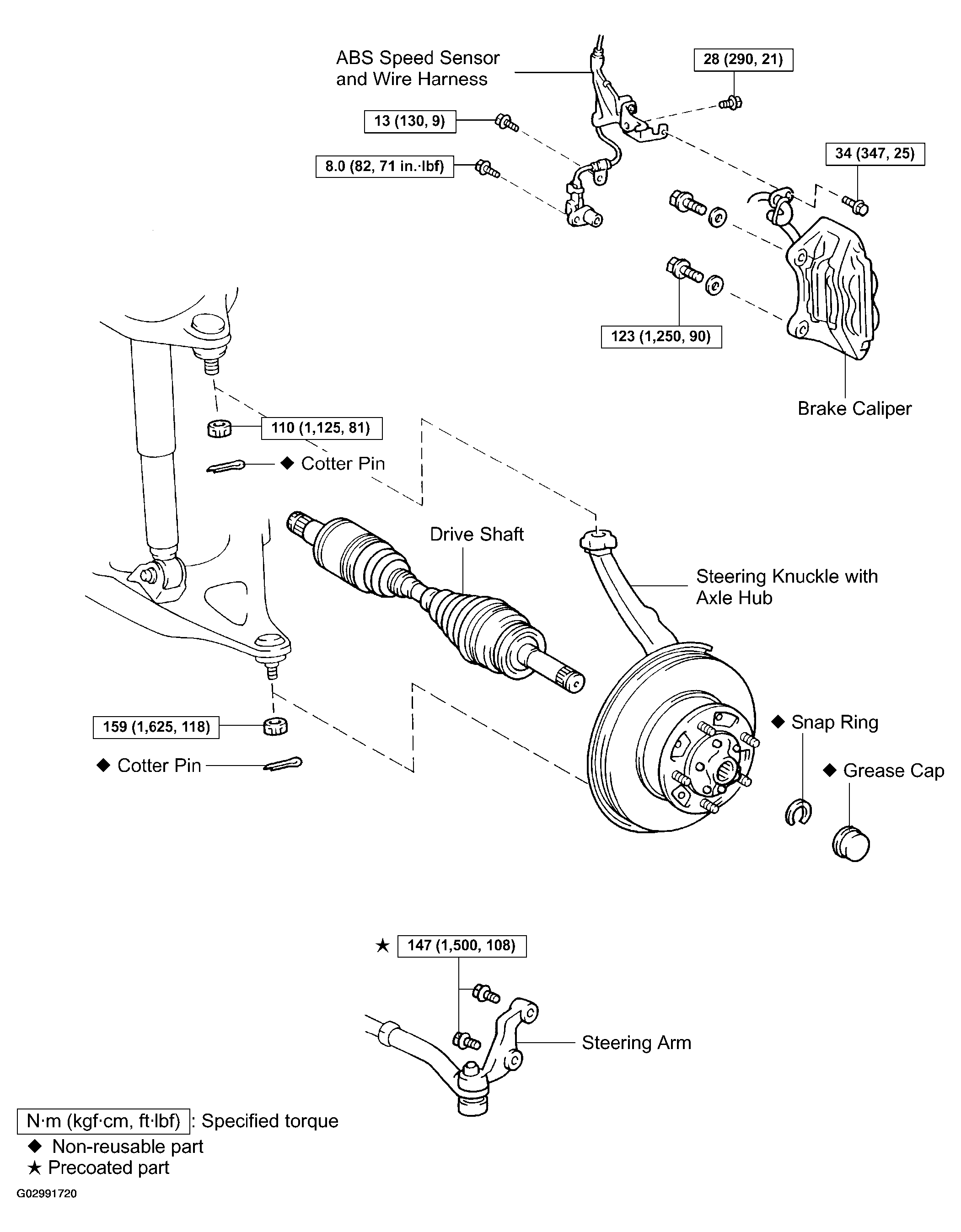

Fig 1: Exploded View Of Front Differential Carrier With Torque Specifications (1 Of 3)
G02991720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

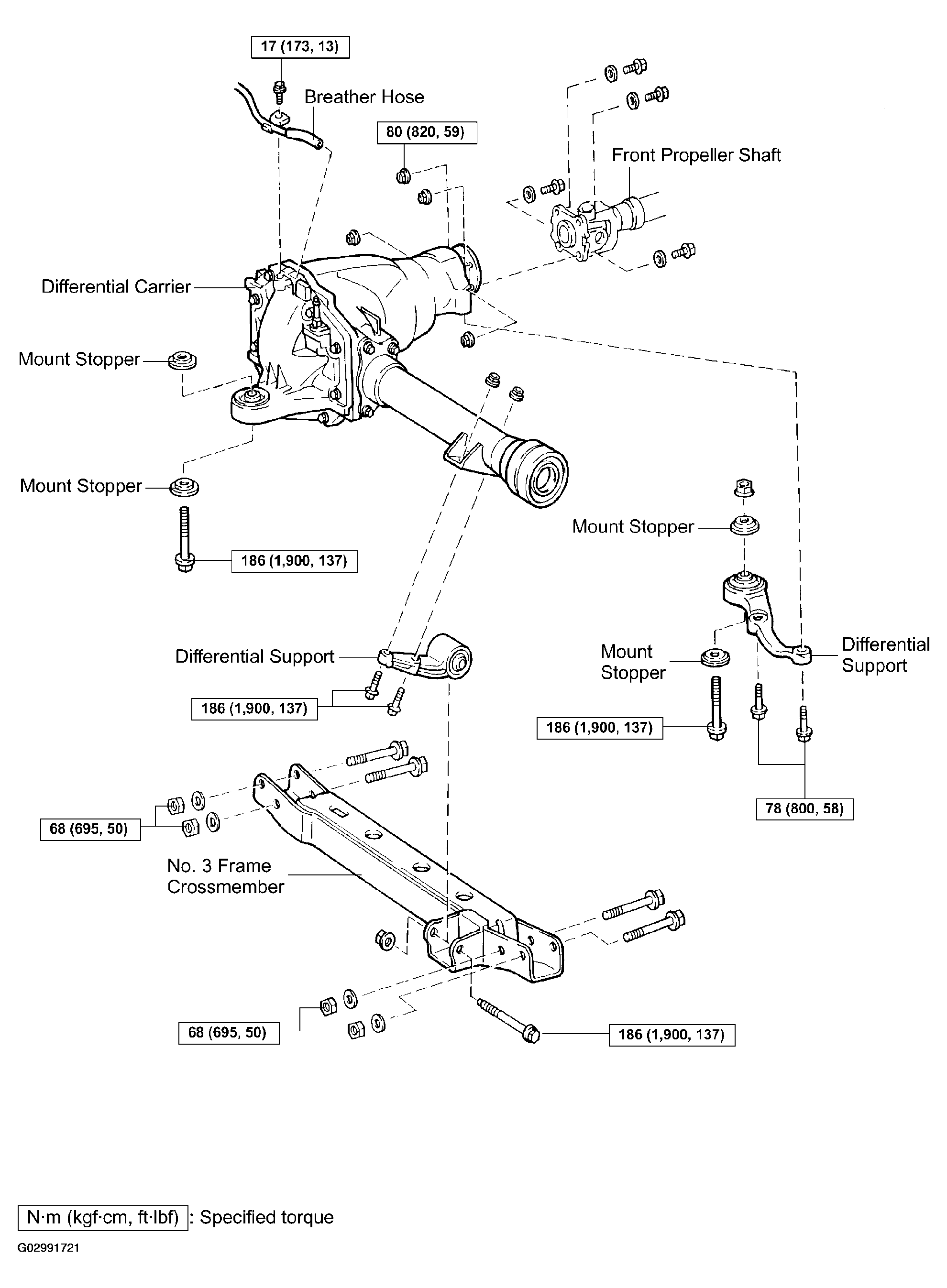

Fig 2: Exploded View Of Front Differential Carrier With Torque Specifications (2 Of 3)
G02991721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

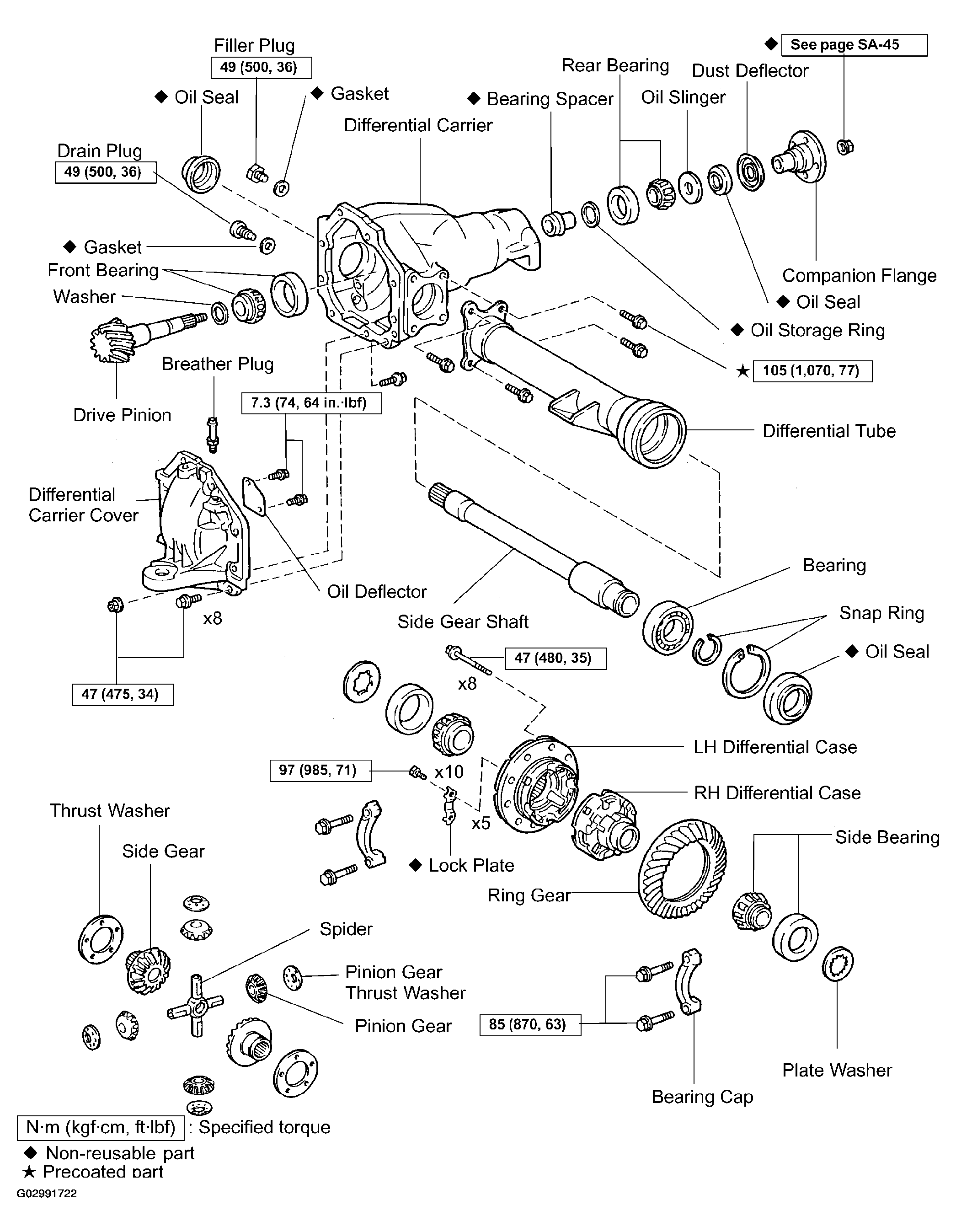

Fig 3: Exploded View Of Front Differential Carrier With Torque Specifications (3 Of 3)
G02991722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
