Front Axle Hub: Removal

REMOVE FRONT WHEEL
REMOVE BRAKE CALIPER
1. Remove the bolt and disconnect the flexible hose from the steering knuckle.
2. Remove the 2 bolts, washers and brake caliper.
3. Support the brake caliper securely.
Fig 1: Identifying Brake Caliper Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLANGE
1. Using a screwdriver and hammer, remove the grease cap from the flange.

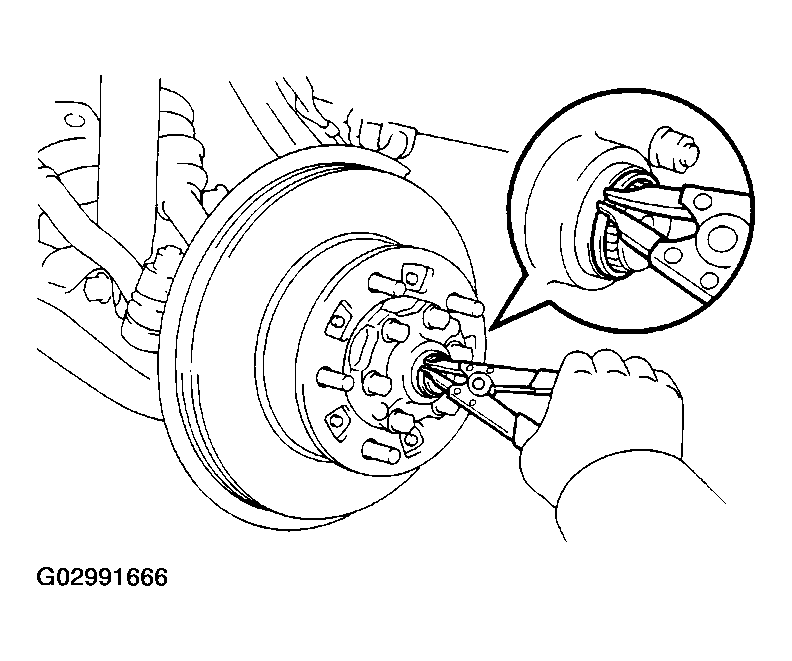

2. Using a snap ring expander, remove the snap ring.

  Fig 2: Removing Snap Ring Using Snap Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 nuts and washers.
4. Install the nuts temporarily to protect the threads of the stud bolts.

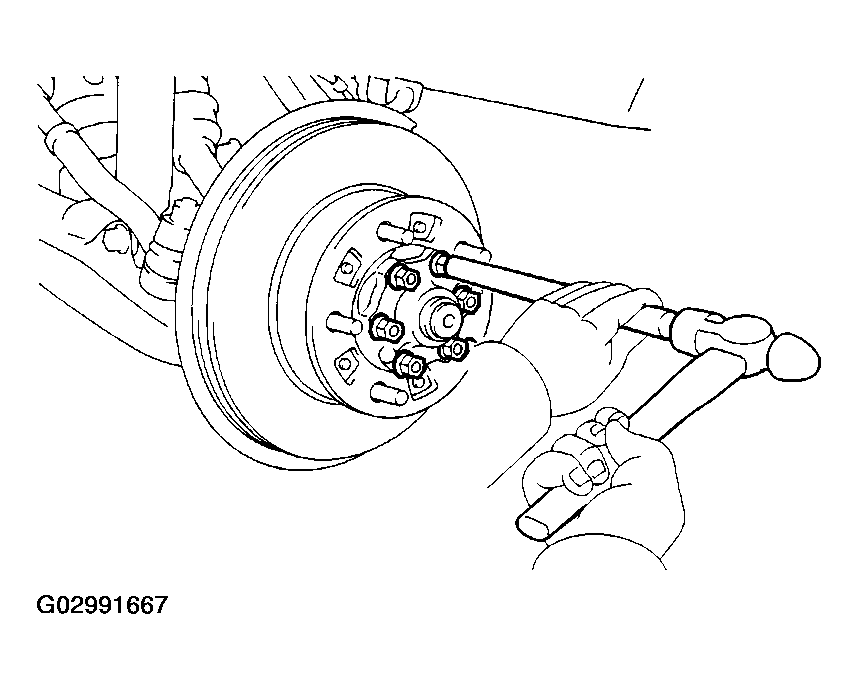

5. Using a brass bar and hammer, tap on the bolt heads and remove the 6 nuts and cone washers.

  Fig 3: Taping On Bolt Heads Using Brass Bar And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the flange and gasket.
REMOVE AXLE HUB WITH DISC
1. Using a screwdriver, release the lock washer.
2. Using SST, remove the lock nut.
  SST 09607-60020
3. Remove the lock washer.

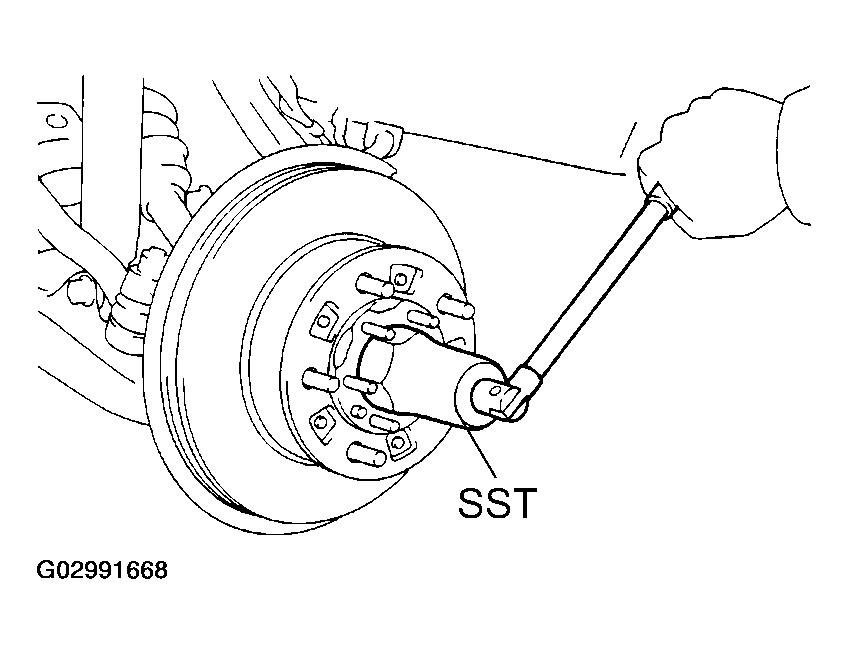

4. Using SST, remove the adjusting nut.
  SST 09607-60020

  Fig 4: Removing Adjusting Nut Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the axle hub with disc.
  NOTE: Be careful not to damage the ABS speed sensor rotor and oil seal.
6. Remove the claw washer and bearing from the axle hub.
