Damping Force Control Actuator: Components

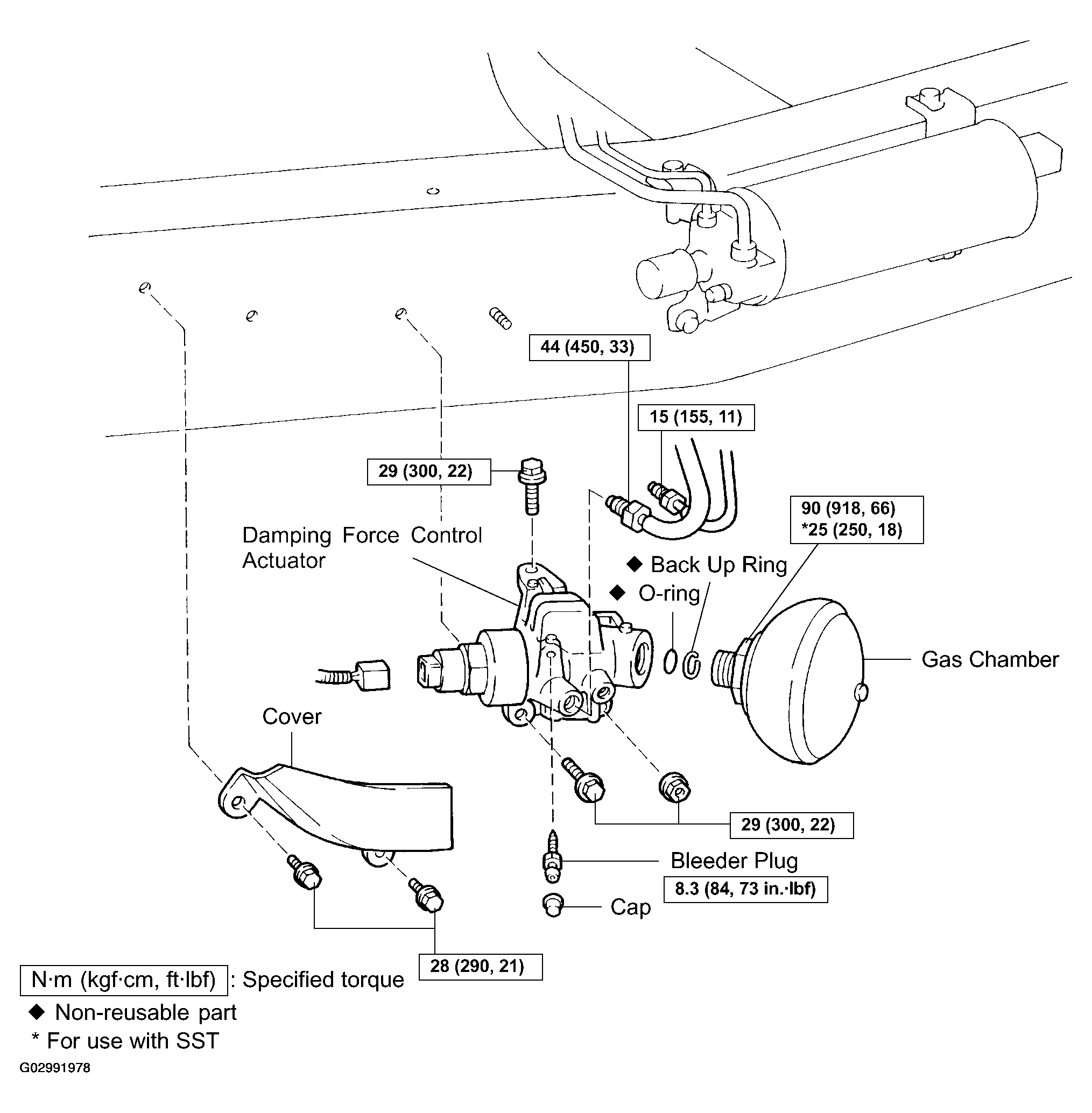

Fig 1: Exploded View Of Damping Force Control Actuator With Torque Specifications

G02991978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
