Coil Spring And Rear Shock Absorber: Components

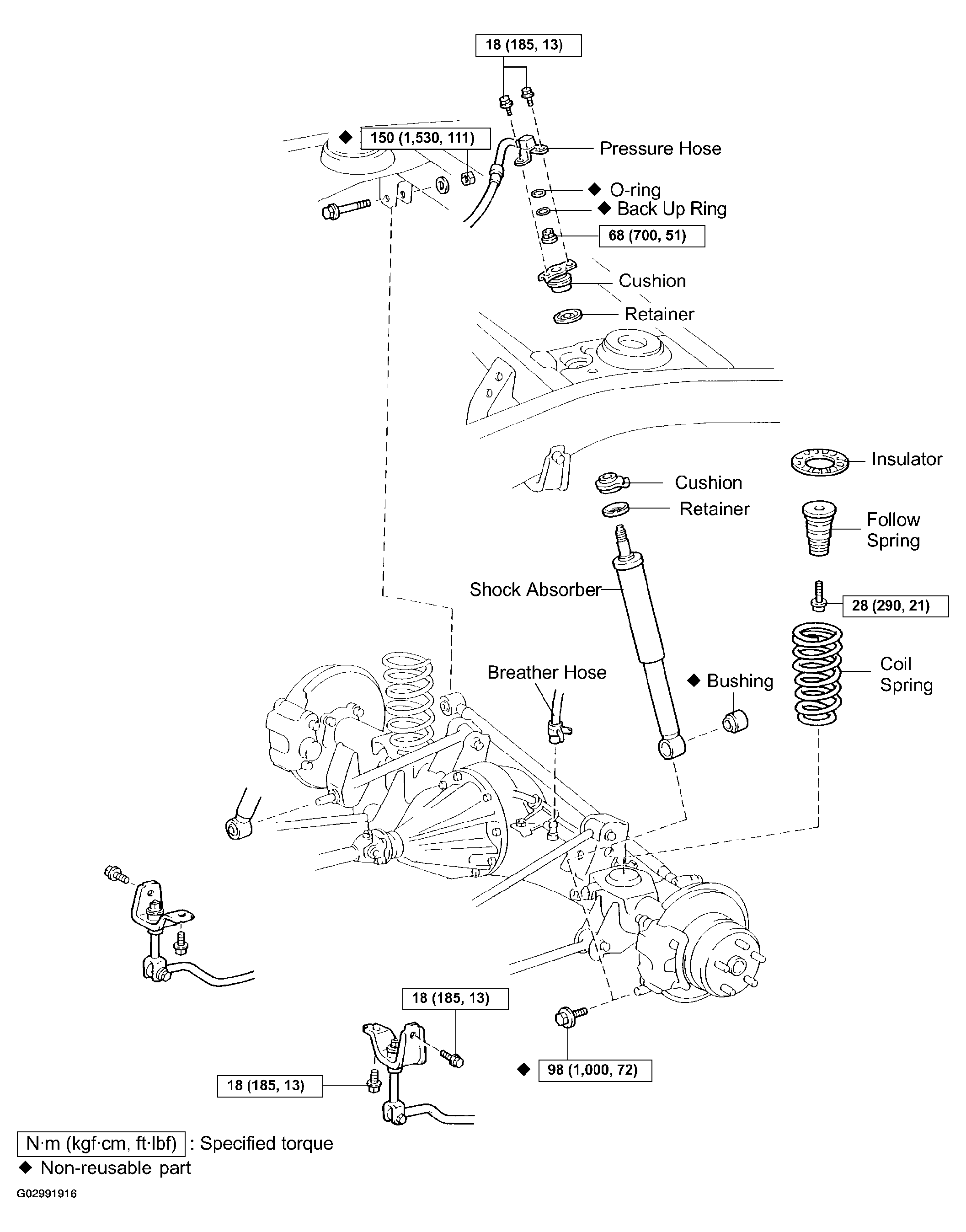

Fig 1: Exploded View Of Coil Spring And Rear Shock Absorber With Torque Specifications

G02991916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
