Active Height Control Pump & Motor: Components

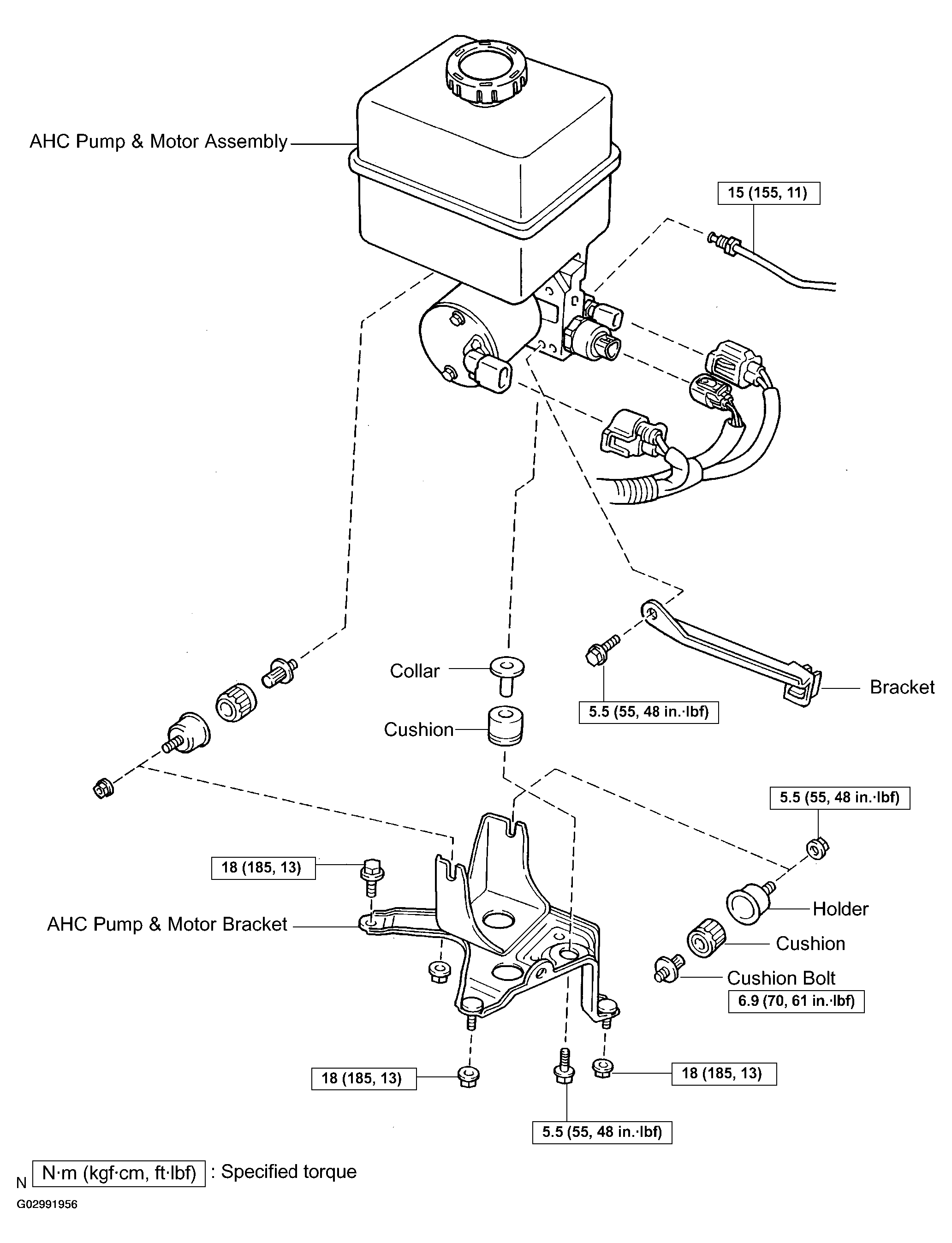

Fig 1: Exploded View Of ACTIVE HEIGHT CONTROL PUMP And MOTOR With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

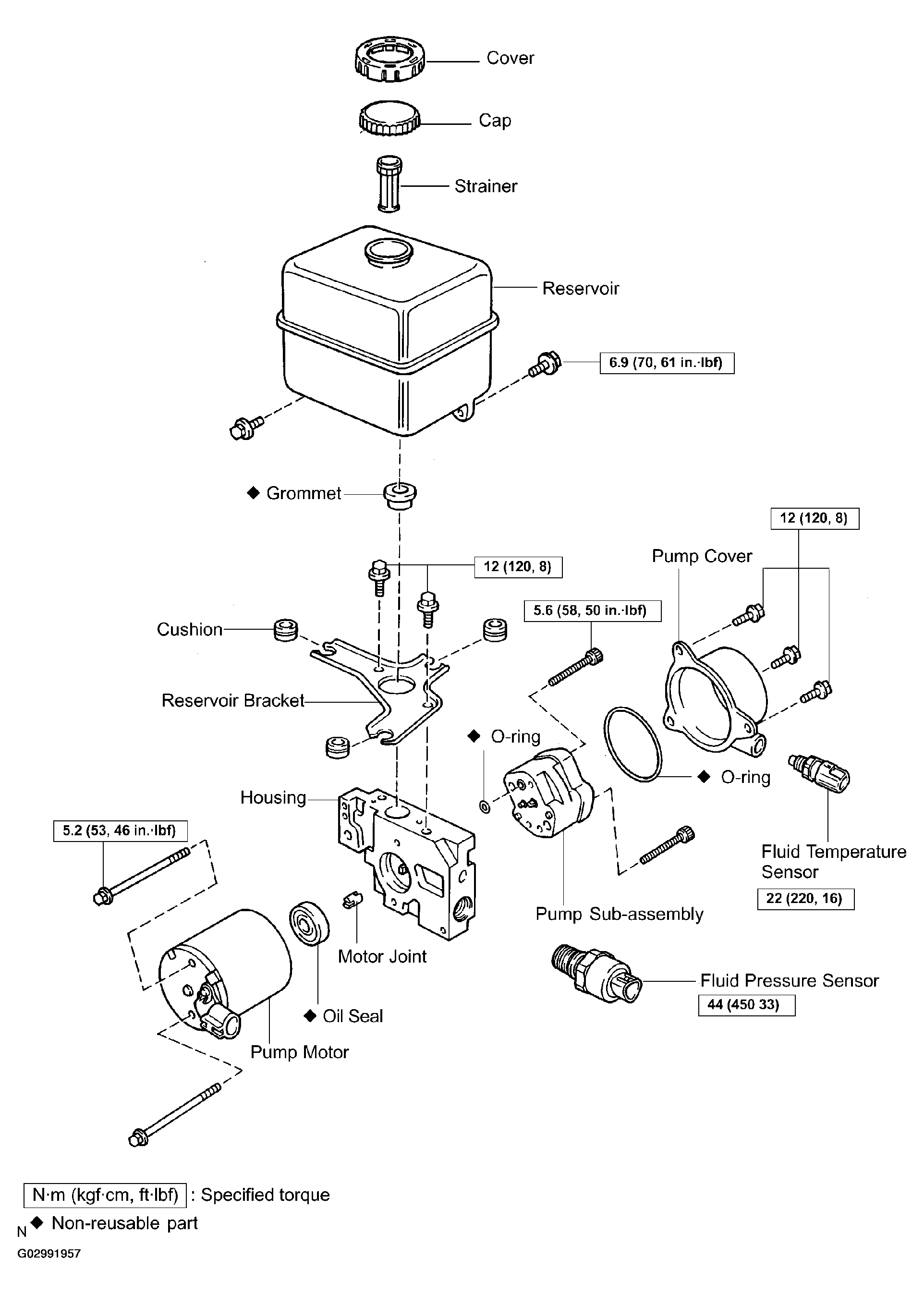

Fig 2: Exploded View Of ACTIVE HEIGHT CONTROL PUMP And MOTOR With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
