Monitor Strategy

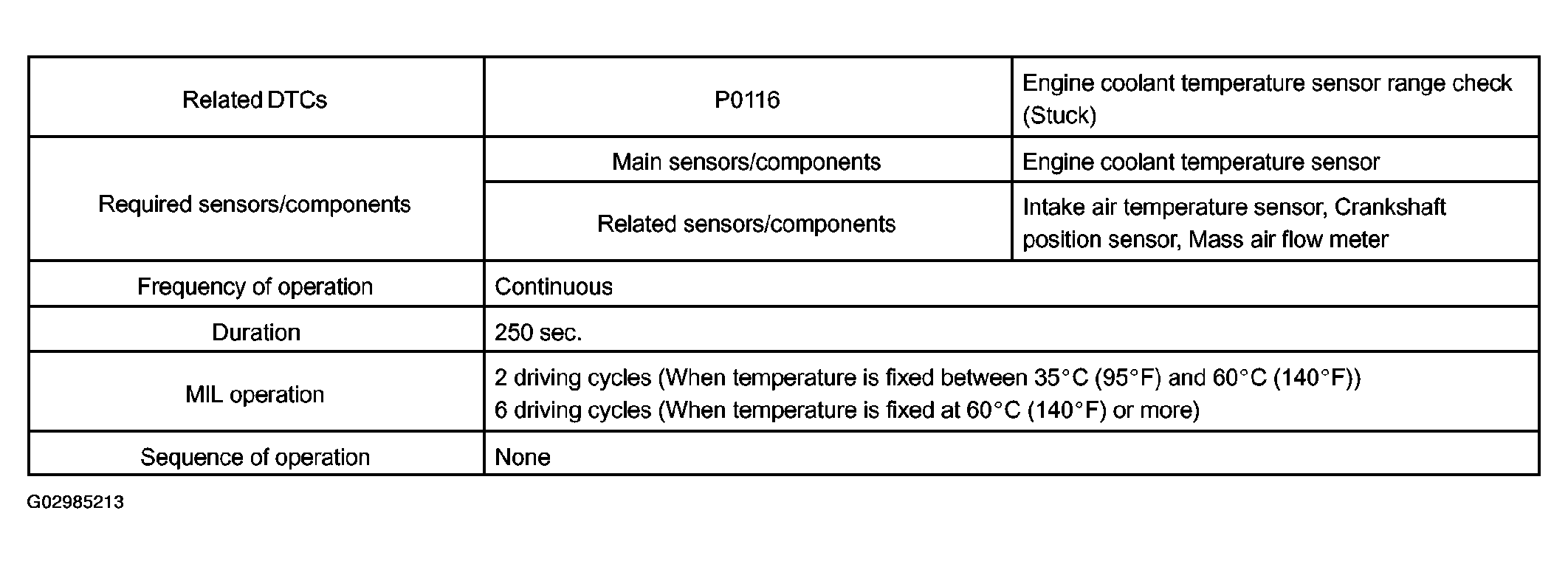

Fig 1: Monitor Strategy Chart
G02985213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
