DTC P0110: Intake Air Temperature Circuit, P0112: Intake Air Temperature Circuit Low Input, P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

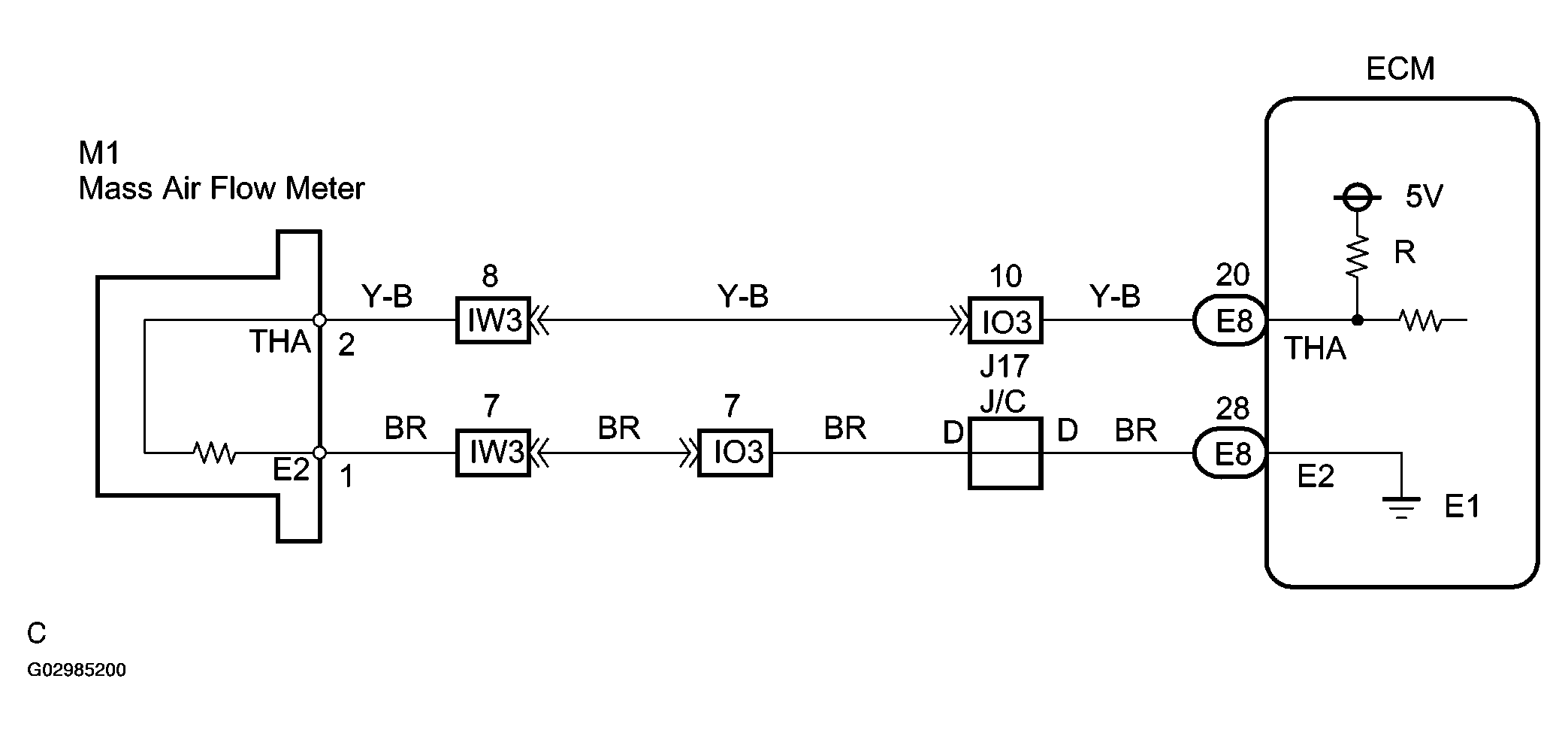

Fig 1: WIRING DIAGRAM - Intake Air Temperature Circuit
G02985200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
