Inspect Fuel Tank And Line

1. Check the fuel lines from cracks or leakage, and all connections for deformation.
Fig 1: Checking Fuel Lines From Cracks Or Leakage
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the fuel tank vapor vent system hoses and all connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
4. Check the filler neck for damage or fuel leakage.
5. Hose and pipe connections are as shown in the illustration.

Fig 2: Connecting House And Pipe

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

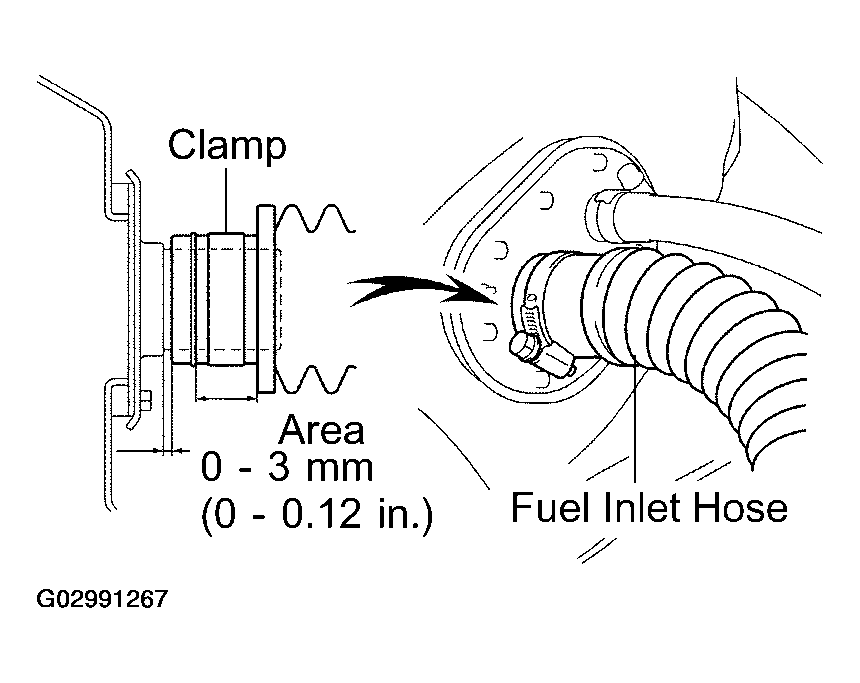

Fig 3: Installing Clamp Fuel Inlet House

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If a problem is found, repair or replace the parts as necessary.
