Engine Mechanical: Starter: Starting: Starter: Removal

  1. REMOVE V-BANK COVER
  2. REMOVE INTAKE AIR CONNECTOR
  3. REMOVE INTAKE MANIFOLD ASSEMBLY

    (See  REMOVAL  )

  4. REMOVE STARTER
    1. Remove the 2 bolts holding the starter to the cylinder block.
    2. Disconnect the starter from the cylinder block.

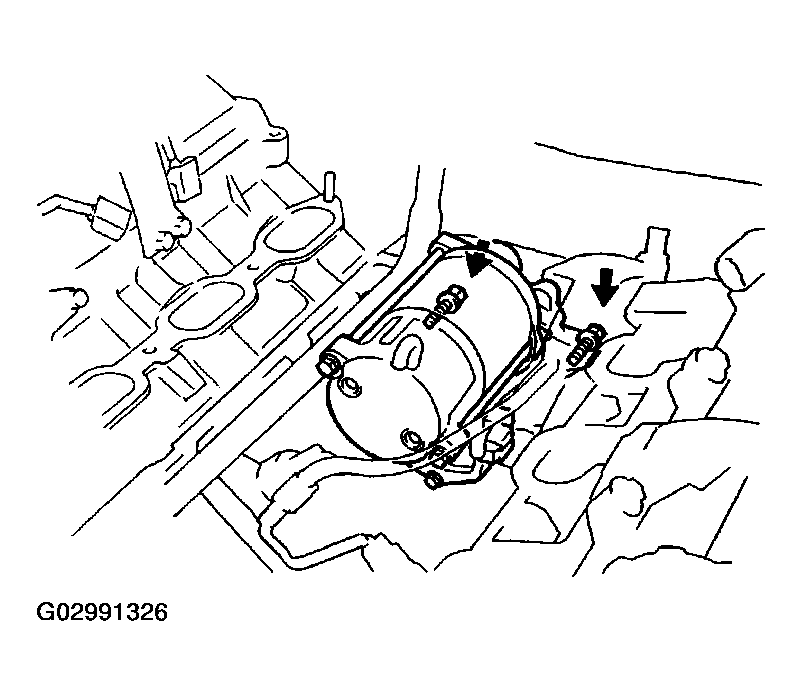

      Fig 1: Disconnecting Starter From Cylinder Block
      G02991326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the starter connector.
    4. Remove the nut, bolt and disconnect the starter wire.
    5. Remove the bolt, and disconnect the engine wire protector from the starter.

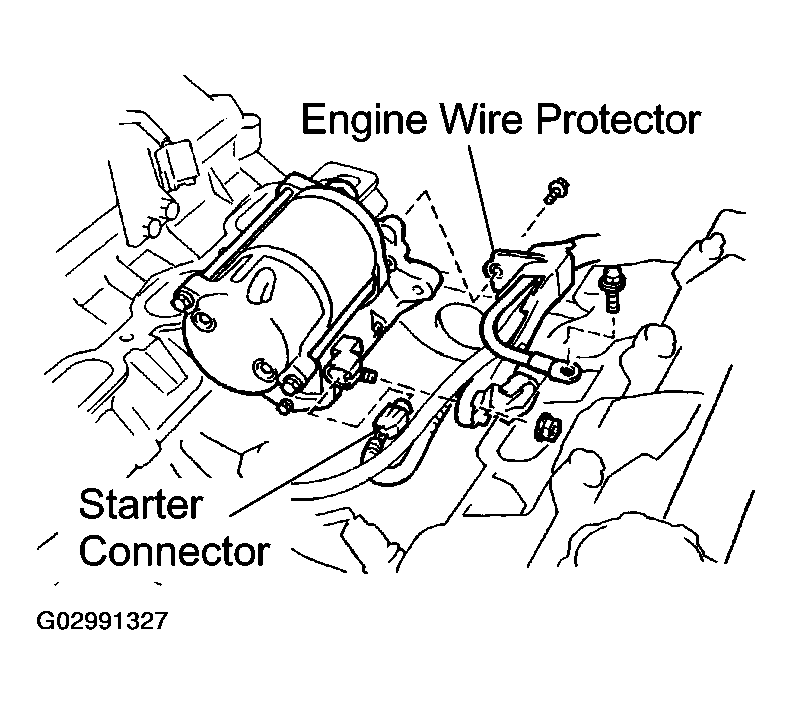

      6. Fig 2: Disconnecting Starter Connector
      G02991327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the starter.
