Oil Pump: Installation

  1. INSTALL OIL PUMP
    1. Remove any old packing (FIPG) material, and be careful not to drop any oil on the contact surfaces of the oil pump and the cylinder block.
      • Using a razor blade and a gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
      • Thoroughly clean all components to remove all the loose material.
      • Using a non-residue solvent, clean the both sealing surfaces.
    2. Apply seal packing to the oil pump as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

      NOTE: Avoid applying an excessive seal packing to the surface. Be particularly careful near oil passage.
      • Install a nozzle that is cut to a 2 -3 mm (0.08- 0.12 in.) opening.
      • Parts must be assembled within 5 minutes after the seal packing application. Otherwise the material must be removed and reapplied.
      • Immediately remove the nozzle from the tube and reinstall the cap.

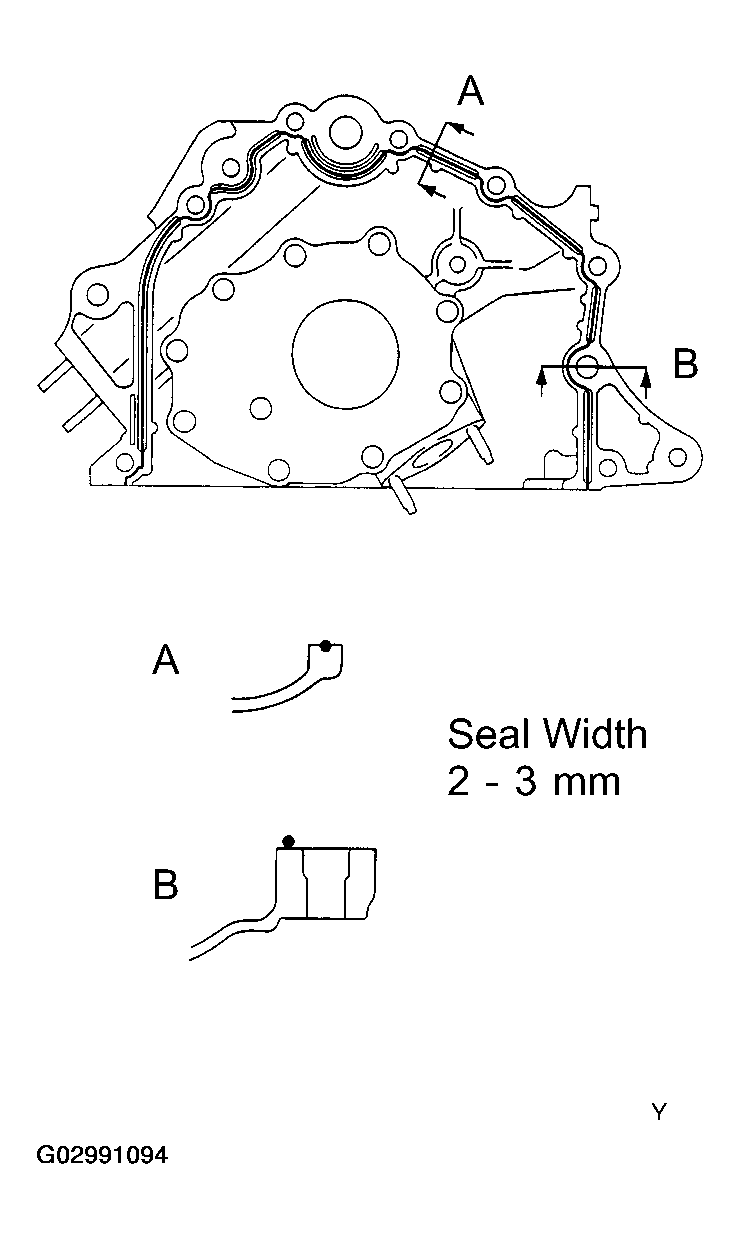

      • Fig 1: Applying Seal Packing To Oil Pump
        G02991094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install a new O-ring to the cylinder block.
    4. Engage the spline teeth of the oil pump drive gear with the large teeth of the crankshaft, and slide the oil pump on the crankshaft.

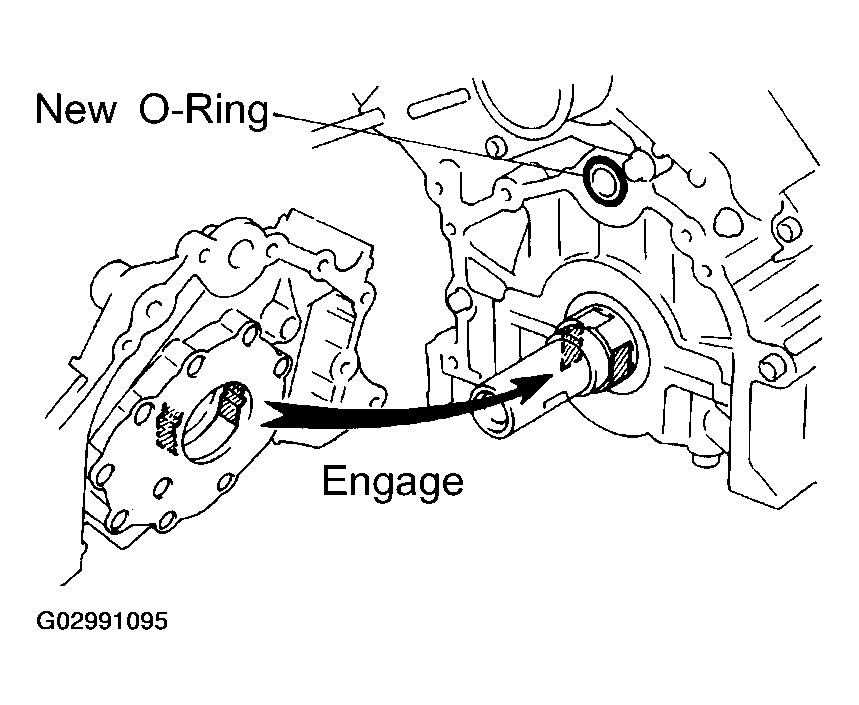

      Fig 2: Engaging Spline Teeth Of Oil Pump
      G02991095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the oil pump with the 8 bolts. Uniformly tighten the bolts in a little at a time several stages.

      Torque:

      15.5 N.m (160 kgf.cm, 11 ft.lbf)

      for 12 mm head 6 mm hexagon head

      30.5 N.m (310 kgf.cm, 22 ft.lbf) for 14 mm and

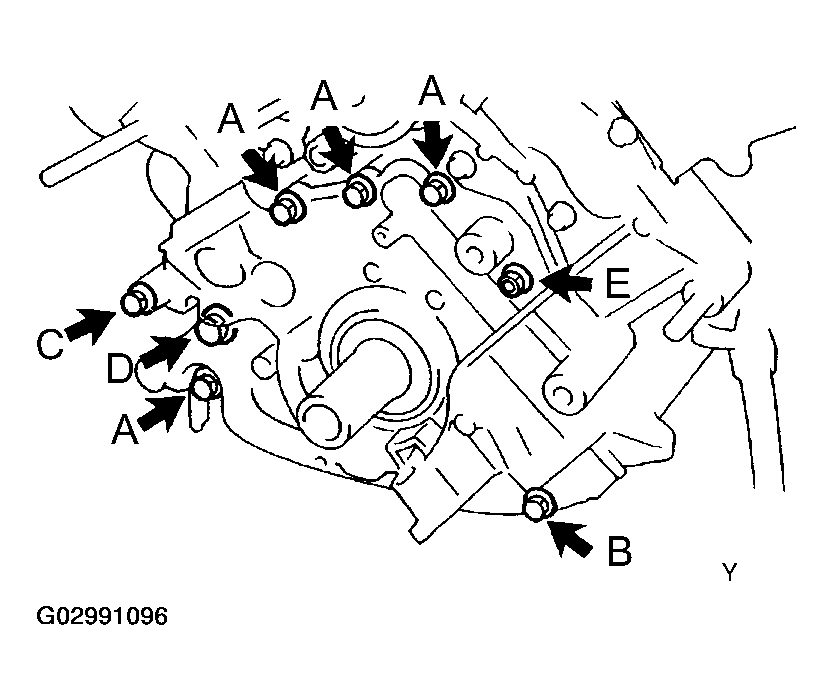

      Fig 3: Installing Oil Pump And Bolts
      G02991096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Use a 6 mm hexagon wrench for the hexagon head bolt. Bolt length:

      35 mm (1.38 in.) for A of 12 mm head

      50 mm (1.97 in.) for B of 12 mm head

      106 mm (4.17 in.) for C of 12 mm head

      40 mm (1.57 in.) for D of 14 mm head

      30 mm (1.18 in.) for E of 6 mm hexagon head

  2. INSTALL OIL STRAINER

    Install a new gasket and the oil strainer with the 2 bolts and the 2 nuts.

    Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

    HINT:

    Use bolts 12 mm (0.47 in.) in length.

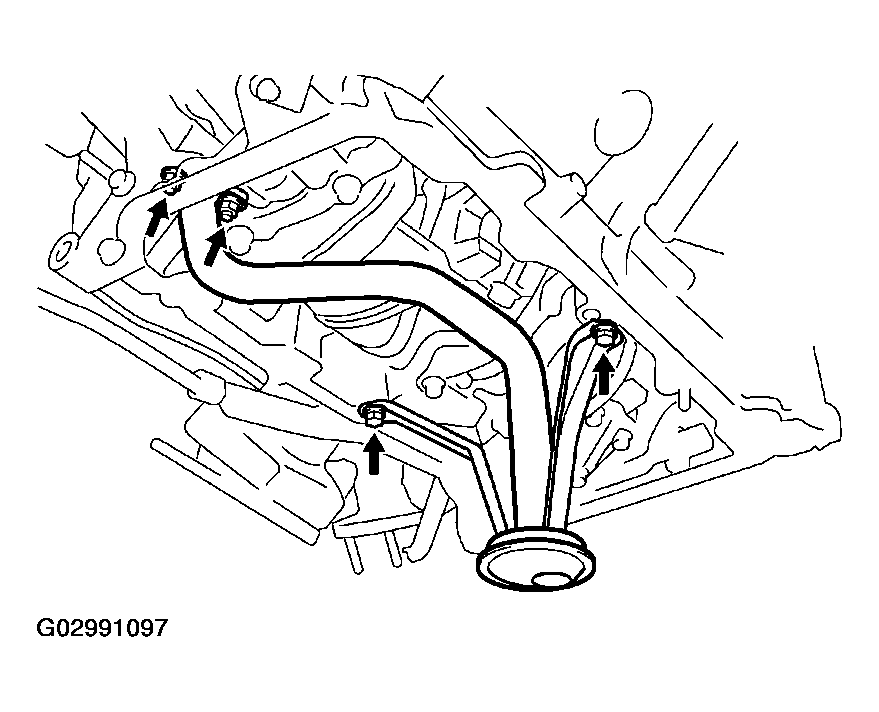

    Fig 4: Installing Oil Strainer And Bolts
    G02991097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 OIL PAN
    1. Remove any old packing (FIPG) material, and be careful not to drop any oil on the contact surfaces of the No. 1 oil pan, the cylinder block, the oil pump and the rear oil seal retainer.
      • Using a razor blade and a gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
      • Thoroughly clean all components to remove all the loose material.
      • Using a non-residue solvent, clean both sealing surfaces.
    2. Apply seal packing to the No. 1 oil pan as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

      • Install a nozzle that is cut to a 2 -3 mm (0.08- 0.12 in.) opening.
      • Parts must be assembled within 5 minutes after the seal packing application. Otherwise the material must be removed and reapplied.
      • Immediately remove the nozzle from the tube and reinstall the cap.

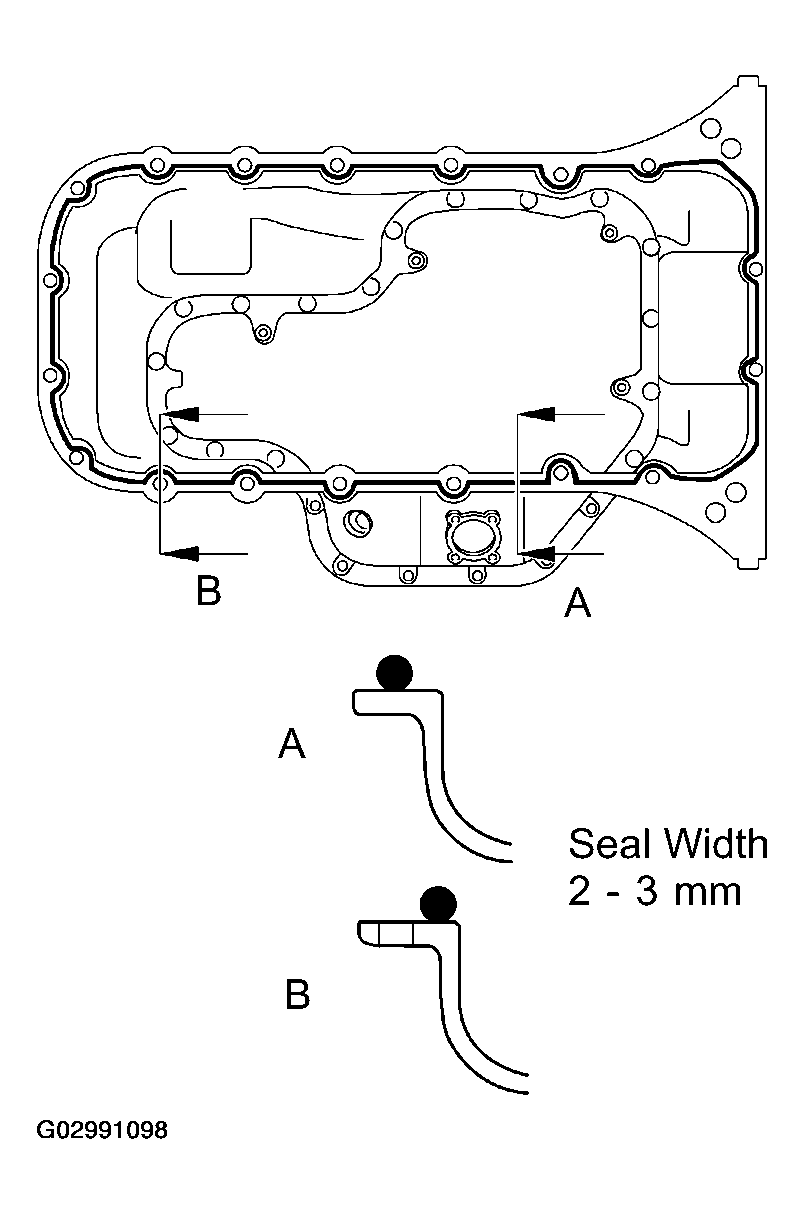

      Fig 5: Applying Seal Packing To No. 1 Oil Pan
      G02991098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the No. 1 oil pan with the 18 bolts and 2 nuts.

      HINT:

      Bolt length:

      20 mm (0.79 in.) for A of 10 mm head

      25 mm (0.98 in.) for B of 12 mm head

      60 mm (2.36 in.) for C of 12 mm head

      35 mm (1.38 in) for D of 10 mm head

      Set the No. 1 oil pan as shown in the illustration.

      NOTE: Make sure the clearance between the rear ends of the No. 1 oil pan and cylinder block is 0.2 mm (0.008 in.) or less. If the clearance is more than 0.2 mm (0.008 in.), the No. 1 oil pan will be stretched.
    4. Uniformly tighten the bolts and nuts in several passes.

      Torque:

      7.5 N.m (80 kgf.cm, 66 in.lbf) for 10 mm head

      28 N.m (290 kgf.cm, 21 ft.lbf) for 12 mm head

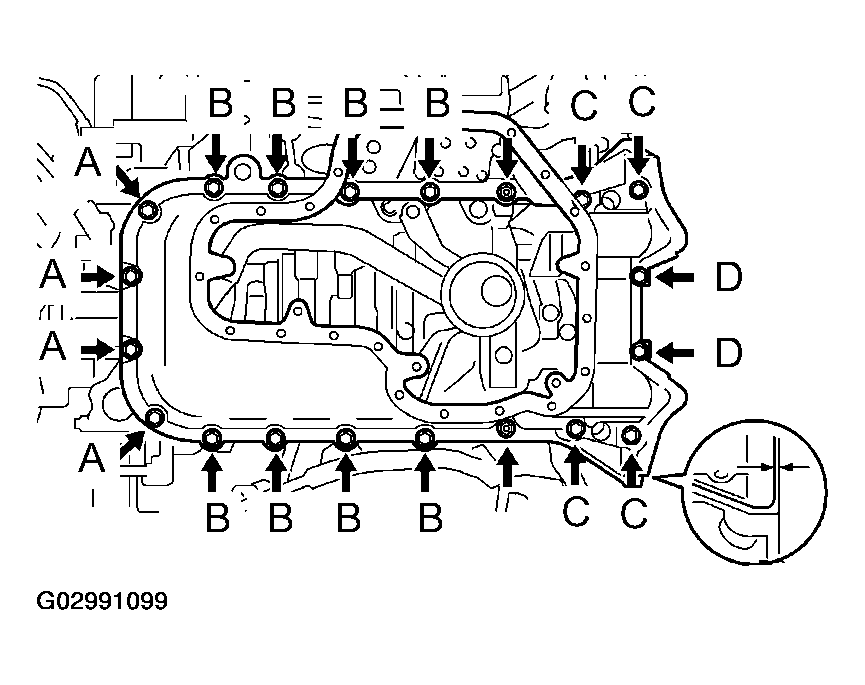

    Fig 6: Identifying Oil Pan Bolt Locations
    G02991099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL OIL PAN BAFFLE PLATE

    Install the baffle plate with the 4 bolts and 2 nuts.

    Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

    HINT:

    Use bolts 12 mm (0.55 in.) in length.

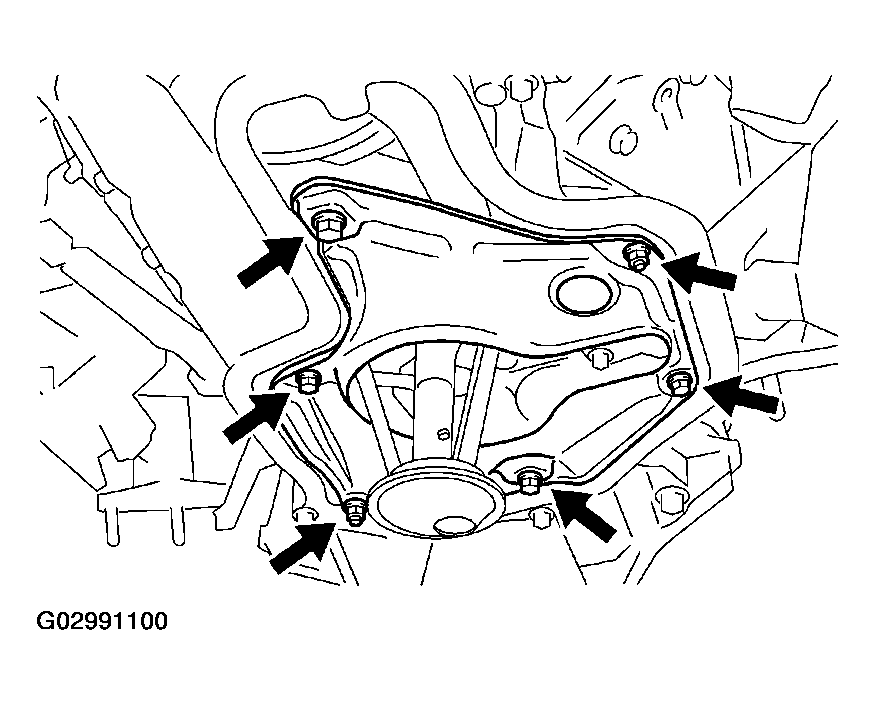

    Fig 7: Installing Baffle Plate And Bolts
    G02991100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 OIL PAN
    1. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the No. 1 and No. 2 oil pans.
      • Using a razor blade and a gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
      • Thoroughly clean all components to remove all the loose material.
      • Using a non-residue solvent, clean both sealing surfaces.
      NOTE: Do not use a solvent which will affect the painted surfaces.
    2. Apply seal packing to the No. 2 oil pan as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

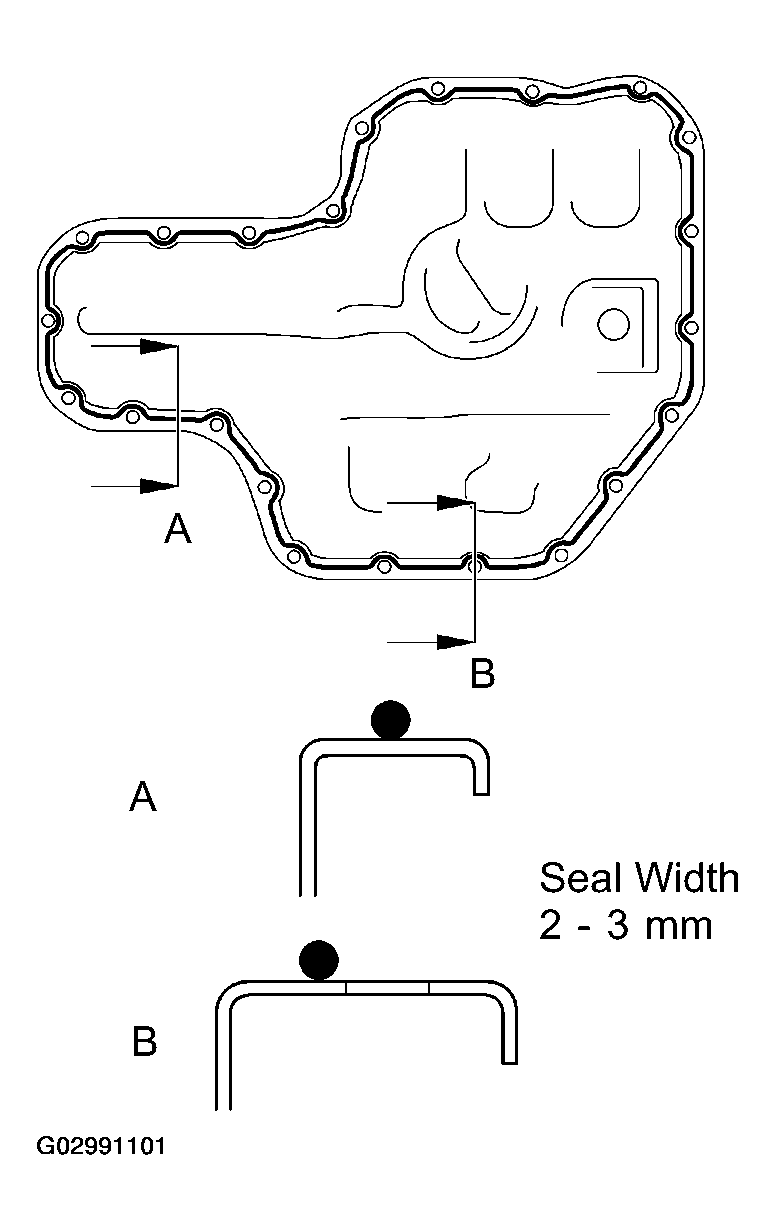

      Fig 8: Applying Seal Packing To No. 2 Oil Pan
      G02991101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Install a nozzle that is cut to a 3 - 4 mm (0.12 - 0.16 in.) opening.
      • Parts must be assembled within 5 minutes after the seal packing application. Otherwise the material must be removed and reapplied.
      • Immediately remove the nozzle from the tube and reinstall the cap.
    3. Install the No. 2 oil pan with the 20 bolts and the 2 nuts. Uniformly tighten the bolts and the nuts a little at a time in several stages.

      Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

    HINT:

    Use bolts 14 mm (0.55 in.) in length.

  6. INSTALL CRANKSHAFT POSITION SENSOR  (See INSTALLATION )
  7. INSTALL OIL FILTER, OIL COOLER AND FILTER BRACKET ASSEMBLY
    1. Install the new gasket to the oil filter bracket.
    2. Install the oil filter, the oil cooler and the filter bracket assembly with the 2 bolts and the nut.

      Torque: 18 N.m (185kgf.cm, 13 ft.lbf)

    3. Connect the oil pressure switch connector.
  8. INSTALL OIL DIPSTICK GUIDE AND DIPSTICK
    1. Install a new O-ring to the dipstick guide.
    2. Apply soapy water to the O-ring.
    3. Push in the dipstick guide end into the guide hole of the No. 1 oil pan.
    4. Install the dipstick guide with the bolt.

      Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

    5. Install the dipstick.

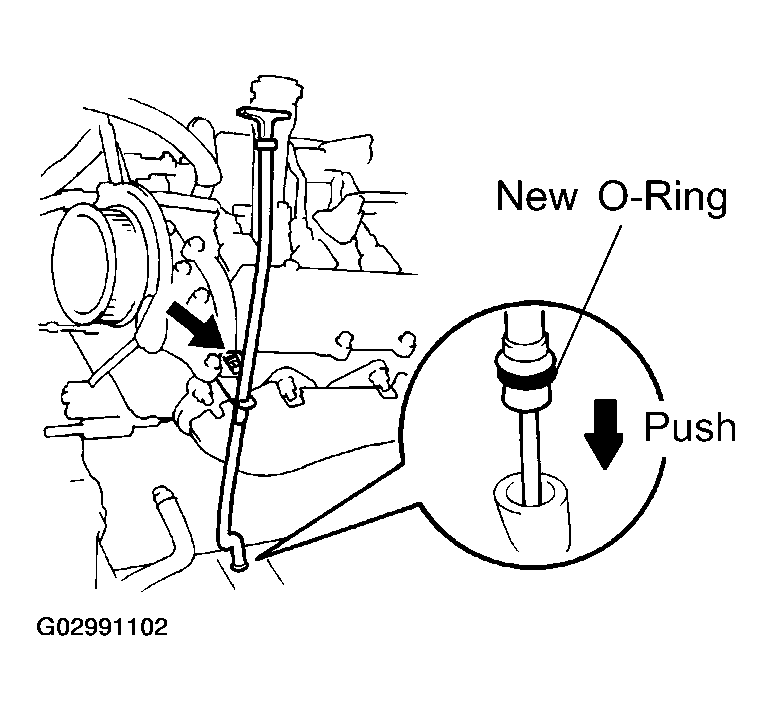

    Fig 9: Installing O-Ring To Dipstick Guide
    G02991102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL CRANKSHAFT TIMING PULLEY (See  INSTALLATION  )
  10. INSTALL NO. 1 IDLER PULLEYS (See  INSTALLATION  )
  11. INSTALL NO. 2 IDLER PULLEYS (See  INSTALLATION  )
  12. INSTALL TIMING BELT (See  INSTALLATION  )
  13. DISCONNECT ENGINE FROM ENGINE STAND
  14. INSTALL ENGINE TO VEHICLE (See  REPLACEMENT  )
