Water Pump: Components

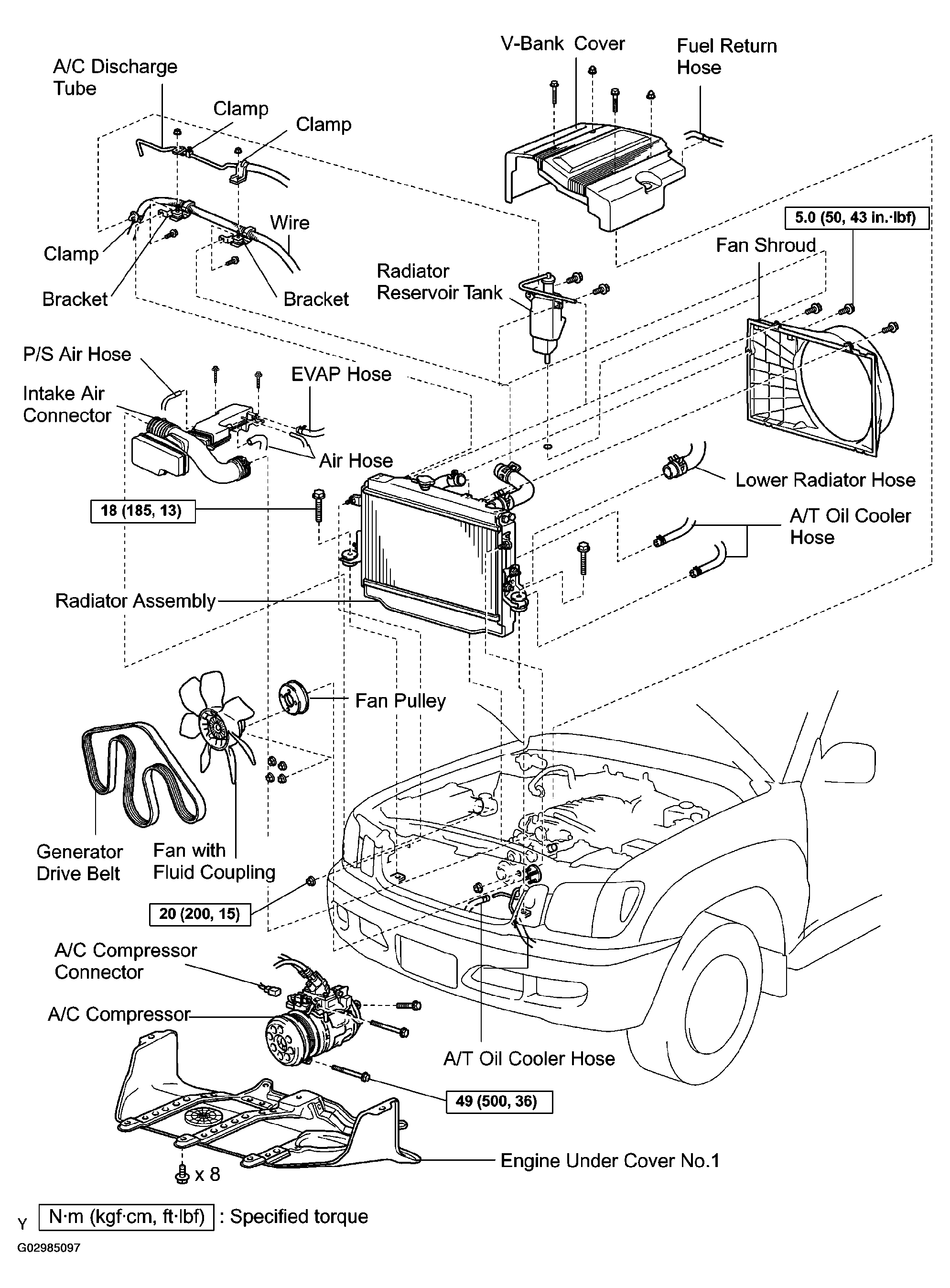

Fig 1: Exploded View Of Water Pump Components (1 Of 3)
G02985097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

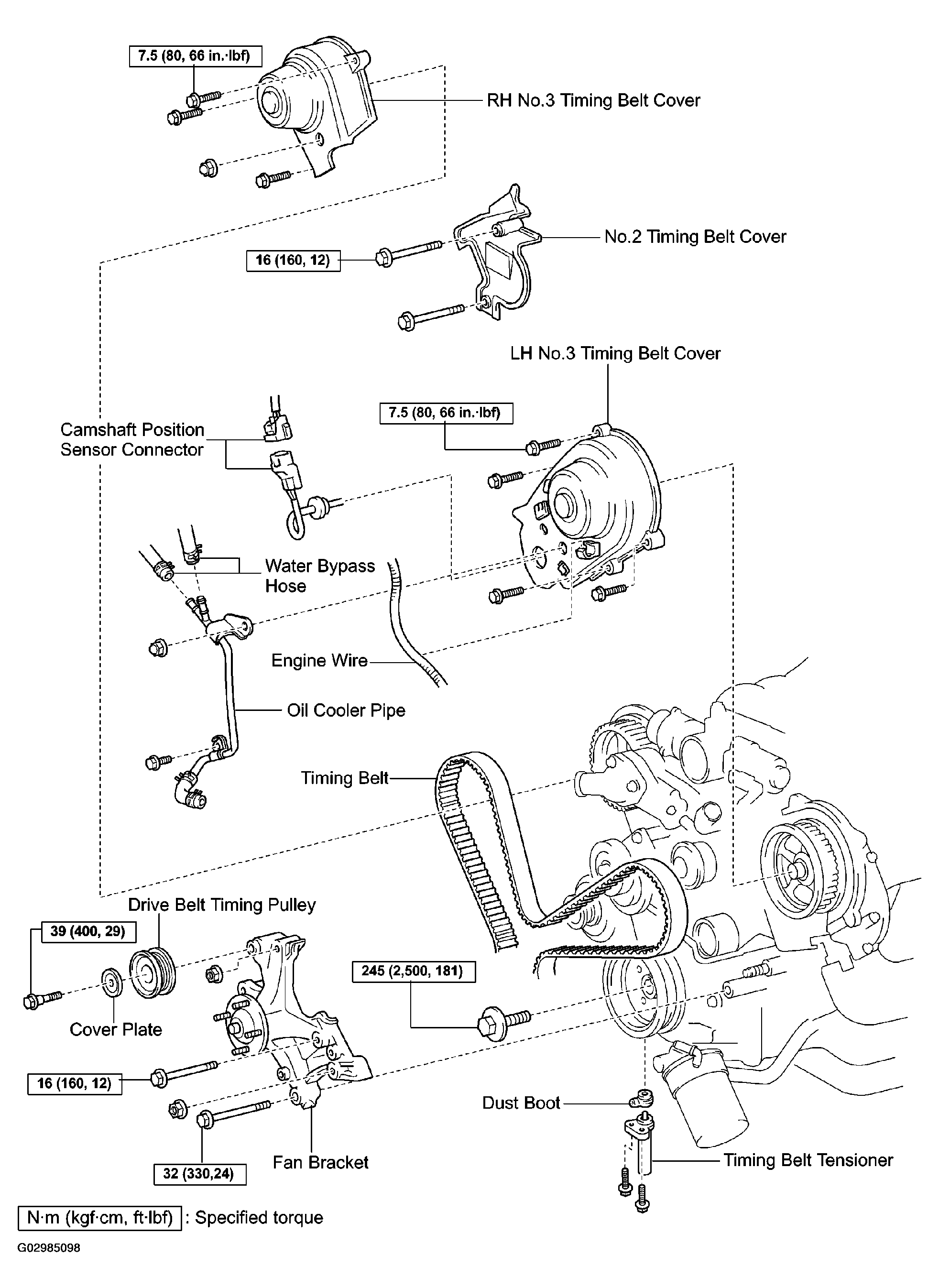

Fig 2: Exploded View Of Water Pump Components (2 Of 3)
G02985098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

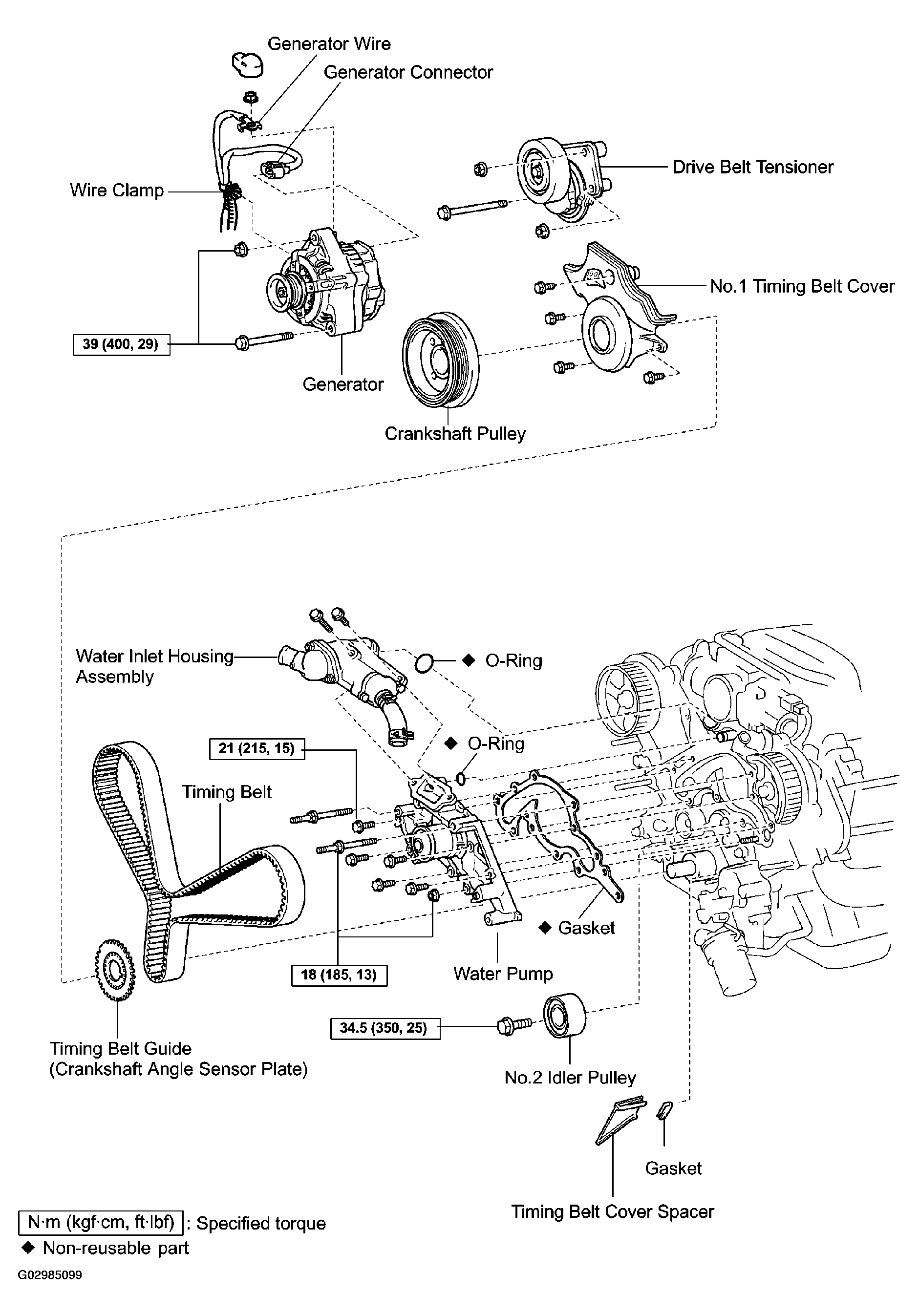

Fig 3: Exploded View Of Water Pump Components (3 Of 3)
G02985099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
