Cooling System (Mechanical): Cooling: Radiator: Components

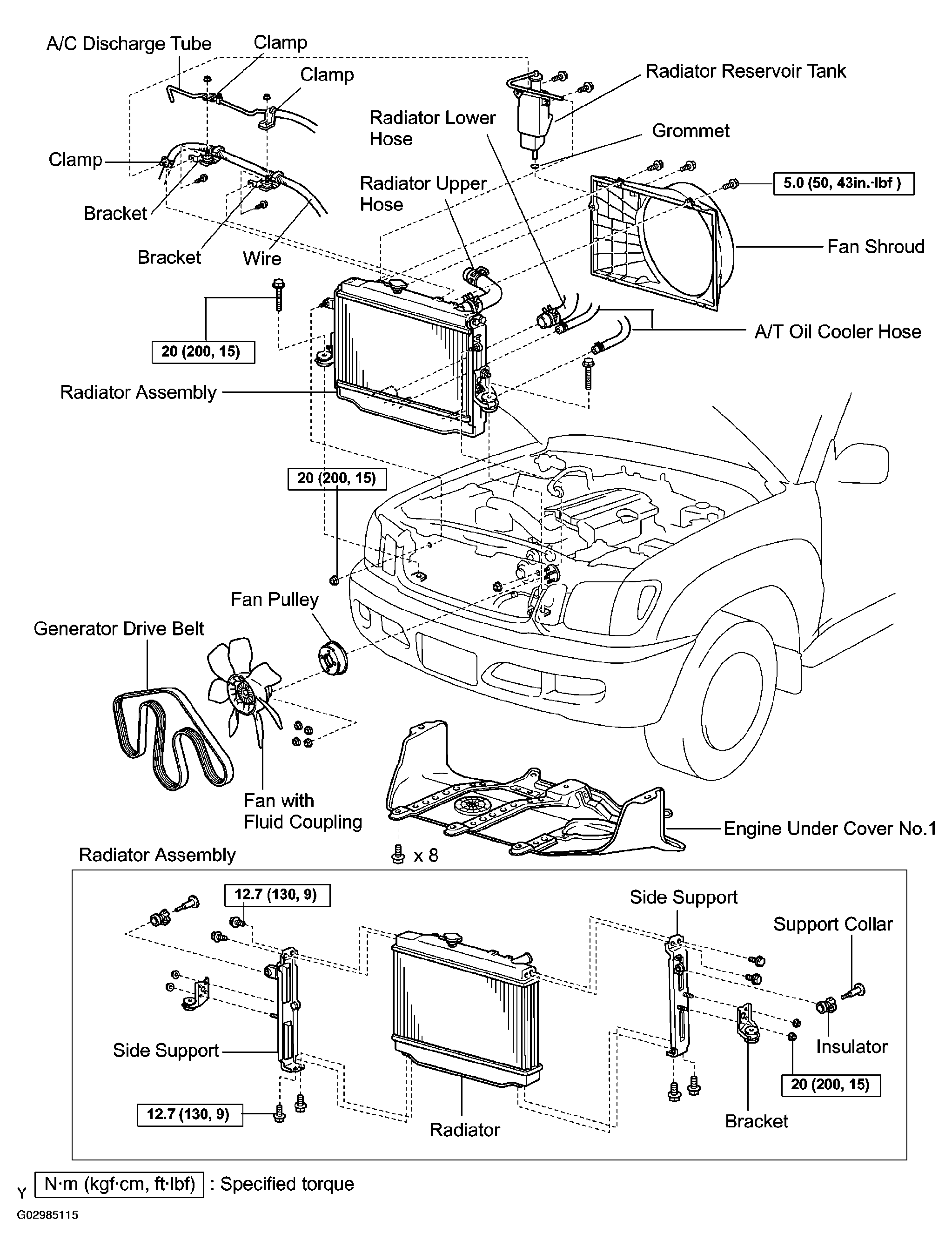

Fig 1: Exploded View Of Radiator Components

G02985115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
