Parts Layout And Schematic Drawing: Location

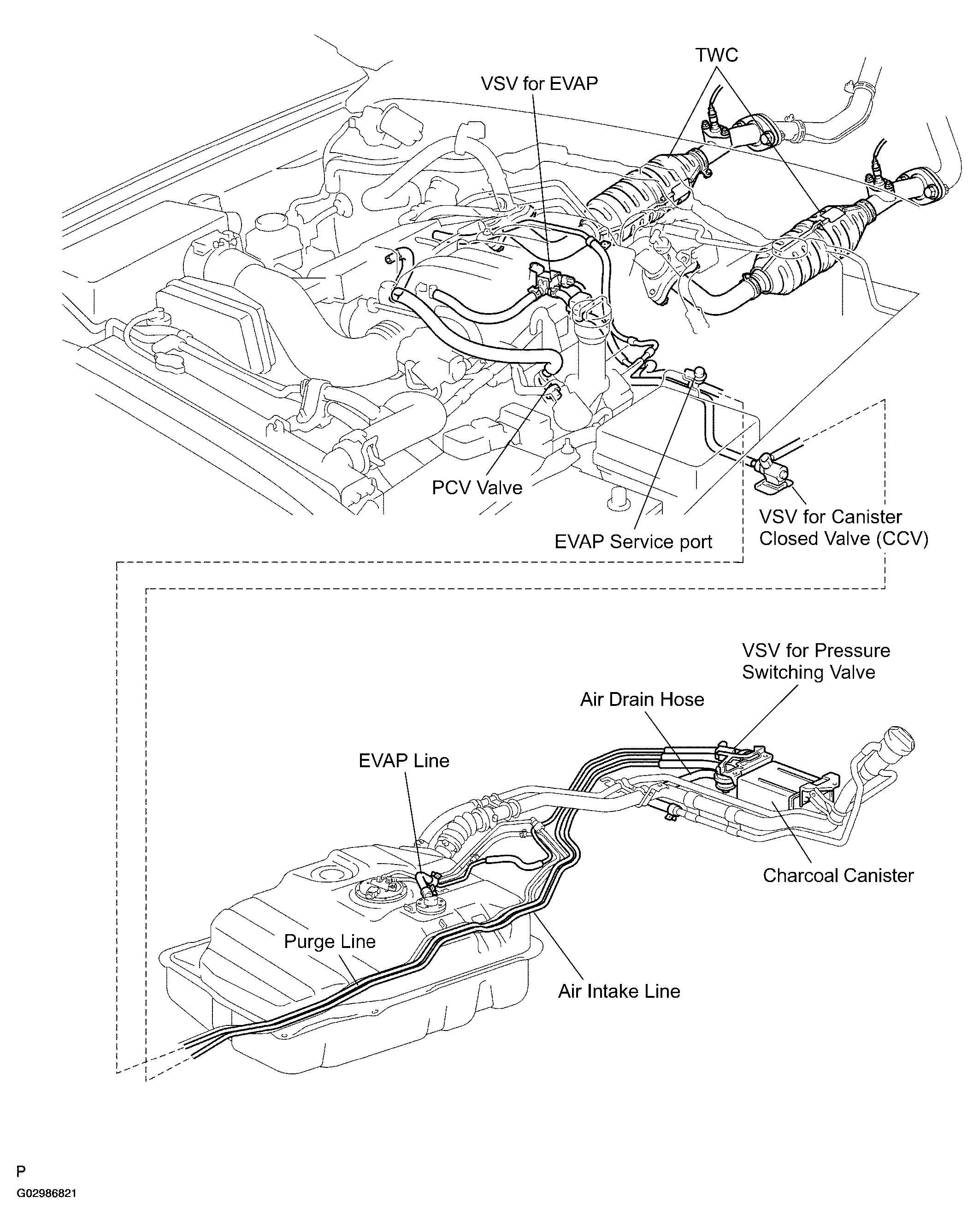

Fig 1: Identifying Emission Control Component Location

G02986821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
