Customer Problem Analysis Check
Customer Problem Analysis Check

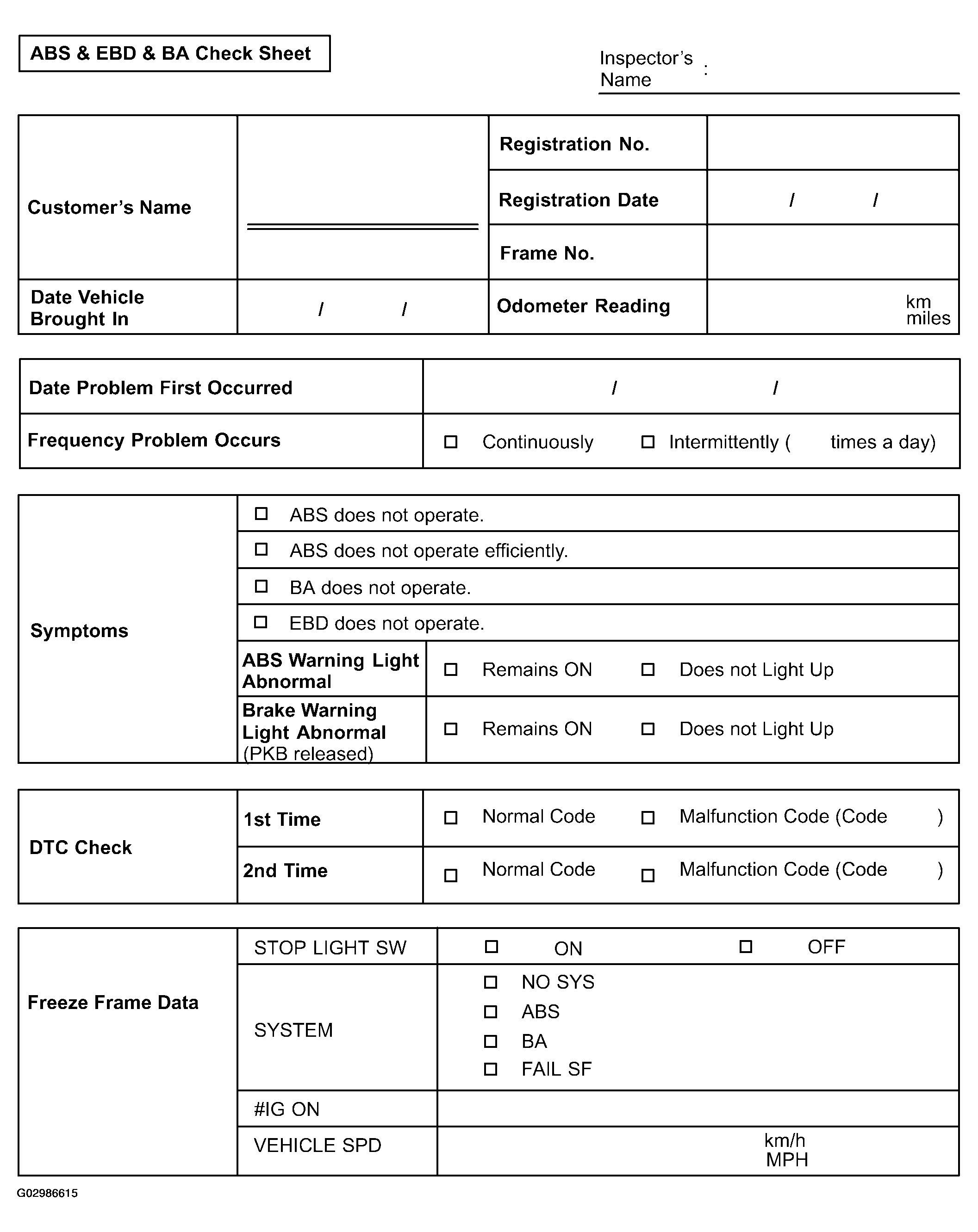

Fig 1: Customer Problem Analysis Check Sheet (ABS, EBD & BA)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

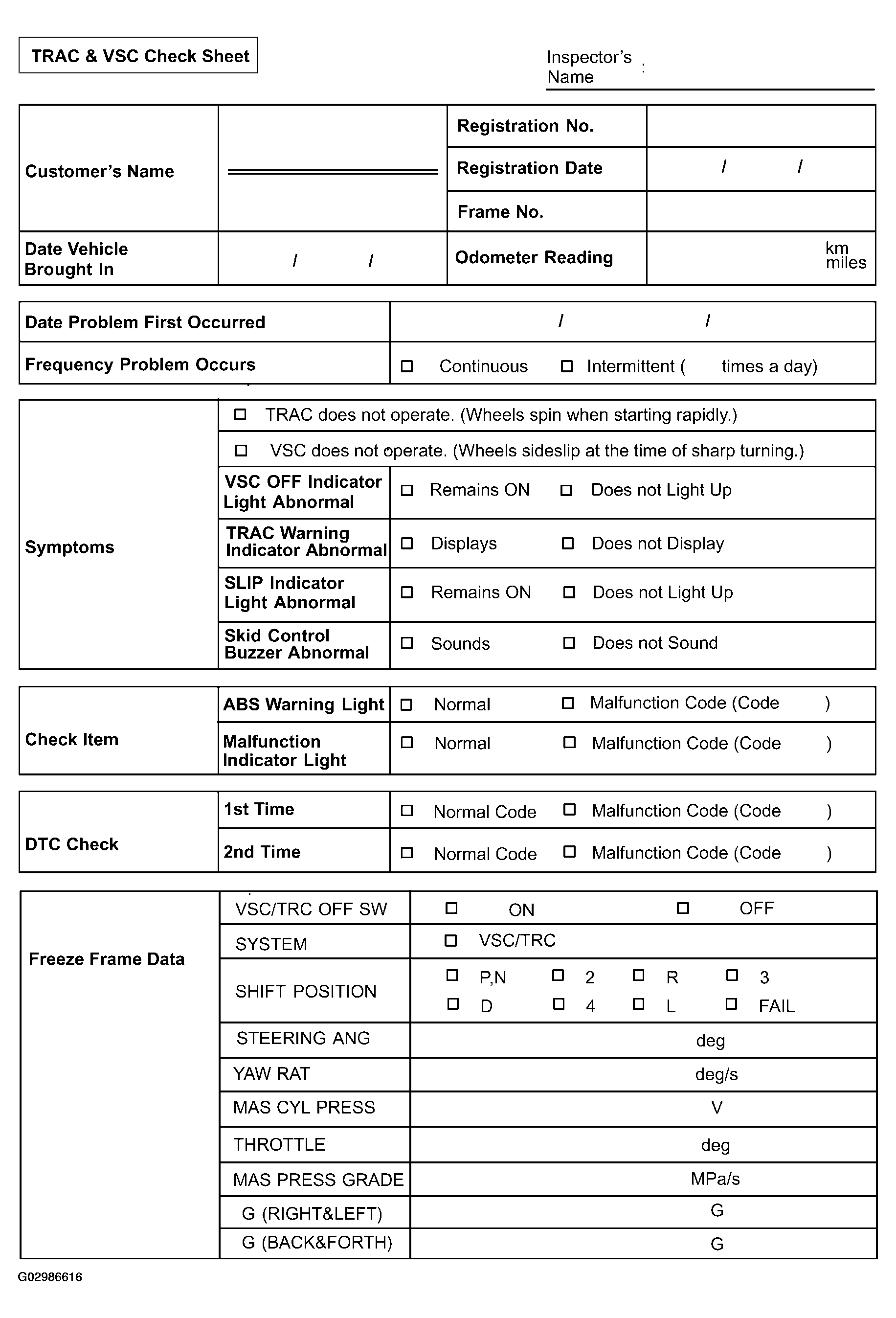

Fig 2: Customer Problem Analysis Check Sheet (TRAC & VSC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
