Power Seat Control System: Location

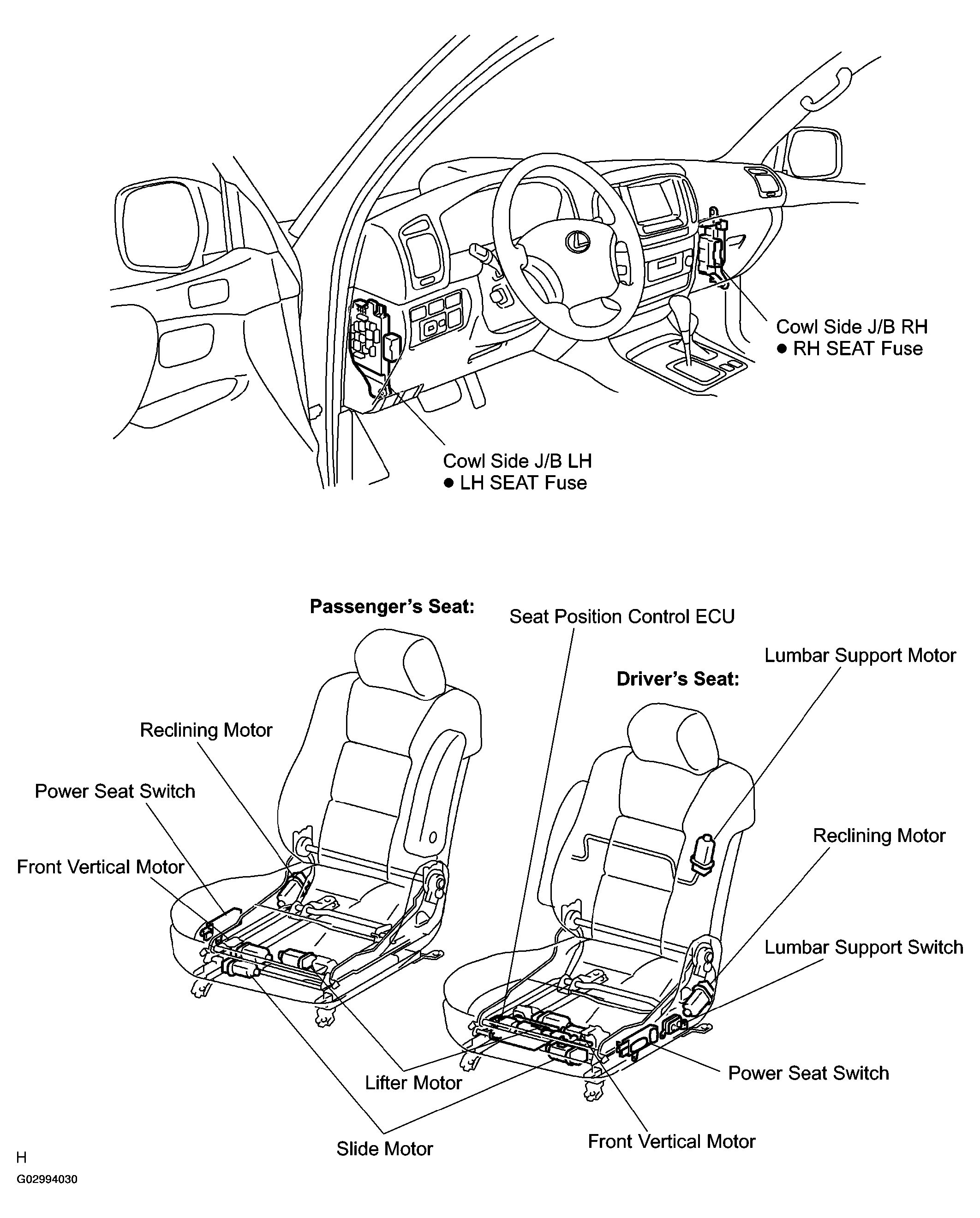

Fig 1: Identifying Component Location Of Power Seat Control System

G02994030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
