Terminals Of Ecu

POWER SEAT CONTROL ECU

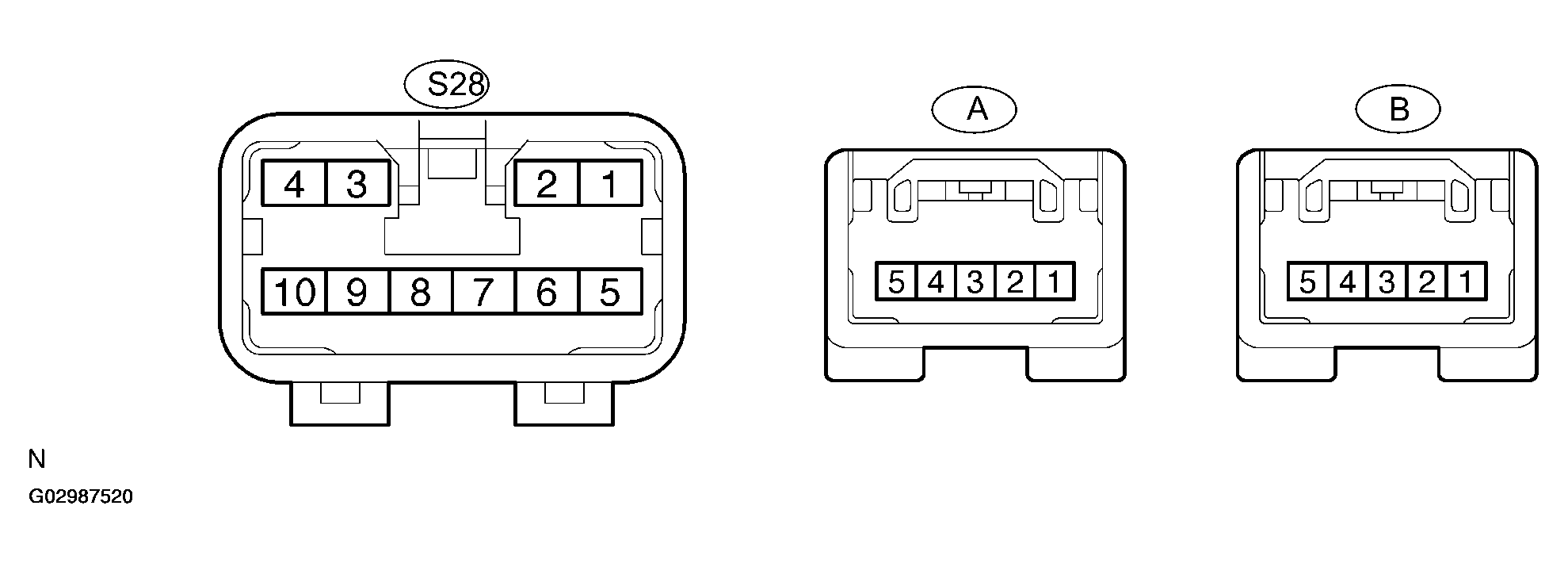

Fig 1: Identifying Connector Terminals Power Seat Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

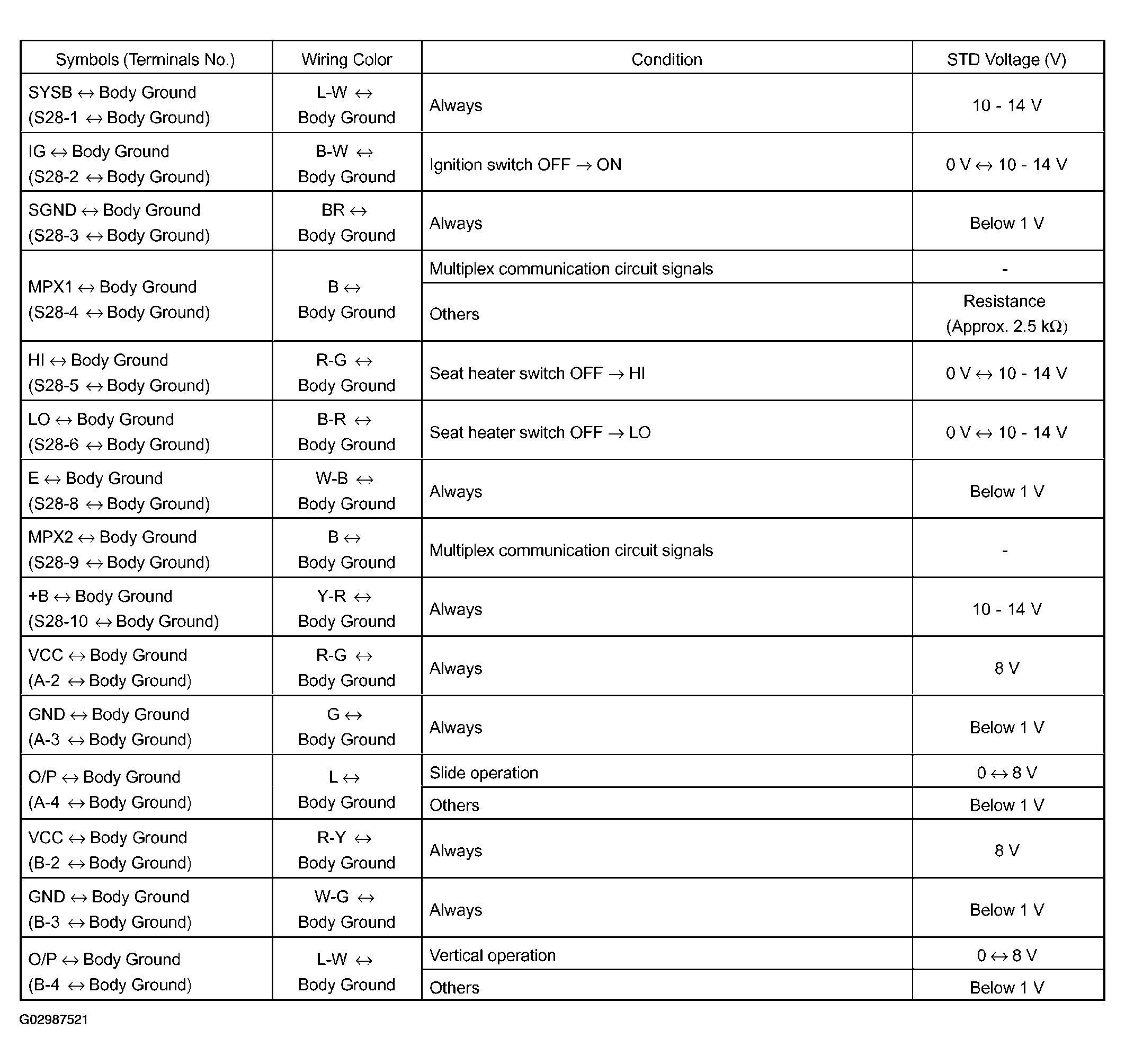

Fig 2: Voltage Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S POWER SEAT CONTROL SWITCH

Fig 3: Identifying Connector Terminals Driver'S Power Seat Control Switch

VOLTAGE CONDITION

Symbols (Terminals No.)	Wiring Color	Condition	STD Voltage (V)
GND --> Body GND (C-1 --> Body GND)	BR--> Body ground	Always	Below 1 V
FS --> Body GND (C-3 --> Body GND)	R-L --> Body ground	Always	10-14V
PSW --> Body GND (C-5 --> Body GND)	B--> Body ground	Always	10 - 14V
