Position Sensor Power Source Circuit: Wiring Diagram

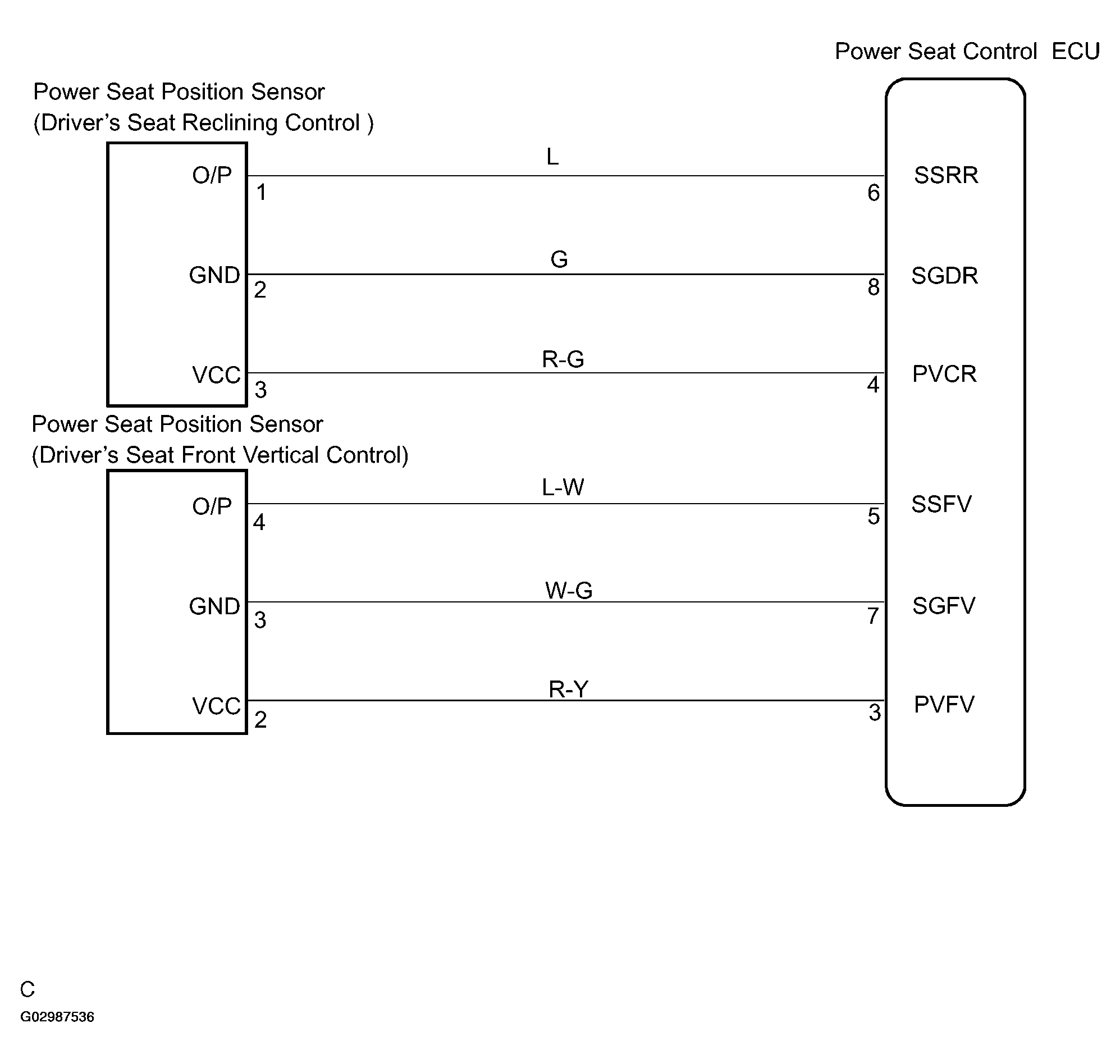

Fig 1: Wiring Diagram - Position Sensor Circuits

G02987536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
