Customize Check Sheet

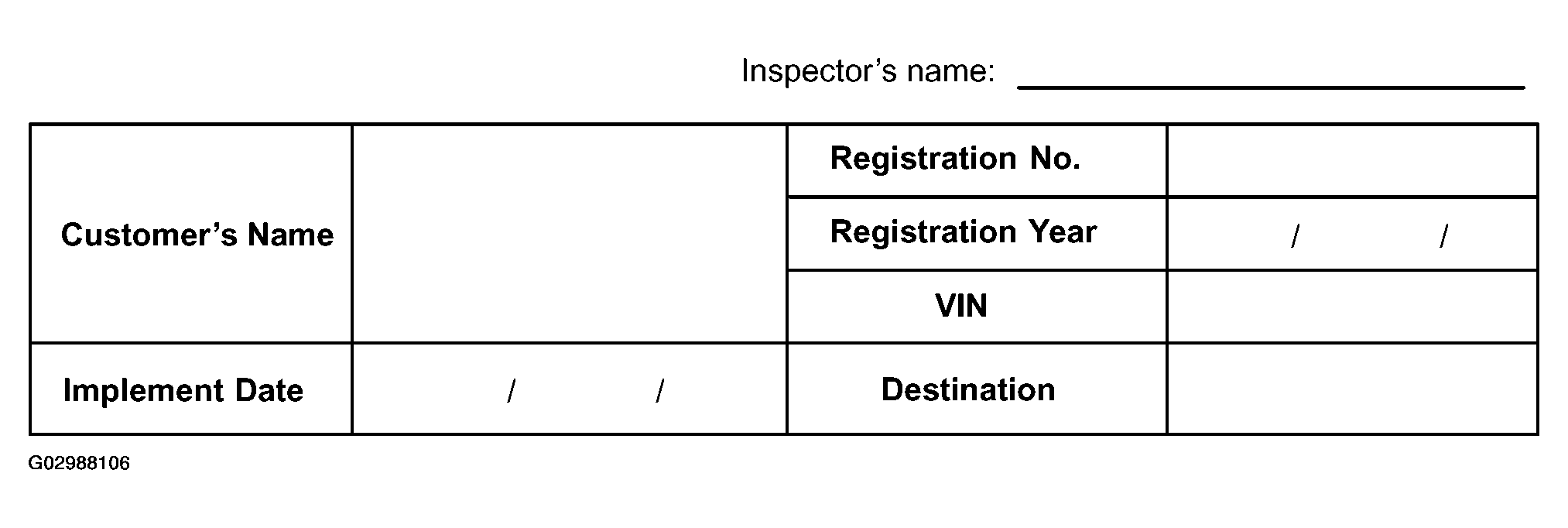

Before doing customize service, please check the current value of the customer's vehicle and fill in it on the check sheet.
WIRELESS DOOR LOCK
CUSTOMIZE FUNCTION CHECK SHEET (WIRELESS DOOR LOCK)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| OPEN DOOR WARN | ON/OFF | ON/OFF | ON |
| WIRELESS BUZ VOL | OFF/ MIN / MID1 / MID2/MID3/MAX | OFF / MIN / MID1 /MID2/MID3 /MAX | MID2 |
| WIRELESS OPER | ON/OFF | ON/OFF | ON |
| ALARM FUNCTION | ON/OFF | ON/OFF | ON |
| UNLOCK / 2OPER | ON/OFF | ON/OFF | ON |
| AUTO LOCK DELAY | 30 s / 60 s | 30 s / 60 s | 30 s |
| HAZARD ANS BACK | ON/OFF | ON/OFF | ON |
DOOR LOCK
CUSTOMIZE FUNCTION CHECK SHEET (DOOR LOCK)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| UNLOCK/PARK (#) | ON/OFF | ON/OFF | OFF |
| ALL UNLK / OPN-CL (#) | ON/OFF | ON/OFF | OFF |
| UNLK / KEY TWICE | ON/OFF | ON/OFF | ON |
| AUTO LOCK | ON/OFF | ON/OFF | OFF |
| AUTO LOCK/SHIFT | ON/OFF | ON/OFF | ON |
SECURITY
CUSTOMIZE FUNCTION CHECK SHEET (SECURITY)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| PASSIVE MODE (#) | ON/OFF | ON/OFF | OFF |
| WARNING(HORN) (#) | ON/OFF | ON/OFF | ON |
| ENTRY DELAY (#) | 0 s/ 14 s/ | 30 s 0 s/ 14 s/ | 30 s 14 s |
| WARN BY GLS SEN (#) | ON/OFF | ON/OFF | ON |
| INTRUSION SEN (#) | ON/OFF | ON/OFF | ON |
POWER WINDOW
CUSTOMIZE FUNCTION CHECK SHEET (POWER WINDOW)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| UP / DOOR KEY | ON/OFF | ON/OFF | ON |
| DOWN / DOOR KEY | ON/OFF | ON/OFF | ON |
| DOWN / WIRELESS | ON/OFF | ON/OFF | ON |
WIPER
CUSTOMIZE FUNCTION CHECK SHEET (WIPER)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| R-LINKED WIPER | ON/OFF | ON/OFF | ON |
| SPEED MODE | ON/OFF | ON/OFF | ON |
| AUTO WIPE (#) | ON/OFF | ON/OFF | ON |
| REWIPE CONTROL | OFF / 3s /SPDMOD | OFF / 3s /SPD MOD | SPD MOD |
ILLUMINATED ENTRY
CUSTOMIZE FUNCTION CHECK SHEET (ILLUMINATED ENTRY)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| LIGHTING TIME | 7.5 s/ 15 s / 30 s | 7.5 s/ 15 s / 30 s | 15 s |
| ILLUMI SYSTEM | ON/OFF | ON/OFF | ON |
| LIGHT CONTROL | ON/OFF | ON/OFF | ON |
| I/L ON UNLOCK | ON/OFF | ON/OFF | ON |
| I/L ON/ACC OFF | ON/OFF | ON/OFF | ON |
LIGHT CONTROL
CUSTOMIZE FUNCTION CHECK SHEET (LIGHT CONTROL)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| DISP EX ON SEN (#) | DARK2 / DARK1 /NORMAL | / LIGHT1 / LIGHT2 DARK2 / DARK2 / DARK1 /NORMAL / LIGHT1 / LIGHT2 | NORMAL |
| DISP EX OFF SEN(#) | DARK2 / DARK1 /NORMAL | / LIGHT1 / LIGHT2 DARK2 /DARK1 /NORMAL / LIGHT1 / LIGHT2 | NORMAL |
| SENSITIVITY DARK2 / DARK1 /NORMAL | LIGHT1 / LIGHT2 DARK2 / DARK1 / NORMAL | LIGHT1 / LIGHT2 | NORMAL |
| LIGHT OFF DELAY | OFF / 30 s /60 s / 90 s | OFF / 30 s /60 s / 90 s | 30 s |
| DRL FUNCTION (#) (USA ONLY) | ON/OFF | ON/OFF | ON |
TILT & TELESCO
CUSTOMIZE FUNCTION CHECK SHEET (TILT & TELESCO)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| AUTO TILT AWAY (#) | ON/OFF | ON/OFF | ON |
SLIDE ROOF
CUSTOMIZE FUNCTION CHECK SHEET (SLIDE ROOF)
| ITEM | BEFORE | AFTER | DEFAULT |
|---|---|---|---|
| OPEN / DOOR KEY | ON/OFF | ON/OFF | ON |
| CLOSE / DOOR KEY | ON/OFF | ON/OFF | ON |
| OPEN / WIRELESS | ON/OFF | ON/OFF | ON |
| DOOR KEY OPER | SLIDE / TILT | SLIDE / TILT | SLIDE |
| WIRELESS OPER | SLIDE / TILT | SLIDE / TILT | SLIDE |
